What is DHCP? Its Relay Agent, DORA Process and Server Configuration Explained!

Last Updated : August 10, 2022
dhcp

DHCP stands for Dynamic Host Configuration Protocol. It is an extremely useful protocol as, without it, it becomes necessary to manually assign IP addresses for new computers and computers that are transferred from one subnet to another. So, let's learn what is DHCP and what are DHCP Relay agents, and what DHCP DORA Process is.

  • Do you know that to connect to a TCP/IP-based network and use its resources, each device needs a distinct unicast IP address?

The DHCP protocol automatically provides this unicast IP address to each device.

What is DHCP?

Dynamic Host Configuration Protocol (DHCP) is an application layer protocol that allows a server to dynamically assign IP addresses & more information to hosts connected to LAN.

  • IP Address
  • Subnet Mask
  • Default-Gateway
  • DNS-Server

DHCP is based on a client-server model and works on the discovery, offer, request, and Acknowledgement. DHCP uses the port number for:

  • DHCP Server uses Port No. 68
  • DHCP Client uses Port No. 67

It employs UDP services and is a client-server protocol, and a pool of addresses is used to assign IP addresses. In DHCP, the client and the server exchange mainly 4 DHCP messages in order to make a connection, also called the DHCP DORA process.

DHCP DORA Process

DORA stands for Discover, Offer, Request, Acknowledge. DHCP uses Dora Process to provide an IP Address to hosts or client machines. It collects all of the IP addresses from the central server that are accessible and gives them to hosts that want to connect to the network.

DHCP

1. Discover

When you select the option "Obtain IP automatically," it means that a DHCP client is requesting IP to the DHCP server, and this discover request is sent out in the form of a broadcast request using 255.255.255.255 This request will reach every device in the network including DHCP server too.

Header info of discovery message –

  • Source IP address: 0.0.0.0
  • Destination IP address: 255.255.255.255
  • Source MAC address: MAC address of DHCP clients
  • Destination MAC address: FF:FF:FF:FF:FF:FF

2. Offer

Once the DHCP accepts the discover request sent by the client. The DHCP will offer some IP to the client.

Header info of offer message –

  • Source IP address: IP of DHCP Server Destination
  • IP address: 255.255.255.255
  • Source MAC address: DHCP Server's MAC address
  • Destination MAC address: MAC add of DHCP clients

3. Request

The client will select the IP address accordingly and request to the DHCP server that "I want to use this IP". So, the client will send a request to use the specific selected IP.

Header info of request message –

  • Source IP address: 0.0.0.0
  • Destination IP address: 255.255.255.255
  • Source MAC address: MAC add of DHCP clients
  • Destination MAC address: MAC add of DHCP server

4. Acknowledge

The DHCP server will receive the request sent by the client machine and then acknowledge the requested IP.

Header info of acknowledge message –

  • Source IP address: IP Address of DHCP Server
  • Destination IP address: 255.255.255.255
  • Source MAC address: MAC address of DHCP server
  • Destination MAC address: MAC add of DHCP clients
Discover Via Client using port no. 67
Offer Via server using port no. 68
Request Via Client using port no. 67
Acknowledge Via server using port no. 68

Important DHCP Terms

  • Scope – all the IP Addresses which DHCP provides comes under the scope.
  • Lease – for how much time your DHCP will lease the IP to the client.
  • Exclusion – to exclude IP Addresses.
  • Reservation – to reserve IP Addresses for the machine.

DHCP Server Deployment:

We can deploy the DHCP server in two ways:

  • Centralized – Single DHCP for all networks (For this, we need to configure DHCP Relay Agent).
  • Decentralized – Separate DHCP for every network.

Because whenever we configure multiple DHCP servers on one router, we have to make another router act as DHCP Relay Agent. This is only possible in the centralized deployment of DHCP because in decentralized, you always have to configure separate DHCPs for separate networks or routers.

DHCP Relay Agent

A host or router that relays DHCP packets between clients and servers is known as a DHCP relay agent. The SD-WAN equipment' DHCP Relay feature allows network managers to relay communications between nearby DHCP Clients and a distant DHCP Server.

Local hosts can obtain dynamic IP addresses from the distant DHCP Server thanks to it. After receiving DHCP messages, the relay agent creates a fresh message to broadcast on a different interface.

When creating a DHCP relay agent, you must let the R-2 know the IP of the DHCP server. You can tell any IP (R-1 or R-2) 10.0.0.1 or 10.0.0.2

So, then the router won't broadcast. It'll unicast to the LAN 192.168.2.1

And this is how it'll unicast

Source IP  Source Port   Port No. 68
Destination IP  Destination Port  Port No. 67

Like this

192.168.2.1  68  10.0.0.1  67
Source IP  Source Port  Destination IP  Destination Port

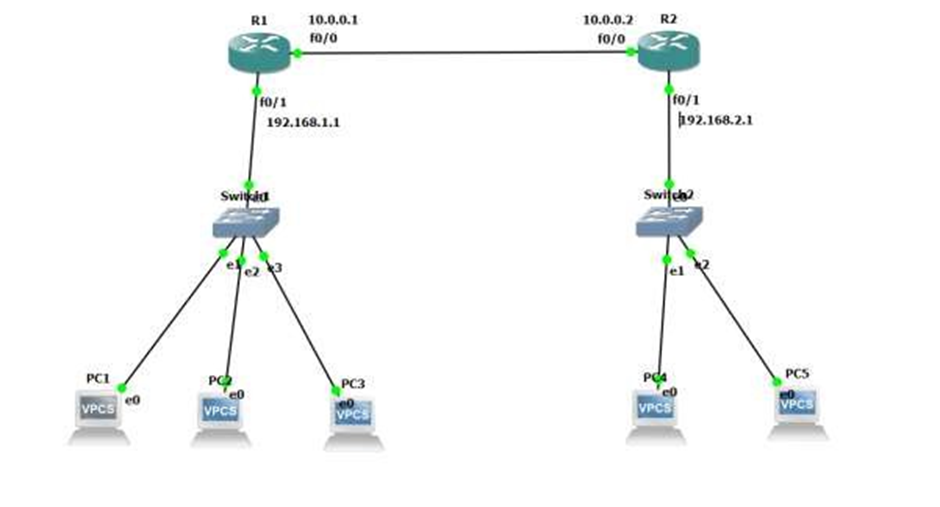

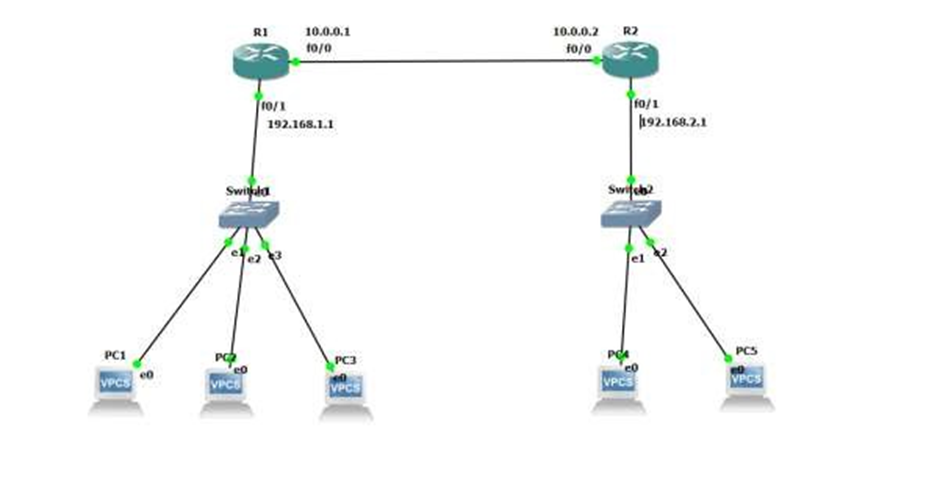

Let's configure DHCP Lab as per the given diagram.

DHCP

Open R-1 & follow these commands –

Step 1: First, provide the IP Address to interface Fa0/1 – 192.168.1.1

R1(config)#interface fa0/1

R1(config-if)#ip address 192.168.1.1 255.255.255.0

R1(config-if)#No shutdown

Step 2: Let's configure DHCP on R-1.

R1(config)#Service DHCP (To enable DHCP Service if it's disabled)

R1(config)#IP DHCP POOL PYNETLABS

R1(dhcp-config)#NETWORK 192.168.1.0 255.255.255.0

R1(dhcp-config)#DEFAULT-ROUTER 192.168.1.100

R1(dhcp-config)#DNS-SERVER 8.8.8.8

R1(dhcp-config)#DOMAIN-NAME PYNET.COM

R1(dhcp-config)#EXIT

R1(config)#IP DHCP EXCLUDED-ADDRESS 192.168.1.2 192.168.1.5

IP DHCP EXCLUDED ADDRESSIt refers to the exclusion on IP, which we don't want.

SERVICE DHCP – It's only used when DHCP Service is not enabled.

Now, let's verify DHCP with our connected nodes.

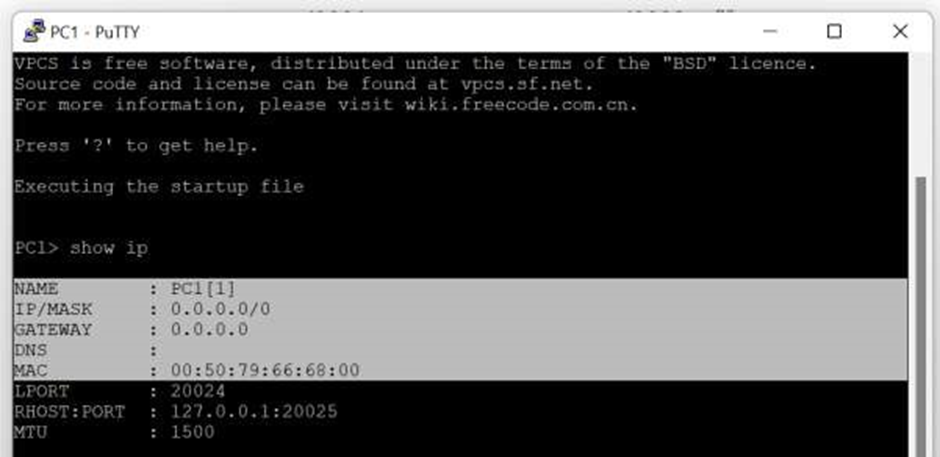

No IP has been assigned yet, so type DHCP on the node as we use GNS for this lab in packet tracer. You can directly click on obtain IP automatically.

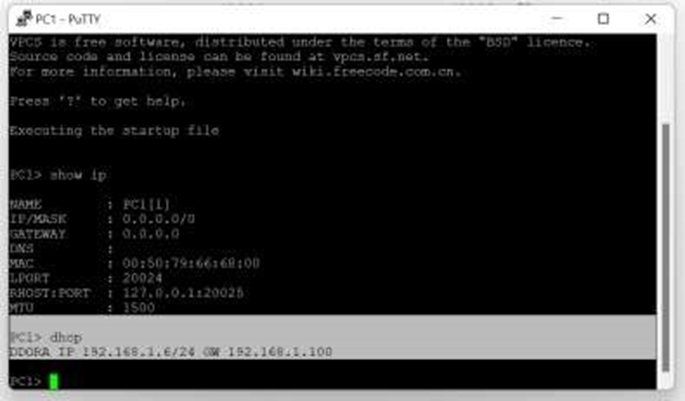

As we write DHCP & Press, enter DORA process will run, and these are the results we got.

To Verify DHCP on R-1, use these commands:

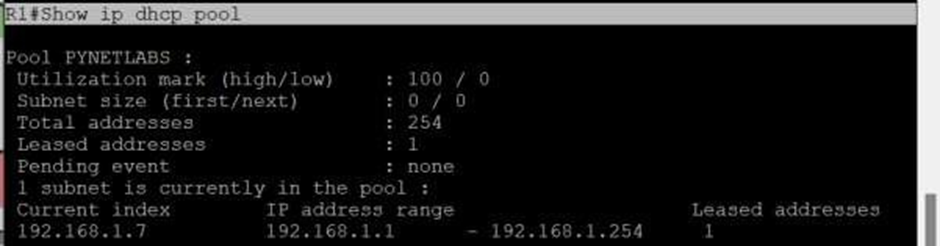

R1#Show ip dhcp pool

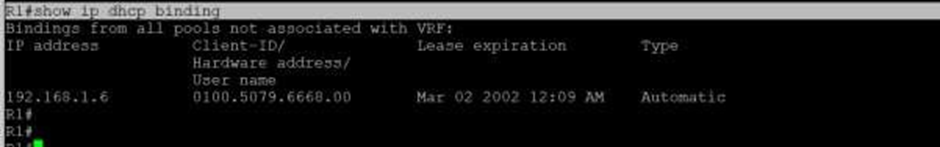

R1#show ip dhcp binding

If you want to renew IP on the host machine

PC- 1#ipconfig /release

PC- 1#ipconfig /renew

Now, we'll assign IP to FA0/0 as 10.0.0.1 & 10.0.0.2 and then we'll do static routing in both routers.

  • R1(config)#interface fa0/0
  • R1(config-if)#ip address 10.0.0.1 255.0.0.0
  • R1(config-if)#no shutdown
  • R1(config-if)#exit
  • R1(config)#ip route 192.168.2.0 255.255.255.0 11.0.0.2 (Static Routing)

Assign the same on R-2 now. Just configure only IP Addresses as of now.

  • R2#configure terminal
  • R2(config)#interface fa0/0
  • R2(config-if)#ip address 10.0.0.2 255.0.0.0
  • R2(config-if)#no shutdown R2(config-if)#exit
  • R2(config)#interface fa0/1
  • R2(config-if)#ip address 192.168.2.1 255.255.255.0
  • R2(config-if)#no shutdown
  • R2(config-if)#exit
  • R2(config)#ip route 192.168.1.0 255.255.255.0 10.0.0.1 (Static route for R1)

Now what we must understand is that to assign IPs on Network 192.168.2.0 we have to create a DHCP Relay Agent.

So, now we must again go on R-1 and configure DHCP for R-2.

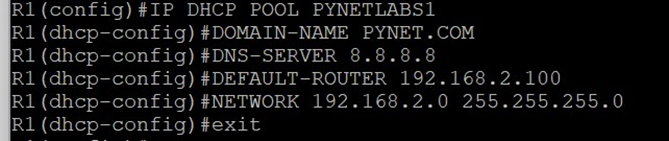

Let's configure DHCP on R-1

  • R1(config)#Service DHCP (To enable DHCP Service if it's disabled)
  • R1(config)#IP DHCP POOL PYNETLABS 1
  • R1(dhcp-config)#NETWORK 192.168.2.0 255.255.255.0
  • R1(dhcp-config)#DEFAULT-ROUTER 192.168.2.100
  • R1(dhcp-config)#DNS-SERVER 8.8.8.8
  • R1(dhcp-config)#DOMAIN-NAME PYNETLABS.COM
  • R1(dhcp-config)#EXIT

R1(config)#IP DHCP EXCLUDED-ADDRESS 192.168.2.2 192.168.2.5

Now, let's make R-2 the DHCP Relay-Agent.

R2(config)#int fa0/1

R2(config-if)#ip helper-address 10.0.0.1

And we are done here, so that's what is known as your DHCP Relay Agent as a centralized server deployment.

And now you can see the R-2 is getting the DHCP IP Addresses from the R-1, and that's what the concept of Relay Agent is.

If you are still with us, we are sure you have understood everything about DHCP and how it works. We hope you like it; please share your valuable feedback in the comment box below. If you like this blog, it would be better to subscribe to our free newsletter to never miss out on any new blogs. To help you understand DHCP better, here is the video for you to watch.

Here are some FAQs related to DHCP:

Question 1 – What is DHCP and why it is used?

Answer – DHCP (Dynamic Host Configuration Protocol) is an application layer protocol that allows a server to dynamically assign IP addresses & more information to hosts connected to LAN. It is used to acquire configuration information like DNS Server Addresses, IP Addresses, and a default route.

Question 2 – What does DHCP and DNS do?

Answer - When a device connects to a network, the Dynamic Host Configuration Protocol (DHCP) automatically assigns IP addresses and other parameters to the device. In contrast, an Internet service called the Domain Name System (DNS) converts domain names into IP addresses.

Question 3 – Is DHCP same as IP address?

Answer – IP Address is a combination of numbers used to verify each device connected to the network. In contrast, a DHCP is used to assign IP addresses to various devices joining the network automatically.

Question 4 – What are the 4 steps of DHCP?

Answer – DHCP works on the DORA Process, so the 4 steps of DHCP are: Discover, Offer, Request, and Acknowledge. It gathers all the available IP Addresses from the centralized server and provides those to hosts who want to connect to the network.
