Introduction
Multiplexing allows multiple users to share the same physical communication medium while simultaneously improving the efficient use of available bandwidth. Multiplexing is essential to networking, as it enables connecting large numbers of users (e.g., a city) without physically running a cable from each home to its service provider’s central office. Additionally, consider the construction costs if you have numerous connections (e.g., voice calls), and how much those costs would increase if you added a separate cable for each connection. Multiplexing reduces all these costs and allows for a lower cost per user.
In this blog, we will discuss multiplexing in computer network along with its purpose and different types.
Learning Computer Networks or Preparing for CCNA?
Understanding concepts like multiplexing is a key foundation for networking, data centers, and cloud technologies.
Before getting into more details, let us first understand the most basic question: “What is multiplexing?”
What is multiplexing?
Multiplexing is a technique for sending multiple signals or data streams over a single communication channel. It improves efficiency by letting many users or applications share the same link without needing separate physical connections.
- The device that combines signals is called a multiplexer (MUX).
- The device that separates them again is called a demultiplexer (DEMUX).
If you want a simple way to remember it:
- MUX packs multiple streams into one.
- DEMUX unpacks a single stream into many.
Why is Multiplexing Needed?
In networking and communication, we always care about efficiency. A communication channel is expensive. It may be:
- An undersea fiber cable
- A microwave link between towers
- A satellite transponder
- A leased line for an office
- A mobile frequency band paid for by telecom companies
If you dedicate one full channel to one person, most of the time it remains underused because real traffic is not constant. You might download a file for 30 seconds, and then do nothing for 2 minutes. You might browse a website for 10 seconds, then watch a video, then pause. If the channel is reserved just for you during the idle time, it’s wasted. Multiplexing avoids that waste by allowing sharing.
How Does Multiplexing in Computer Network Work?
Below, we discuss the operation of multiplexing in computer network.
- Many users or apps want to send data at the same time.
- A shared link is limited. It may be fiber, cable, or radio.
- A multiplexer (MUX) sits at the sender side.
- The MUX takes multiple input streams and merges them into a single output stream.
- It keeps each stream identifiable, so they don’t mix up.
- It may separate them by time (each gets a turn), by frequency/wavelength (each gets its own band or color of light) or by code (each uses a unique pattern).
- The combined signal travels over the shared medium as one flow.
- At the other end, a demultiplexer (DEMUX) receives it.
- The DEMUX splits the signal back into the original streams.
- Each stream goes to the right user, device, or application.
- This saves cost and uses the link more fully.
If you’re learning networking seriously, it helps to know what these fundamentals lead to in real careers.
If you’re unsure which networking path (CCNA, network engineering, automation, data center, etc.) fits you, you can get a free career consultation on WhatsApp.
Types of Multiplexing
There are multiple ways to share a channel. Each method separates users/signals differently.
- FDM: split by frequency
- TDM: split by time
- WDM: split by light wavelength (fiber)
- CDM: split by code
- SDM: split by space (multiple antennas/fibers)
- Statistical: shared dynamically by packets
- OFDM: split into orthogonal subcarriers (wireless)
1. Frequency Division Multiplexing (FDM)
FDM shares a channel by splitting it into different frequency ranges. Each signal gets its own frequency band. So instead of everyone talking at the same frequency, each person talks in a slightly different frequency lane.
Where FDM is used
- FM/AM radio
- Cable TV channels
- Some older telecom systems
Why it’s useful
It allows continuous transmission. Each signal can exist all the time.
The downside
To prevent overlap, systems keep guard bands (empty gaps between channels). That’s wasted capacity. Also, interference becomes a real issue if signals bleed.
So FDM is great at broadcasting. But it’s not always the most efficient choice for modern bursty internet traffic.

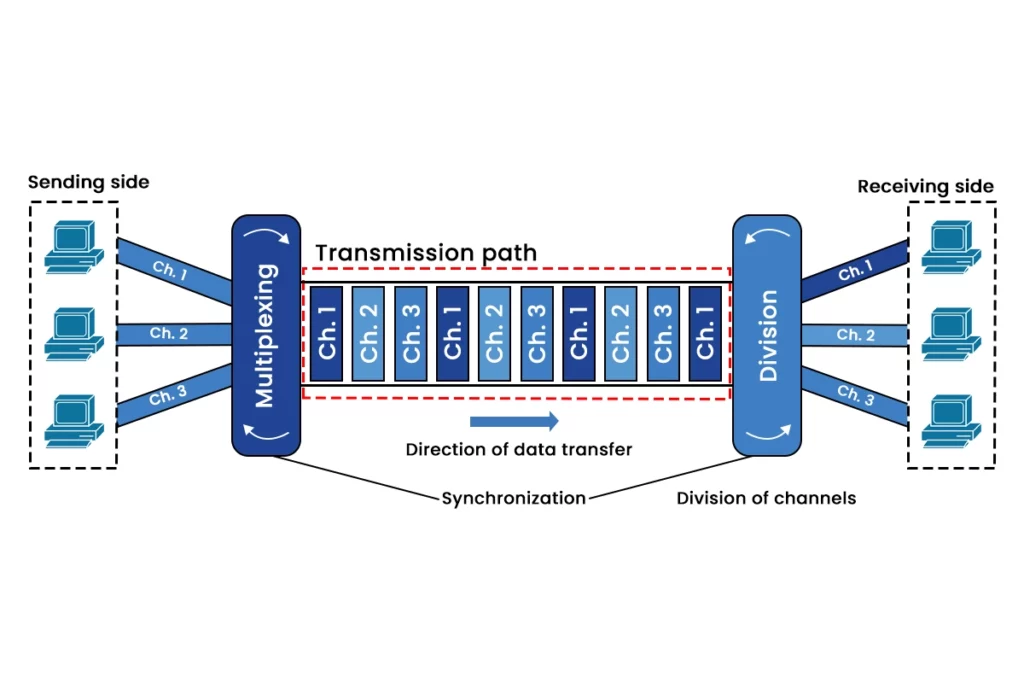

2. Time Division Multiplexing (TDM)
TDM shares a channel by splitting it into time slots. Instead of giving each signal a different frequency, you give each one a turn in time. So, everyone uses the same frequency and channel, but at different times.
Think of a classroom
One microphone is there.
- Student A speaks for 5 seconds
- Student B speaks for 5 seconds
- Student C speaks for 5 seconds
Then it repeats.
Two types of TDM
- Synchronous TDM
- Statistical TDM (asynchronous TDM)
Where TDM is used
- Traditional telephone trunks (like T1/E1)
- Some satellite and microwave systems
- Certain enterprise links and legacy systems

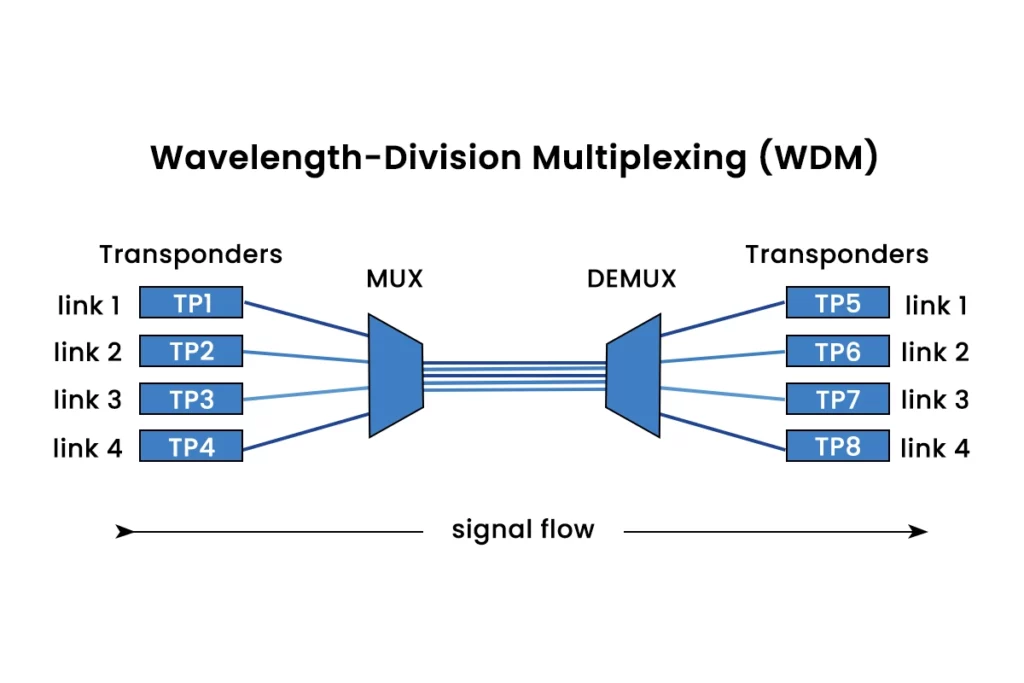

3. Wavelength Division Multiplexing (WDM)
WDM is basically FDM, but for light. In fiber, data is carried as light. WDM uses different wavelengths (colors) of light to carry separate data streams through the same fiber.
Types of WDM
CWDM (Coarse WDM)
- Fewer channels
- Wider spacing
- Cheaper hardware
DWDM (Dense WDM)
- Many channels
- Very tight spacing
- Huge capacity
- Used in backbone networks
Where WDM is used
- Internet backbone networks
- Submarine cables
- Data center interconnects
- Long-distance telecom
This is one of the biggest reasons the internet can handle enormous amounts of traffic today. You don’t need to lay new fiber for every increase. You increase capacity by lighting up more wavelengths.
Other multiplexing and Multiple-Access Techniques
OFDM (Orthogonal Frequency-Division Multiplexing)
OFDM is a digital multi-carrier modulation technique and a specialized form of Frequency-Division Multiplexing (FDM) where multiple orthogonal subcarriers are used to transmit data simultaneously. Unlike traditional FDM, OFDM’s subcarriers are mathematically orthogonal, allowing them to overlap in frequency without interference, which significantly improves spectral efficiency.
OFDM is used in:
- Wi-Fi
- 4G LTE
- 5G (with variations like OFDMA)
It divides the channel into many small subcarriers. These subcarriers are orthogonal, meaning they don’t interfere in the usual way. OFDM is popular because wireless environments are messy:
- reflections from buildings
- multipath signals
- interference
OFDM handles these conditions better than older systems.
Code Division Multiplexing (CDM / CDMA)
CDM takes a different approach.
Here, all users share:
- the same time
- the same frequency range
Each signal spans a wide bandwidth, and the receiver uses the matching code to extract the desired signal while treating the others as noise. This enables simultaneous transmission with good resistance to interference and multipath fading.
Where it is used
- 3G mobile networks (CDMA-based)
- GPS satellite signals
- Some military/secure communication systems
Why it’s useful
- Works well when many users need access
- Resistant to certain kinds of interference
- No strict time slot scheduling needed
The downside
- More complex to implement
- Needs strong power control (especially in mobile)
- Capacity decreases as the number of users increases due to interference
Space Division Multiplexing (SDM)
SDM separates signals using different physical paths, such as different antennas, separate fibre cores, or different light propagation modes, rather than dividing resources by time (TDM) or frequency (FDM), so multiple transmissions can occur at the same time without interfering.
SDM separates signals using physical space. This can sound too simple, but it’s very real.
Examples
- Multiple pairs in a copper cable
- Multiple fibers in a fiber bundle
- Multiple antennas in wireless (MIMO)
The most crucial modern example is MIMO. MIMO uses multiple antennas to send multiple data streams simultaneously. That’s spatial multiplexing in action.
Where SDM is used
- Wi-Fi routers with multiple antennas
- 4G/5G networks
- Advanced wireless systems
Statistical Multiplexing (Packet Multiplexing)
If you want the most “internet-like” multiplexing type, this is it. Statistical multiplexing is how packet networks share a link. Instead of fixed frequency bands or fixed time slots, traffic is mixed as packets and sent as capacity becomes available.
Pros
- Very efficient for bursty traffic
- Fits perfectly with IP networks
- Scales very well
Cons
- Congestion can happen
- Latency and jitter can increase
- Needs queue management and QoS for real-time apps
Why it matters
It boosts capacity without needing extra spectrum, which is expensive and limited.
Frequently Asked Questions
Q1. What is multiplexing in networks?
Network multiplexing merges multiple voice or data streams into a single composite signal for transmission over shared fiber or radio and then demultiplexes them back into their original streams.
Q2. What is frequency division in multiplexing?
FDM, or Frequency Division Multiplexing, is a method of combining various types of information into a single channel by splitting a communications channel’s total bandwidth into several non-overlapping smaller frequency bands (subchannels).
Q3. How multiplexing works in computer networks?
Multiplexing is the process of combining multiple data signals from different sources into a single channel to enable more efficient use of available bandwidth.
Q4. What is time division in multiplexing?
Time Division Multiplexing is a method by which a single channel can carry many independent data signals using discrete, non-overlapping time intervals.
Conclusion
Multiplexing is what allows modern communications to work effectively by allowing multiple signals to use a single communications channel, thus allowing networks to be more cost-effective and scalable. FDM and TDM are classic multiplexing methods still used today, while WDM is their optical counterpart that massively increases fiber capacity. Once you understand the various types of multiplexing, it becomes much easier to understand how audio, video, and data flow seamlessly over shared media.
