Introduction
A modem is a device that helps connect a home or office network to the internet. Its job is to translate the provider’s connection into something local devices can use. That is why the name modem comes from modulator-demodulator. There are various Modem types today depending on the progress of technology and use case such as dial-up, DSL, cable, fiber optic and satellite modems with different dial-up speeds.
In this blog, you will learn about Modem and its types along with its purpose, components, and how to choose the right Modem. If you want hands-on training on networking devices like modems, routers, and switches, check out our CCNA training program where you learn real-world networking skills with lab practice.
Before getting into Modem and its types, let us first understand what Modem is and why it is important device in networking.
What is a Modem?
A modem, which stands for Modulator/Demodulator, is a critical networking device utilized to help make internet connections in which analog information is converted to digital and vice versa. It mainly works by acquiring analog signals that are normally received through telephone lines and transforming them into binary form, which is made up of 0 and 1, so that computers and other digital equipment may perform on it. On the other hand, the modem playback or modulates digital signals going over these lines into analog format.
This ability to modulate and demodulate is mainly responsible for efficient transmission over a multitude of networks.
There are many names given to it, the Modem has the duty of ensuring that all data which is to be transmitted or received is done so cleanly, not only this but the Modem plays a key role in improving the rate of digital data transfer from one gadget to the other. The technological developments have seen a whole range of types of modems with support for higher internet speeds with several protocols making the Internet experience much better.
Taken collectively, modems are critical components of digital communication paths, allowing users to both access and engage the web.
Features of Modem
- Modems modulate and demodulate signals simultaneously.
- They connect a limited number of devices to the Internet.
- Prices of modems vary based on features.
- Modems can be upgraded through specific software patches.
- Configuration with an Internet Service Provider (ISP) is required for Internet access.
- Connecting a modem to a hub may lead to slower performance.
But how exactly does a Modem work? Let’s look at some of the components of modems and how they work.

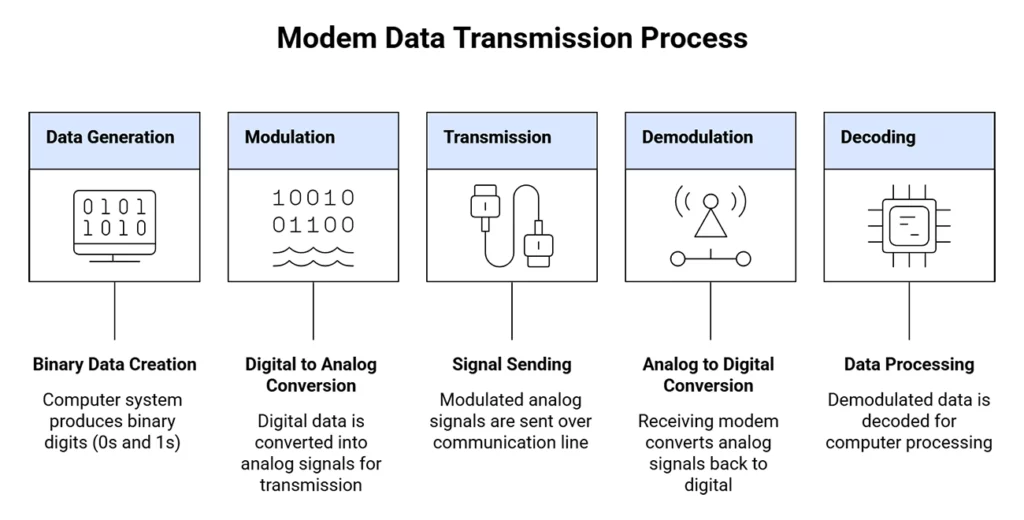

How Does a Modem Works?
Below, we have explained the working of modem and how data is transmitted via modems.
- Data Generation: The process begins at the end, where a computer system produces binary digits (0s and 1s) to decide whether it needs to send information.
- Modulation: The digital data is then converted into analog signals through modulation, which entails putting forward the digital data for Internet transmission on a wave known as the carrier wave.
- Transmission: These modulated analog signals are sent over a communication line to the other Modem of the receiving end.
- Demodulation: Making its way to the receiving Modem, these paths contain the same analog signals, which are demodulating back to the kinds of signals that computer systems accept – digital.
- Decoding: The last process performed by the chip is decoding the demodulated data so that the computer systems can process the remaining usable digital data.

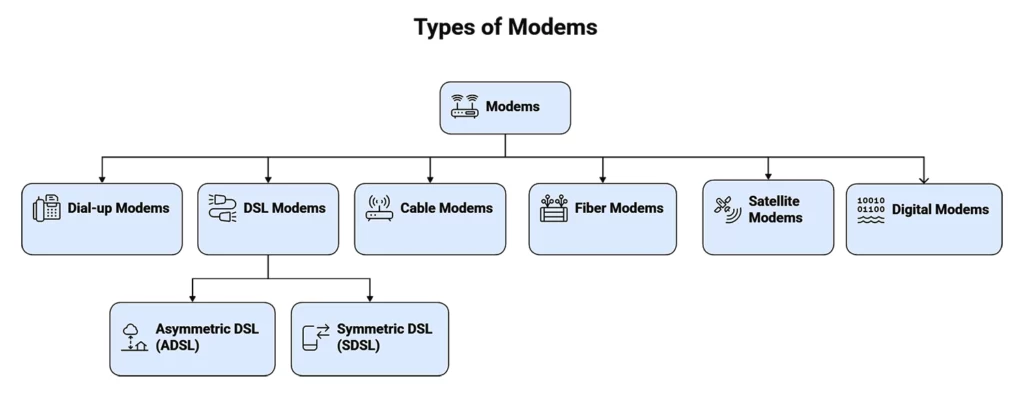

What are the Types of Modems?
Over time there have been technological developments that results in developing different types of modems with support for higher internet speeds. These modems support several protocols making the Internet experience much better.
Modem and its types have different features and provide different benefits. Below, we have discussed the different types of modems in detail.
1. Dial-up Modems
A dial-up modem is a piece of hardware used to convert digital information from a computer into an analog signal suitable for telephone lines and to convert analog signals back into digital information. It provides a means of data transfer by using standard phone connections for the computers. It is a modem that allows for the interconnection of the computer and telephone lines, hence providing passage for data transfer. It can transmit information at a rate of up to 56 Kbps (Kilobits per second).
2. DSL Modems
DSL, or Digital Subscriber Line, is a technology that allows high-speed internet connections using existing telephone lines. There are two primary types of DSL:
- Asymmetric DSL (ADSL): This type involves prioritizing download rates over upload rates; it is more favourable for common home users who download content rather than upload content, such as videos.
- Symmetric DSL (SDSL): In the same way, SDSL allows the same speed of both upstream and downstream data transmission, which is suitable for business needs or users who need a constant flow of data in both directions, such as video call connections or uploading massive files to the server.
DSL is a broadband technology that transmits data through the wiring of telephone lines. It is considerably cheaper to install than other high-speed choices like fibre optics, which require brand-new infrastructure. Altogether, a DSL modem is a realistic way of having a high-speed internet connection without drastic reconstruction and additional expenses.
3. Cable Modems
Cable modems are specialized devices used in communication between computers and Internet Service Providers (ISPs); they use cable television networks to connect to the Internet. These modems take data signals over the coaxial cable lines that were designed to carry television broadcasts and turn them into digital signals that computers can interpret.
Often, the cable modems are standalone devices that plug into a desktop computer or a router using an Ethernet cable and translate between equipment owned by the user and the communications facilities owned by the ISP.
4. Fiber Modems
Fiber modems are different from the typical modems, which use a metallic cable like copper wire for data transmission. Instead, it makes use of optical fiber cables. These high-end modems encode the digital data before it is beamed as pulses of light through the optical fibers. This process only requires the use of a light-emitting diode (LED) or laser that emits light signals corresponding to the binary digit.
Fiber access usually uses an ONT, or Optical Network Terminal, instead of a traditional DSL or cable modem. Most fiber setups use an ONT that works like the translator between the provider’s fiber network and the home Ethernet network.
5. Satellite Modem
A satellite modem connects through satellite communication links. It is useful in remote areas, though latency is usually much higher. Satellite modems are used to modulate and demodulate signals which employ satellite dishes to provide a link by connecting to satellite circles around the globe. These are different from normal modems, which have to use cable or telephone modems to connect the users to the Internet, but rather, the satellite modems transmit the data to and from satellites. It starts when the satellite modem receives data from a user’s computer, encodes it into radio signals, and transmits it to an orbiting satellite.
6. Digital Modems
A digital modem is an electrical device that is applied in the conversion of digital information symbolized in binary structures or codes made up of 0s and 1s into transmission signals. It accomplishes the modulation function, which involves incorporating the digital data into the digital carrier signals for efficiency in streaming through different networks. Since in digital modems, the carrier signals can be changed, they are crucial for providing high-speed internet connections as well as improving data integrity and reliability in digital communication systems.
Now that we have a deep understanding of modems and their types, let us look at some of their advantages and disadvantages.
Advantages of a Modem
- Modems can be categorized into different types, including DSL, cable, and satellite modems, each suited for specific types of internet connections.
- Some modems include built-in routers, allowing multiple devices to connect to the Internet simultaneously.
- Modems have varying maximum speeds, influencing the overall performance of internet connectivity.
- Many modern modems support advanced features such as quality of service (QoS) settings, which prioritize certain types of traffic for improved performance.
- Modems require regular firmware updates to enhance performance, security, and compatibility with service providers.
Disadvantages of a Modem
- The performance of a modem slows down when connected to a hub.
- A modem cannot track the traffic between a Local Area Network (LAN) and the Internet.
- Only a limited number of network devices can be connected to the Internet when using a modem.
- Modems are susceptible to a high risk of security-related attacks.
- A modem does not provide traffic maintenance or management features.
Modem vs Router vs Gateway
Below, we have discussed between the three i.e., modem, router, and gateway.
| Device | Main Role | What It Does | Simple Meaning |
| Modem | Connects to the internet provider | Brings the internet connection from the ISP into your home or office network | Brings internet in |
| Router | Shares the connection locally | Distributes the internet connection to devices like phones, laptops, and smart TVs | Shares internet inside the network |
| Gateway | Combines both functions | Works as both a modem and a router in one device | Does both jobs in one device |
Now, the most asked question is how to choose the right Modem. Let’s discuss this in detail.
How do you choose the right Modem and its types?
The first thing to check is the provider connection type. That decides whether you need DSL, cable, fiber, or a wireless gateway setup. A good choice should match:
- The ISP connection type
- The internet speed plan
- The size of the network
- And whether routing is separate or combined
If the provider uses fiber, the setup often includes an ONT and router. If the provider uses fixed wireless, the setup may include a wireless gateway instead.
It is good to have a basic knowledge of the troubleshooting techniques for a modem.
Troubleshooting a Modem
- Check Power Supply: Check the Modem is switched on, and the power outlet is working.
- Inspect Connections: Ensure that all cables (power, Ethernet, coaxial) are properly and tightly connected.
- Restart the Modem: Try resetting the Modem, which means turning it off for about 10-15 minutes and then turning it back on.
- Check Indicator Lights: Check for the proper LED light for the Modem (power, Internet, and connected light).
- Update Firmware: The firmware of the Modem should be updated to ensure better performance and security is enhanced.
- Reset the Modem: In cases where these problems are not resolved, a reset should be done, which in most products has a reset button.
- Check for Service Outages: Go to your ISP’s website and retrieve your area for any Service interruptions.
- Test with Another Device: Switch on opening another gadget to check if the problem is with the Modem or simply the particular equipment.
- Run Diagnostics: Check for problems using pre-si installed diagnostics or software that would be available on your computers, or get your ISP to assist you in diagnosing the problems.
Frequently Asked Questions
Q1. What is a modem used for?
It’s an electronic device that enables computers to connect to the Internet and communicate with other computers across the globe.
Q2. What is the full meaning of the Modem?
The word “modem” stands for “modulator-demodulator.” A modem’s purpose is to convert digital information to analog signals and vice versa.
Q3. What is a modem connected to?
A modem is a hardware that connects to a computer, broadband network, or wireless router. It is connected between a telephone line and a serial port.
Q4. What is the difference between a router and a modem?
The Modem is responsible for sending and receiving signals from the ISP, while the router disperses the signal to devices on the network.
Conclusion
Modem and its types are instrumental in making sure there is an easy connection to the Internet and they both translate digital signals and vice versa. Dial-up, DSL, cable, fiber optic, and satellite connection are some types of Modem that people can have for different use cases, which can be useful depending on the requirement.
Focusing on the main features, advantages, and disadvantages of these modems helps the reader choose the proper device to improve their internet connection. Therefore, when a user has selected the correct Modem, it is easy to enhance the internet connectivity to provide a fast internet connection for multiple activities in a home or office.
