Introduction
When data travels across a network, signals weaken, change shape, and sometimes get lost. This is what we call transmission impairments in computer network communication. These impairments can affect the quality and reliability of communication between devices. Noise, attenuation, and distortion are common examples that interfere with smooth data transfer. As a result, messages may arrive with errors or delays, making it harder for the receiver to understand the original information correctly and respond efficiently.
If you are a student, an IT professional, or just curious, this guide is for you. In this blog, we will cover the main types of transmission impairments. We will also look at what causes them and how engineers fix them.
Before getting into more details, let us first understand what transmission impairments really are.
What Are Transmission Impairments in Computer Network?
Transmission impairments in computer network refer to problems that weaken, distort, delay, or disrupt signals during data transfer, causing errors and reducing communication quality, accuracy, and reliability between connected devices.
Transmission impairments are changes that happen to a signal as it travels. These changes occur in the transmission medium. The medium can be a copper wire, a fiber optic cable, or open air in wireless networks. These impairments can corrupt data. They can slow down communication. They can even make a signal impossible to read.
Types of Transmission Impairments
There are three main types of transmission impairments in computer network systems that affect the signals. These are:
- Attenuation
- Distortion
- Noise

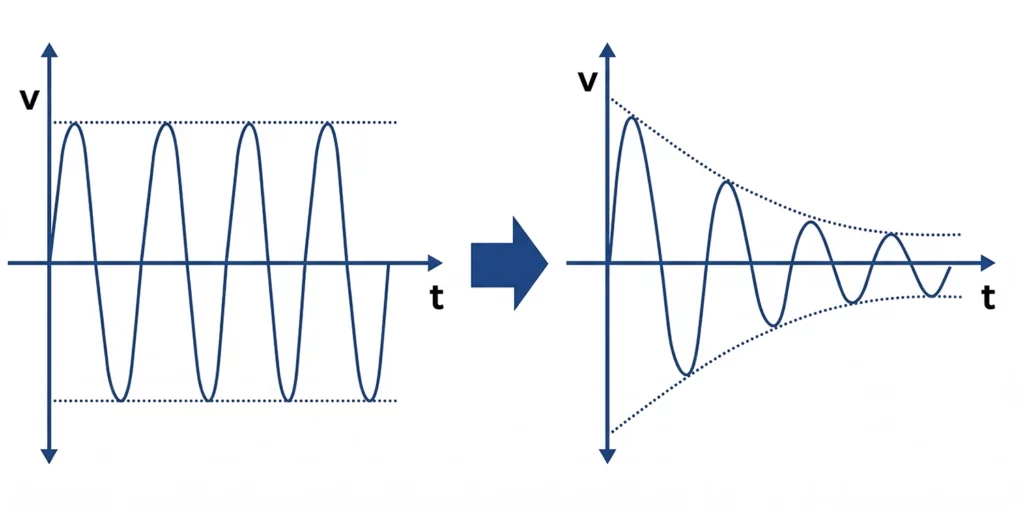

1. Attenuation
Signal attenuation is the term used to describe the process by which signals travel through a cable between two devices; it slowly becomes weaker. If the wire is longer, the more loss of energy in the signal when compared to a wire that is shorter. It is because a portion of the signal’s energy gets wasted as it travels through the medium. Wireless signals function the same way, getting weaker as the distance between them increases. If the signal becomes weak, the device receiving it might not be able detect or understand the information properly.
How Is It Measured?
Attenuation is measured in decibels (dB). A signal that loses 3 dB has lost about half its power. Engineers use this number to plan cable runs and design networks.
How Do Engineers Fix Attenuation?
Repeaters and amplifiers are placed along the cable route. They boost the signal back to its original strength. Higher-quality cables are also used to reduce energy loss. In wireless networks, stronger antennas help maintain signal power.

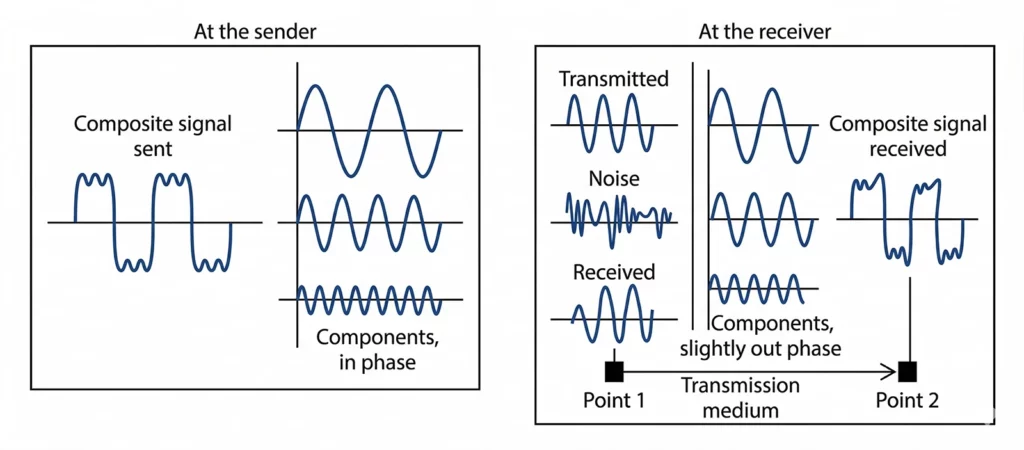

2. Distortion
Distortion does not just weaken a signal. It changes the shape of the signal. A distorted signal arrives looking different from how it was sent. This makes it hard to read correctly.
Most signals are made up of multiple frequency parts. Each part can travel at a slightly different speed. So they arrive at different times. This distorts the overall signal shape. This is the main cause of distortion.
Types of Distortion
1. Delay Distortion
Different frequency parts of a signal travel at different speeds. They arrive out of sync. The signal at the receiving end looks different from the original. This is called delay distortion or phase distortion. It is a big problem in fast data transmission.
2. Frequency Distortion
Some transmission media do not carry all frequencies equally. Some frequencies get amplified more than others. This throws off the balance of the signal.
3. Waveform Distortion
The shape of the signal changes as it travels. The peaks and valleys shift. The receiver finds it hard to decode the original data.
How Do Engineers Fix Distortion?
Equalizers are used inside modems and network hardware. They adjust the signal after it arrives. This corrects the distortion caused during travel. Dispersion-shifted fiber is used in optical networks to reduce a type of distortion called chromatic dispersion.

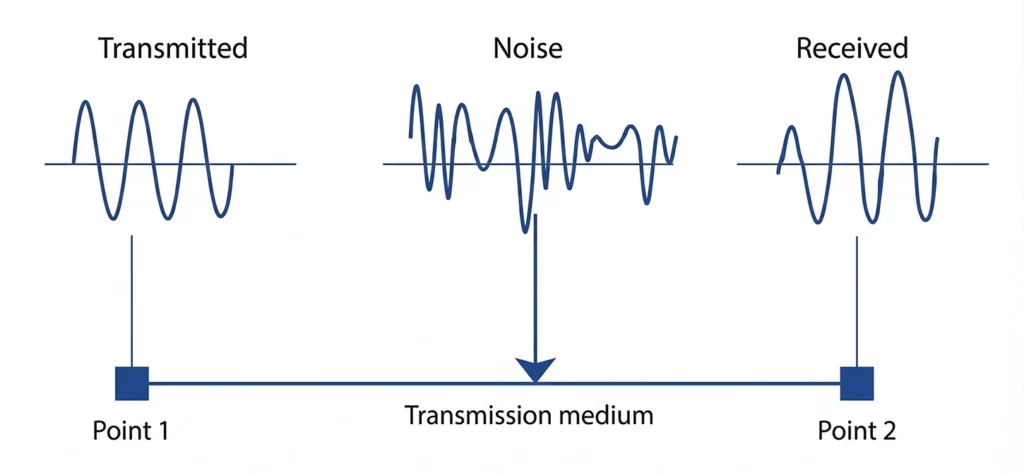

3. Noise
Noise is any unwanted signal that mixes with the original transmission. It is the most complex type of transmission impairment in computer network. Noise corrupts data, causes errors, and forces the system to resend information.
Noise exists in every network environment. It comes from many different sources.
Types of Noise in Transmission Impairments
1. Thermal Noise
Electrons inside a conductor move randomly due to heat. This movement creates a small, unwanted signal. This is thermal noise. It is present in every wire and every device, always. It increases with temperature. It is also called white noise because it spreads across all frequencies evenly.
2. Induced Noise
Motors, power lines, and electrical machines create electromagnetic fields. These fields can be picked up by nearby cables. That creates an unwanted signal inside the cable. Induced noise is very common in factories and industrial buildings.
3. Crosstalk
When wires run close together, signals can leak between them. A signal in one wire creates a small signal in the next wire. This is crosstalk. Twisted pair cables reduce this problem. The twisting cancels out much of the interference between the wires.
4. Impulse Noise
This is a short, sharp burst of energy. Lightning strikes cause it. Power surges cause it too. Large machines switching on and off also create impulse noise. It is unpredictable. A single burst can corrupt a large amount of data instantly.
What Is Signal-to-Noise Ratio?
Signal-to-Noise Ratio, or SNR, compares the signal power to the noise power. A high SNR means the signal is strong and the noise is low. That is ideal. A low SNR means noise is overpowering the signal. That leads to errors.
SNR is measured in decibels (dB):
SNR (dB) = 10 × log₁₀ (Signal Power / Noise Power)
Engineers always try to maximize SNR at the receiving end.
How Do Engineers Manage Noise?
Shielded cables block outside electromagnetic interference. Error detection protocols like CRC find corrupted data and ask for a resend. Forward Error Correction adds extra data to help the receiver fix errors on its own. Physical separation of power cables and data cables also reduces induced noise.
Transmission Impairments and Data Rate
Transmission impairments directly affect how fast data can travel reliably. Claude Shannon, a mathematician, proved this with a formula now called Shannon’s Theorem:
C = B × log₂(1 + SNR)
Where:
- C = maximum data rate the channel can carry
- B = bandwidth of the channel in Hz
- SNR = Signal-to-Noise Ratio
This means noise sets a hard limit on data speed. No encoding trick can go beyond this limit. A noisy channel will always be slower. This is why clean, low-noise connections are so important for high-speed internet.
How Different Media Handle Transmission Impairments
Not every medium suffers from the same impairments. Here is a simple comparison:
| Medium | Main Impairment |
| Twisted Pair Copper | Attenuation, Crosstalk, Thermal Noise |
| Coaxial Cable | Attenuation, Impulse Noise |
| Fiber Optic Cable | Minimal Attenuation, Chromatic Dispersion |
| Wireless | Path Loss, Multipath Fading, Interference |
Fiber optic cables handle impairments the best. That is why they form the backbone of the modern internet. But even fiber has limits over very long distances.
Wireless networks face a unique problem called multipath fading. A signal bounces off buildings and surfaces. It reaches the receiver via multiple paths. Each path takes a slightly different time. These signal versions interfere with each other at the receiver.
Frequently Asked Questions
Q1. What are the four types of Network Delays?
The four types are processing delay, queuing delay, transmission delay, and propagation delay. Each one slows down data as it moves through a network.
Q2. What are the types of transmission errors?
The two main types are single-bit errors and burst errors. A single bit flips in one case. Multiple bits in the other are corrupted.
Q3. What are the types of Transmission Impairments?
The three types are attenuation, distortion, and noise. Attenuation weakens signals. Distortion changes their shape. Noise adds unwanted interference to the signal.
Q4. What are Five Transmission Media?
The five types are twisted pair cable, coaxial cable, fiber optic cable, radio waves, and microwave. Each carries data differently.
Conclusion
Transmission impairments are an intrinsic part of computer networking systems. They stem from physical realities of the world in which we live. Attenuation is the reduction of the signal strength as the signal travels further away from the source, creating a distorted signal shape (i.e., the distortion of waveforms) as well as adding noise (i.e., unwanted interference) to the original waveform signal.
These three types of transmission impairments provide limits to the speeds and reliability with which data can travel over a transmission medium. Engineers have developed advanced technologies designed to combat these impairments: error correction schemes; improved cabling; amplifier technology; and signal processing.
