Introduction
In modern networking, we want three things: stable connections, easy growth, and fast problem fixing. That is why star topology is so widely used. In this layout, every device connects to a central device. This central point is usually a switch, router, or wireless access point. The design is simple, but it scales well. You can add more devices without changing the whole network. You can also find faults faster because each device has its own link. You will see star topology in homes, offices, schools, labs, shops, and even small data rooms. It supports modern needs like video calls, cloud apps, and WiFi roaming.
In this blog, we will discuss star topology in detail along with its types and functioning. We will also discuss star topology advantages and disadvantages.
Before getting into more details, let us first understand what exactly star topology is.
What is Star Topology?

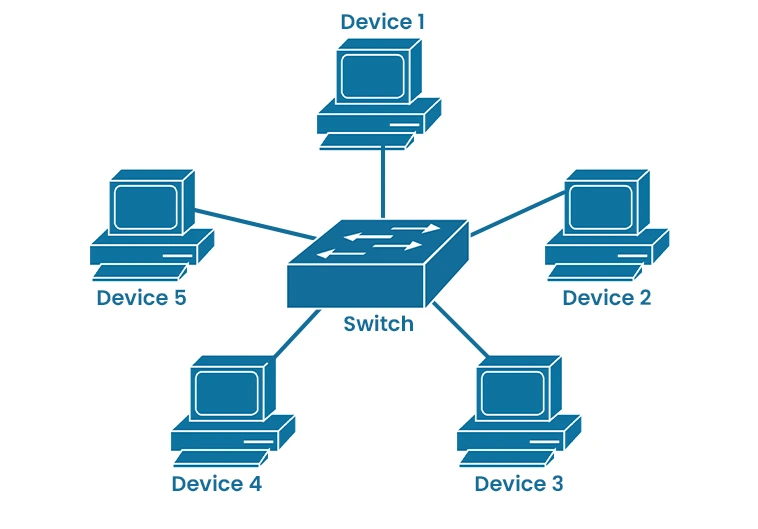

A star topology is a network structure in which all computers and devices connect to a single central device via separate links. Each device has its own dedicated path to the center. Data doesn’t usually move straight from one device to another. Instead, it is transferred through the device’s central hub first, then the central device reroutes it to its correct destination. Below, you can see the star topology diagram for better understanding.
Since each connection is separate, a damaged cable typically will only affect one device. This allows the star topology to expand, be easier to fix, and also serve as a standard base for a variety of new Ethernet networks.
How Does Star Topology Work?
Star topology in computer network works through a simple rule: everything goes through the central device.
Let’s say you have a switch and four computers: A, B, C, and D.
- Computer A sends data meant for Computer B.
- The data travels from A to the switch on A’s cable.
- The switch checks where B is connected.
- The switch sends the data only to B’s port.
- Computer B receives the data.
This is why the central device matters so much.
Types of Star Topology
Star topology in computer network comes in a few common types. The names may sound technical, but the ideas are simple.
1). Active Star Topology
In an active star, the central device plays an active role in managing traffic. It can regenerate signals and control data flow.
In modern networks, a switch is a strong example of an “active” center because it:
- Decides where each frame should go
- Can limit traffic
- Can apply rules (like VLANs)
Best for: offices, schools, business LANs, and most professional setups.
2). Passive Star Topology
In a passive star, the central device does not manage traffic in an intelligent way. It mainly acts like a connection point.
A simple example is an older hub-like behavior or a basic connector-based setup. Passive designs are easier to understand, but they are not ideal when you need speed and control.
Best for: small or temporary setups, learning labs, or very basic networks.
3). Switch-Based Star Topology
This is the most common form today. A switch sits at the center. Every device has its own cable to that switch.
Why is the switch-based star topology popular?
- Better speed
- Fewer collisions
- Better security options
- Easy growth
Best for: almost all Ethernet LANs.
4). Extended Star Topology
An extended star is a star-of-stars. Instead of one switch connecting to all devices, you have layers:
- A core or main switch (center)
- Access switches connected to the core
- End devices connected to access switches
This design is used when a single switch cannot handle:
- Distance (across floors)
- Number of ports (hundreds of devices)
- Traffic load (many users)
Best for: multi-floor buildings, campuses, and medium to large businesses.
Hub-based Star Topology vs Switch-based Star Topology
Star networks can be built using a hub or a switch, but the results are very different:
Hub-based star (older style):
- A hub repeats incoming data to all ports.
- Every device “hears” everything.
- This creates extra noise and can slow the network.
- It is also weaker for privacy.
Switch-based star (modern standard)
- A switch forwards data only to the correct device.
- It reduces unnecessary traffic.
- It improves speed and reliability.
- It supports features like VLANs and monitoring.
In most real networks today, star topology means a switch-based design.
Application and Use Cases of Star Topology
Star topology is popular because it fits real life. Buildings have rooms, floors, and cable paths. Star wiring matches that.
Common real-world use cases of star topology in computer network are:
- Home networks: Your Wi-Fi router is the center. Phones, TVs, and laptops connect to it.
- Small offices: A single switch connects PCs, printers, and a router. Easy to add a new desk.
- Schools and colleges: A switch per floor or wing. Uplink to a main switch in the server room.
- Retail stores: POS systems connect to a central switch. Cameras and billing systems often run on the same network (with separation).
- VoIP phone systems: IP phones connect to PoE switches. Calls need stable performance, so star helps.
- CCTV and security: IP cameras connect to PoE ports on a switch. Central recording system (NVR) sits on the same network.
- Labs and training rooms: Easy to rewire and test different devices.
Why Star Topology is a Default Choice?
It is not just about the shape. It is about operations:
- Easy fault isolation
- Clean cable management
- Simple expansion
- Centralized control
That is exactly what modern networking teams need.
Star Topology Advantages and Disadvantages
Every topology is a trade-off. Star topology is strong, but not perfect. Here is a clear, practical view.
Advantages of Star Topology
Some of the advantages of star topology are:
- Easy to troubleshoot: If one device goes offline, you check its cable and its switch port. Other devices usually keep working.
- Easy to expand: Adding a device is simple: plug it into the switch. No need to disturb existing users.
- Better performance with switches: A switch sends data only where it should go. This reduces unnecessary traffic.
- Good for modern features: Supports VLANs (traffic separation), QoS (priority for voice/video), Port security (control who can connect), and Monitoring (see errors and usage)
- Device failure is isolated: One PC failing does not crash the whole LAN.
- Cleaner management: Central equipment can be protected with a UPS. Updates and monitoring are easier from one place.
Disadvantages of Star Topology
Apart from advantages, star topology also has some disadvantages. These are:
- The central device is a single point of failure: If the central switch fails, many devices lose connection. This is the biggest risk in a basic star.
- More cabling: Each device needs its own cable to the center. This raises the cable and installation costs.
- Hardware cost can grow: More devices mean more switch ports. Larger setups need multiple switches and uplinks.
- Possible bottlenecks: If many devices send heavy traffic, the central switch or uplinks can get overloaded. Bad design can make a fast LAN feel slow.
- Distance limits: Ethernet cable length limits apply. Long buildings may require extra switches or fiber uplinks.
A balanced view for decision-making
If you want a network that is easy to run day after day, star topology is usually worth it. The key is to reduce the “single point” risk using better design choices (more on that below).
Star Topology vs Bus Topology vs Ring Topology
Star vs Bus
- Bus: one main cable shared by all
- Star: each device has its own link to the center
Star is usually:
- Easier to expand
- Easier to troubleshoot
- More reliable when one device fails
Bus topology can be cheaper in very small setups but are harder to manage and less common today.
Star vs Ring
- Ring: devices form a loop, data often travels around the ring
- Star: all devices connect to a central point
Star is usually:
- Easier to maintain
- Easier to isolate faults
A ring can be sensitive: one break can disrupt the loop (unless special protection is used).
Frequently Asked Questions
Q1. What is the star topology?
Star topology is a network layout that connects each device to the central hub, switch or router. All traffic flows through it (the central device) first.
Q2. What are the 7 types of topology?
The seven common network topologies are bus, star, ring, mesh, tree, hybrid, and point-to-point. Each shapes how devices connect and share data in a network.
Q3. Is Wi-Fi a star topology?
Wi-Fi usually acts like a star as clients with different devices, including phones, tablets, laptops, etc., connect to wireless access points.
Q4. What are the advantages of star topology?
Star topology is easy to install, expand, and troubleshoot. A single cable failure affects one device, and switches improve speed and control for most teams.
Conclusion
Star topology is popular for a reason. It’s simple, practical, and easy to handle. Each device has its own direct connection with a switch, router, or access point. This makes it easier to expand as well as easier to fix. It also supports the latest needs, such as cloud-based applications, video conferences, VoIP, and smart devices. For beginners, the star topology can be a good start because the concept is simple: one central point with many connections. For professionals, it is a reliable base for strong designs like switch-based and extended star networks.
