Network topology is one of the initial terms you come across when you learn about computer networks. It describes how devices are interconnected and how data flows between them. Ring topology is one of the standard network layouts, simple to understand, highly structured, and well-suited to settings where communication predictability is important.
In this blog, we will discuss what is ring topology, how a ring topology function in computer network configuration, how a ring topology diagram would be read, what are the advantages and disadvantages of the ring topology.
Before getting into more details, let us first understand what ring topology is.
What is Ring Topology?
A ring topology is a network layout where each device connects to two neighboring devices, forming a closed loop. Data travels from one device to the next around the ring until it reaches the intended destination.
Since the route is predetermined, all nodes have a role to play in the transfer of information. This simplifies the design to be easy to visualize and describe particularly to be learned and documented.
Note: In a ring topology, devices are connected in a circular format and communicate in a way that follows the path of a ring.
Ring Topology in Computer Network: Where It Fits?
In ring topology, the main goal is organized data flow. Instead of multiple devices trying to send data at the same time (which can cause collisions in some network methods), ring-based systems can use controlled access approaches.
This topology was used in older LAN technologies, and is still used in some specialized or industrial networks. The concept may also be found in the discourse of network design as it imparts crucial concepts such as forwarding, redundancy, and failure impact.
Ring topology is usually considered when:
- You want a structured path for data movement
- You prefer predictable behavior under heavy load
- You can manage the risk of a single-point break (or you plan redundancy)
Ring Topology Diagram

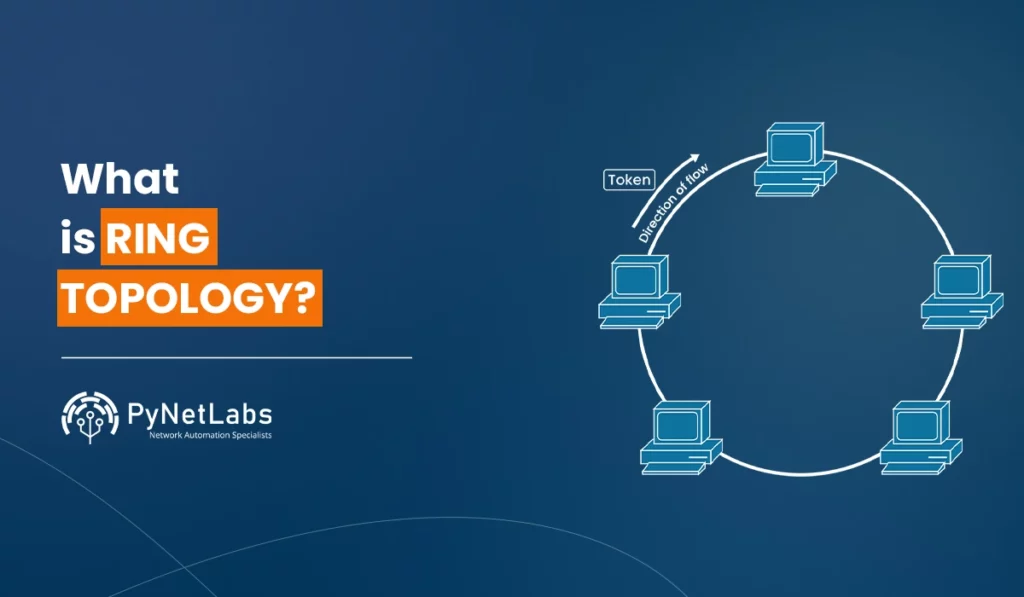

A ring topology diagram shows devices placed in a circular loop. Each device connects to two neighbors: one on the left and one on the right. The diagram often includes arrows to show the direction of data flow.
How to read a ring topology diagram
- Nodes are computers, switches, or network devices.
- Links are the cables or communication channels between nodes.
- Direction arrows (if shown) indicate whether the ring is unidirectional or bidirectional.
- A closed loop means the last node connects back to the first.
Step-by-Step Guide: How Ring Topology Works?
In a ring network, each device acts like a checkpoint. It can receive data, check it, and then pass it ahead.
Here is a simple step-by-step flow:
Step I: A PC sends data into the ring (via its access switch)
The sender PC (e.g., PC0/PC1/PC2/PC3) places the data onto its access link (Fa0) toward the connected switch port (Fa0/1). In many ring-based systems, the device may first wait for permission to transmit (like getting a “turn”).
Step II: Data moves to the next node (switch-to-switch hop)
The directly connected neighbor switch receives the data first. The signal then travels hop-by-hop along the ring (in the arrow direction shown), so it does not jump directly to the destination.
Step III: Each node checks the destination (at every hop)
Each switch/node checks the destination address in the data frame. If the data is not meant for that node, it forwards the frame to the next device in the ring.
Step IV: Destination side accepts the data (and reaches the target PC)
When the destination node recognizes its own address, it copies the data and processes it. In some designs, it also marks the frame as received, and then the frame is delivered out the access link to the destination PC (Fa0/1 → Fa0).
Step V: The data completes its journey around the ring
After delivery, the frame can continue around the ring until it reaches the sender again (so the sender knows it was delivered). In other methods, the frame is removed from the ring once delivery is confirmed, keeping the network clean and reducing extra traffic.
This structured flow is why ring topology is known for organized communication, especially when access is controlled.
Token-based control: Common ring concept
In many ring-based designs, a “token” is used to control who can transmit. Only the node holding the token can send data. This avoids confusion and reduces the chance of collisions.
Even if your current network doesn’t use token passing, the concept is still a useful way to understand why ring topology is described as orderly.
Types of Ring Topology
Ring topology is not always a single identical design. The most common classification is based on redundancy.
1) Single Ring Topology: Each ring has a single loop path. Data are in the same direction (or occasionally in both directions) as the ring.
It is simple, and it is cost-effective, but its weakness is a huge one: one failure of links or a critical node will cut off the whole ring.
2) Dual Ring Topology: A dual ring topology uses two rings, often running in opposite directions. If one ring fails, data can be rerouted through the second ring.
This design improves fault tolerance and is preferred where uptime matters more than setup complexity.
Ring Topology Advantages and Disadvantages
Every topology comes with trade-offs. Let’s cover the ring topology advantages and disadvantages in a practical way.
Advantages of Ring Topology
- Organized transmission sequence: Predictable path. Data moves in an organized sequence from node to node.
- Stability during heavy traffic: Often stable under heavy traffic because access can be controlled in many ring designs.
- Equal communication opportunity: Each device gets a fair chance to communicate (especially in token-based rings).
- Reduced collision likelihood: Lower collision chances in controlled ring methods like token passing.
- Redundancy option with dual rings: Dual rings can provide redundancy and keep the network running during a failure.
- Best for fixed network layouts: Works well for stable setups where the network layout rarely changes.
- Logical fault tracing: The structure is straightforward, so path-based issues can be traced logically.
- Suitable for small controlled setups: Can be cost-effective in small, controlled networks.
Disadvantages of Ring Topology
- Increasing delay with size: Data must pass through multiple nodes, so delays increase as the ring grows.
- Single slow/faulty node impact: If one node becomes slow or faulty, it can affect the flow for the whole ring.
- Poor fit for frequent membership changes: Not ideal for networks where devices join or leave frequently.
- Vulnerability to cable breaks (single-ring): A single cable break can disrupt the entire network in a single-ring setup.
- Limited fault tolerance (single ring): A single ring has poor fault tolerance unless extra redundancy is added.
- Disruption during node changes: Adding or removing a node can require breaking the ring, causing downtime.
- Sequential checking effort: Troubleshooting can still be time-consuming because you may need to check nodes in sequence.
When Should You Use Ring Topology?
Ring topology can be a good fit when you want stability and controlled communication, and you can manage the limitations.
Consider ring topology if:
You need predictable performance and structured routing
- Your environment is controlled (like a plant floor or closed network)
- You can implement redundancy (dual ring) for reliability
- Your network size is moderate and not changing frequently
Avoid ring topology if:
- Your network will expand often
- You cannot tolerate downtime during upgrades
- You want simple isolation of failures (star is typically better)
Common Use Cases and Examples
While modern office LANs usually prefer star-based Ethernet switching, ring topology concepts still show up in specific scenarios:
- Industrial networks where predictable communication is valued
- Legacy LAN environments that were designed around ring technology
- Backbone-style layouts where redundancy can be built using dual rings
- Training and academic setups where ring topology is used to teach forwarding and fault impact clearly
Even if you never deploy a ring network directly, understanding it makes you better at diagnosing network behavior and designing resilient layouts.
Frequently Asked Questions
Q1. What is ring topology?
Ring topology is a network layout where each node connects to two others, forming a closed loop. Data travels from device to device around the ring.
Q2. What is a ring topology diagram?
A ring topology diagram visually shows nodes connected in a circular loop. It highlights neighbor connections and often includes arrows to explain data flow direction.
Q3. How does ring topology work in computer network systems?
In a ring topology of computer networks, data is transmitted all the way to the destination with one node transmitting each packet. Most designs employ controlled access, such as token passing.
Q4. What are the ring topology advantages and disadvantages?
The benefits are that there is predictable communication and stable performance under load. Disadvantages are the disruption of networks with one break and the impossibility of expansion without a break.
Q5. What is the difference between single ring and dual ring topology?
One loop path is used in a single ring and will not work if the ring breaks. The dual ring introduces a second loop, which enhances fault tolerance and reliability.
Conclusion
Ring topology is one of the clearest ways to understand how network structure influences data flow. It connects devices in a loop, creates predictable communication paths, and works well when the environment is stable. At the same time, the risk of a single break and the complexity of changes make it less flexible than the star topology in many modern setups.
If you want a strong foundation in networking, learn ring topology well. Once you understand its diagram, working, and trade-offs, comparing other topologies becomes much easier.
