Palo Alto firewall models are different firewall options designed and developed by Palo Alto networks for different network sizes and use cases. Some models are small and used in branch offices. Some are built for campuses, data centers, service providers, cloud platforms, and Kubernetes environments. The right model depends on traffic volume, users, ports, security needs, and where the firewall will be deployed.
In this blog, we will discuss the full Palo Alto firewall models list. We’ll cover what makes these firewalls different, how each series fits a specific network need, and which model suits your setup.
What is Palo Alto Firewall?
A Palo Alto firewall is a next-generation firewall that protects a network by checking more than IP addresses and ports. It can identify applications, users, content, threats, and encrypted traffic. This makes it more advanced than a traditional firewall.
A normal firewall may allow or block traffic based on port numbers. For example, it may allow HTTPS traffic on port 443. But a Palo Alto firewall can look deeper and understand what application is actually running inside that traffic.
Palo Alto Firewall Models list: A Quick Overview
Below, we have shown a comparison table to help you understand where each series fits.
| Hardware Family | Main Use Case | What benefits does each series offer? |
| PA-400 Series | Branch offices, retail, midsize business | Small footprint, branch threat prevention, fast decryption |
| PA-400R Series | Industrial and harsh environments | Rugged form factors, DIN-rail options, 5G options |
| PA-500 Series | Enterprise branch and small office | Up to 2x PA-400 performance, up to 24 high-speed ports, PoE options |
| PA-1400 Series | Large branches and small campuses | PoE, VSYS, mGig copper ports, fiber ports |
| PA-3400 Series | Internet edge and campus | Strong performance in 1 RU |
| PA-5400 Series | Data center and campus | High performance in 2 RU |
| PA-5450 | Hyperscale data center, internet edge, campus segmentation | Compact but very high threat performance |
| PA-5500 Series | Large enterprise data center and service provider | Quantum Optimized design, post-quantum encrypted traffic visibility |
| PA-7500 | Very large enterprise | Fastest and most scalable chassis, modular design |
| VM-Series | Public cloud, private cloud, and virtualized environments | Virtual firewall for flexible software-based deployments |
| CN-Series | Kubernetes and containerized environments | Container firewall for east-west and north-south traffic security |
Once you’ve chosen the right firewall model, the next step is learning how to deploy and manage it. Our Palo Alto Firewall Training provides hands-on labs, live instructor-led sessions, and real-world enterprise scenarios.
What Are the Different Types of Palo Alto Firewall Models?
Palo Alto firewall models can be divided into four broad types.
1. Hardware Firewalls
These are physical appliances that have physical components. They can be found in branches, offices, campus, data centers as well as industrial sites. PA-Series models fall under this category.
Hardware firewalls are a great option in situations where a business requires high performance with dedicated ports, steady performance, and physical control over the network edge.
2. Virtual Firewalls
VM-Series firewalls run on software and can be called as software-based Palo Alto firewalls. They can be installed on cloud platforms and virtual environments. You can use virtual firewalls for specific applications that are hosted in AWS, Azure, Google Cloud, VMware, KVM, or any other virtual environment.
The most important benefit is the flexibility. It is not necessary to set up physical boxes for each situation.
3. Container Firewalls
CN-Series firewalls are designed specifically for Kubernetes environments. They help protect container traffic as well as cloud-native applications.
This is a great option for businesses that use containers, microservices, DevOps pipelines, and cloud-native software.
4. Cloud-Delivered Firewalls
Palo Alto also offers cloud-delivered security via platforms like Prisma Access. Prisma Access extends firewall-like security to branches, remote users, apps, as well as cloud services without having to force each company to create its own security infrastructure for the world.
Planning a career in Network Security? Knowing the firewall models is just the beginning. Build real-world Palo Alto skills through hands-on labs, live projects, and certification-focused training with PyNet Labs Palo Alto Firewall Training.
Let us now discuss each Palo Alto Firewall Models that falls under PA category, i.e., hardware firewalls.
Palo Alto Firewall Models: PA-Series Breakdown
PA-400 Series Models

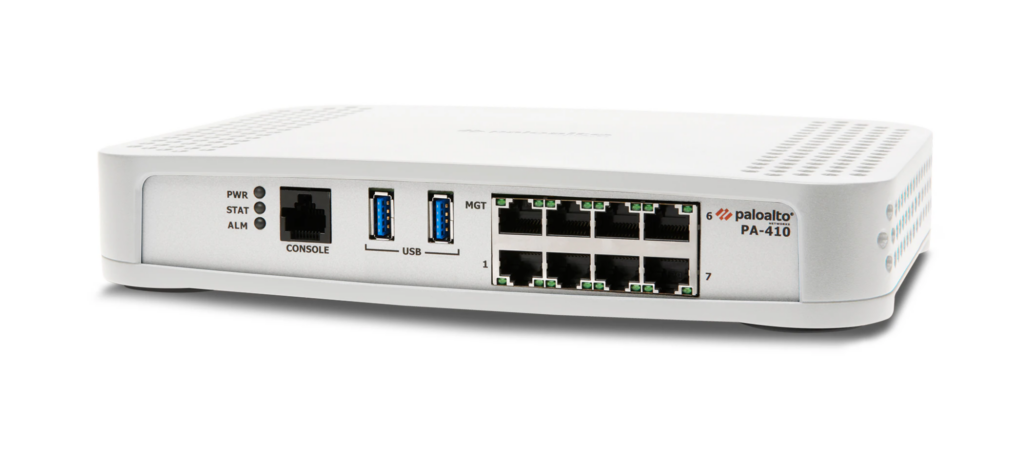

The PA-400 Series is built for distributed enterprise branches, retail locations, and midsize businesses. This family gives inline, real-time threat prevention in a small footprint.
| PA-400 Model | Simple Speciality |
| PA-410 | Entry branch model with basic fixed copper ports |
| PA-415 | Branch model with PoE ports and optional redundant power |
| PA-415-5G | Branch model with 5G, PoE, combo ports, and optional redundant power |
| PA-440 | Fixed-port branch firewall in the PA-440/450/460 group |
| PA-445 | Similar role to PA-415, with PoE and optional redundant power |
| PA-450 | Fixed-port branch firewall in the PA-440/450/460 group |
| PA-455 | Branch firewall with PoE, combo ports, and redundant power support |
| PA-455-5G | Branch firewall with dual SIM mobile connectivity, PoE, combo ports, and redundant power |
| PA-460 | Fixed-port branch firewall in the PA-440/450/460 group |
A smart way to read this family is simple. If you want a compact branch firewall, start here. If you need built-in 5G, look at PA-415-5G or PA-455-5G. If you need PoE and more flexibility, PA-415, PA-445, and PA-455 stand out.
PA-400R Series Models

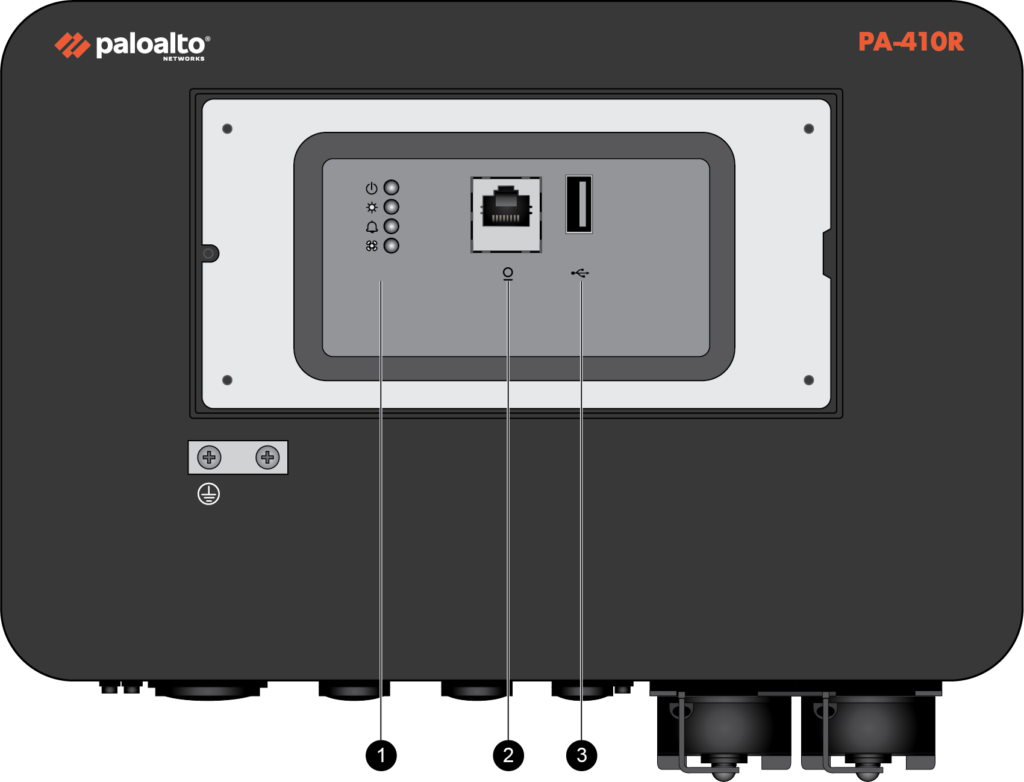

The PA-400R Series is the rugged line. It is built for industrial applications in harsh environments. This series highlights rugged choices such as 1U and DIN-rail mounted form factors, plus SFP and integrated 5G options.
| PA-400R Model | Simple Speciality |
| PA-410R | Rugged entry model for harsh environments |
| PA-410R-5G | Rugged entry model with integrated 5G |
| PA-450R | Rugged model with fail-open ports, combo ports, and DC power redundancy |
| PA-450R-5G | Rugged model with 5G, dual SIM support, fail-open ports, and DC power redundancy |
| PA-455R-5G | Rugged higher-end option with 5G for tough industrial deployments |
This family is easy to place. Use it when a normal office firewall is not enough. It is made for rougher environments, field locations, transport, industrial settings, and places where rugged mounting and power flexibility matter.
PA-500 Series Models

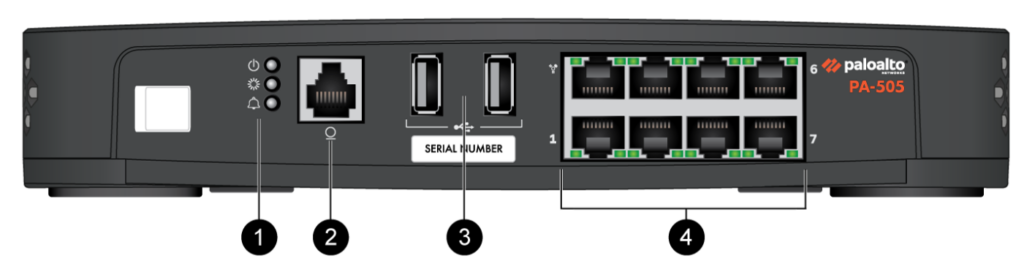

The PA-500 Series is also aimed at distributed enterprise branches, retail locations, and midsize businesses. But Palo Alto positions it above PA-400 for customers who want more. It offers up to 2x the performance of PA-400, up to 24 high-speed ports, and up to 330W of PoE support. The models are PA-501, PA-505, PA-510, PA-520, PA-540, PA-545-POE, PA-550, PA-555-POE, and PA-560.
| PA-500 Model | Simple Speciality |
| PA-501 | Compact branch model with basic fixed copper layout |
| PA-505 | Similar compact branch role as PA-501 |
| PA-510 | Fixed 8-port branch model with dedicated management port |
| PA-520 | Branch model with 8 copper ports and ZTP |
| PA-540 | PA-520-style model with added SFP ports |
| PA-545-POE | PoE-focused branch model with mGig and up to 181W PoE |
| PA-550 | 12 copper ports, 2 SFP, 2 SFP+, fail-open ports |
| PA-555-POE | Bigger PoE model with mGig and up to 332W PoE |
| PA-560 | 16 copper ports, 4 SFP, 4 SFP+, fail-open ports |
The PA-500 family is a good choice when a branch needs more port density or more security headroom. It is especially useful when you want PoE, mGig, or more interface flexibility in a branch or small office design.

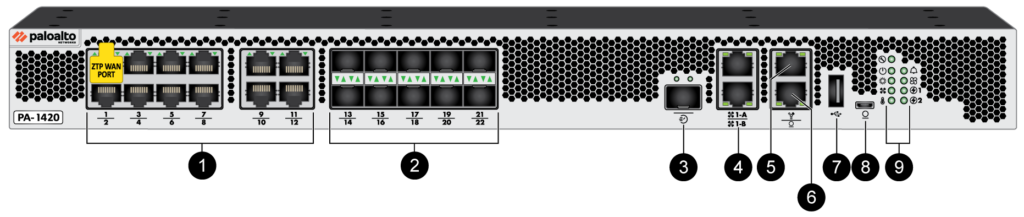

PA-1400 Series Models
The PA-1400 Series is designed for distributed enterprise branches and data centers. It is for large branch locations and small enterprise campuses. The series has two models; PA-1410 and PA-1420. Some highlighted features are PoE, power redundancy, mGig ports, VSYS, fiber ports, and TPM-backed key storage.
| PA-1400 Model | Simple Speciality |
| PA-1410 | Large branch and small campus firewall with some mGig copper ports |
| PA-1420 | Similar role, but with more mGig-capable copper ports |
This family is useful when a branch is becoming more like a small campus. It gives more enterprise-style flexibility than the smaller branches series. It is a nice middle ground between branch appliances and heavier edge gear.
PA-3400 Series Models

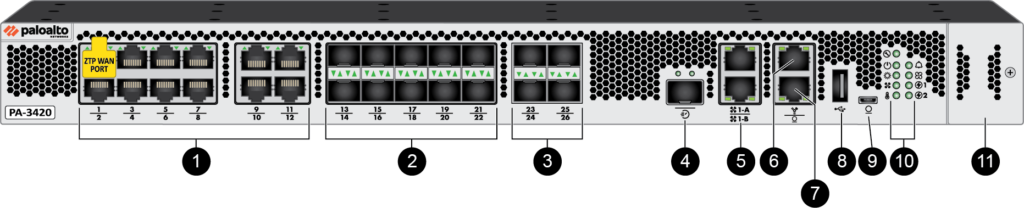

The PA-3400 Series is designed for data center and internet gateway deployments. This series models are a strong fit for internet edge and campus environments. The models are PA-3410, PA-3420, PA-3430, and PA-3440. The family offers power redundancy, mGig ports, and a compact 1 RU design.
| PA-3400 Model | Simple Speciality |
| PA-3410 | Entry model in the PA-3400 family for edge and campus use |
| PA-3420 | Same 1 RU family, higher scale point |
| PA-3430 | Same 1 RU family, higher scale point |
| PA-3440 | Highest scale point in the PA-3400 family |
The main reason to choose PA-3400 is this. You want strong enterprise performance without moving into a larger chassis class. It is the compact performance family.
PA-5400 Series and PA-5450

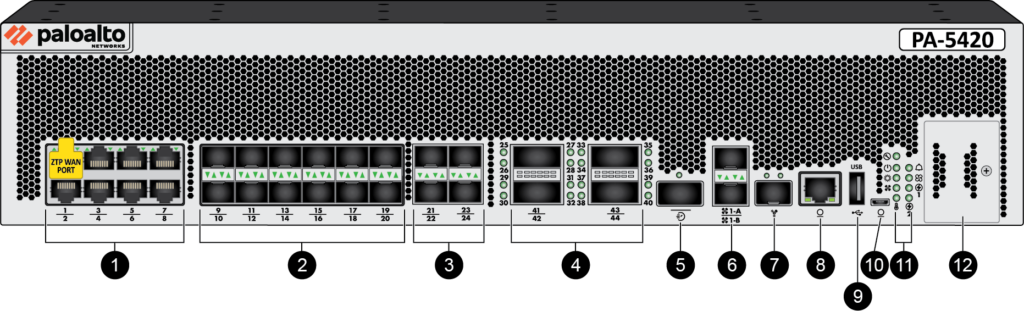

The PA-5400 Series is built for high-speed data center, internet gateway, and service provider deployments. The models are PA-5410, PA-5420, PA-5430, PA-5440, and PA-5445. In Palo Alto firewall models list, this series is one of the highest-performing ML-powered NGFW line in a 2 RU design.
| Model | Simple Speciality |
| PA-5410 | Entry point into the PA-5400 2 RU data center family |
| PA-5420 | Same family, more scale |
| PA-5430 | Same family, more scale |
| PA-5440 | Same family, more scale |
| PA-5445 | Newer high-end 2 RU option with stronger threat performance than the previous generation |
The PA-5450 sits beside this family, but as its own model. Palo Alto positions it for hyperscale data centers, internet edges, and campus segmentation. It is a compact but very powerful option, with 150 Gbps threat performance with security services enabled.
PA-5500 Series Models

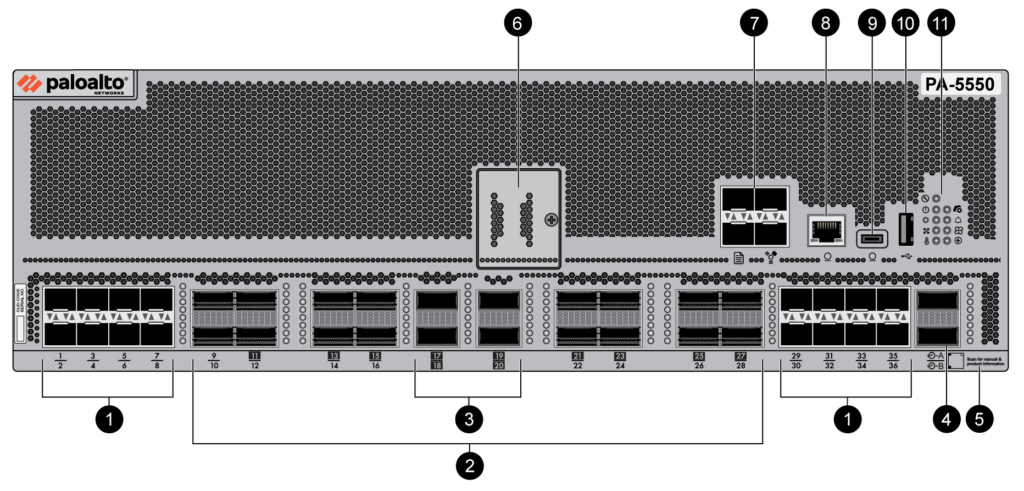

The PA-5500 Series is built for large enterprise environments, data centers, and internet gateway deployments. The models are PA-5540, PA-5550, PA-5560, PA-5570, and PA-5580. Under Palo Alto Firewall models, this series known for Quantum Optimized and even secure post-quantum encrypted traffic. It is known for Power support, RAID1 SSDs, and dedicated hardware resources for predictable performance.
| PA-5500 Model | Simple Speciality |
| PA-5540 | Entry point into the Quantum Optimized 5500 family |
| PA-5550 | Same family, more scale |
| PA-5560 | Same family, more scale |
| PA-5570 | Same family, more scale |
| PA-5580 | Highest scale point in the PA-5500 family |
This family is for very large environments. It is the kind of firewall family you look at when the edge, campus, and data center all demand heavy inspection and long-term scale.
PA-7500 Model
The PA-7500 is the largest and most scalable hardware option in the current lineup. It is a high-performance modular firewall for large enterprise environments. It uses a multi-blade chassis, hot-swappable cards, and a modular design that can grow as needs grow. The main hardware page also says it includes the FE400 ASIC and supports over 1.5 Tbps App-ID and more than 400 million concurrent Layer 7 sessions.
| Model | Simple Speciality |
| PA-7500 | Fastest and most scalable modular Palo Alto firewall for very large enterprise and high-growth deployments |
Frequently Asked Questions
Q1 What are the different models of Palo Alto firewalls?
The different models of Palo Alto firewalls include PA series which is completely hardware-based firewalls. Palo Alto also has VM-Series, CN-Series, and Cloud NGFW that is designed for cloud and software usage.
Q2 What are the different types of firewalls in Palo Alto?
The most popular types are PA-Series firewalls that are hardware-based, VM-Series virtual firewalls, CN-Series containers firewalls that work with Kubernetes as well as Cloud NGF for a cloud-native managed firewall service.
Q3 Is Palo Alto a layer 7 firewall?
Yes. Palo Alto are able to provide complete layer 7 inspection and can identify any application regardless of protocol, port, and evasive methods, as well as encryption.
Q4 What are the modes of Palo Alto firewall?
The primary deployment methods include tap, virtual wire as well as Layer 2 as well as Layer 3. To ensure high availability, Palo Alto also supports Active/Passive as well as Active/Active HA.
Conclusion
Palo Alto firewall models cover every network scenario. From the quiet PA-410 in a small office to the mighty PA-7500 in a hyperscale data center, there is a model for every need. The VM-Series and CN-Series extend this protection into virtual and container environments.
