Palo Alto firewall architecture is built on a unique technology called Single Pass Parallel Processing (SP3). This design handles network traffic in one single pass while running multiple security checks simultaneously. Unlike older firewalls that slow down when you switch to security settings, Palo Alto maintains high speed and low latency even when all security features are active. The design splits work between the control plane (for management) and a data plane (for traffic processing) and uses specific processors for various tasks.
In this blog, we will discuss Palo Alto firewall architecture. You will learn how the SP3 engine works, what makes it different from traditional firewalls. We will also cover deployment tips, key components, and how a packet moves through it.
What is Palo Alto Firewall Architecture?
Palo Alto firewall architecture is the backbone of Palo Alto Networks next-generation firewalls (NGFW). It is comprised of specialized hardware and software designed to analyze network traffic swiftly and precisely. The architecture uses a proprietary design referred to as SP3 Single Pass Parallel Processing. This means that traffic is scanned at once, and a variety of security functions are carried out simultaneously in parallel.
You can think of it like a modern airport security checkpoint. Instead of sending every passenger through multiple separate lines for ID check, bag scan, and body scan. Now imagine one smart lane that does everything at once. That is how Palo Alto handles network packets. One pass, multiple checks, and no bottlenecks.
Purpose of Palo Alto Firewall Architecture
Cyber threats are getting smarter. Attackers now use encrypted channels, evasive techniques, and fileless malware to bypass traditional defenses. Old port-based firewalls simply cannot keep up.
Palo Alto’s architecture was built for this reality. Because it inspects at Layer 7, encrypted traffic does not blind the firewall. Because it uses stream-based scanning, large file downloads do not create bottlenecks. Because it runs multiple processors in parallel, adding security features does not mean sacrificing speed.
For organizations moving to the cloud or supporting remote work, this architecture provides consistent protection across on-premise data centers, cloud instances, and branch offices. The same SP3 engine runs on physical appliances, virtual machines, and cloud-native firewalls.
How does Palo Alto Firewall Architecture Work?
Palo Alto firewall architecture is not just a box that filters traffic. It is a complete system built to inspect, identify, and protect. All of this happens without slowing your network down. The engine that makes this possible is called SP3, which stands for Single Pass Parallel Processing. It is the secret sauce behind Palo Alto’s performance. The architecture has two main parts:
- Single Pass Software processes each packet only once, performing all security functions in a single traversal.
- Parallel Processing Hardware uses dedicated processors working side by side to handle different tasks without interfering with each other.
Traditional firewalls use a multi-pass approach. They scan traffic multiple times using separate engines for antivirus, IPS, and URL filtering. Each pass adds delay. Each pass eats CPU power. Palo Alto eliminated this problem by combining everything into one streamlined process.

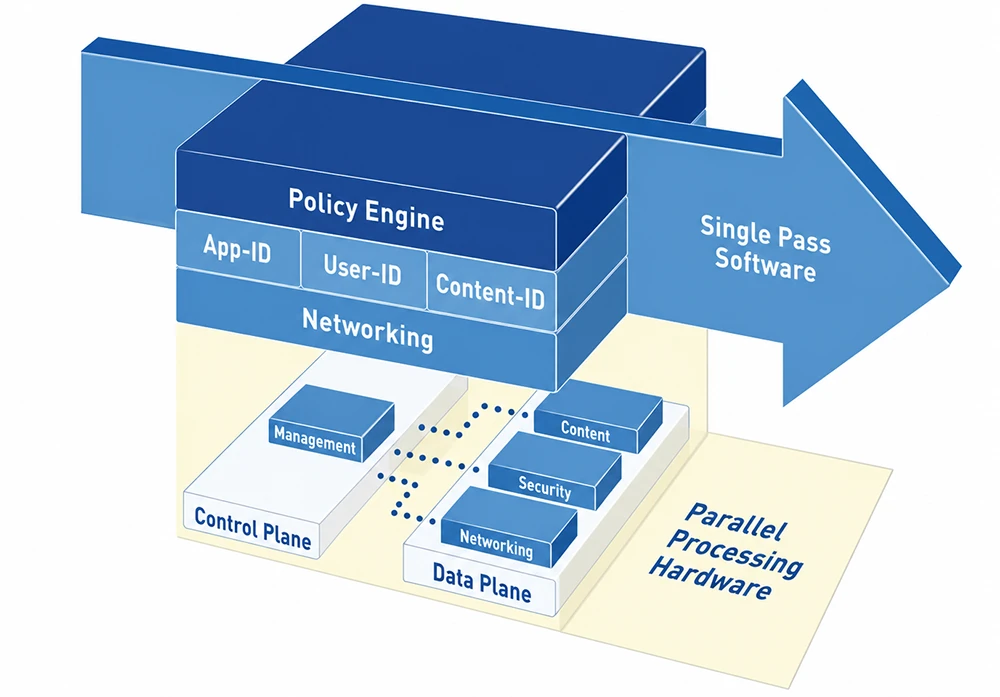

Palo Alto Single Pass Parallel Processing (SP3) Architecture
Single Pass Software
The single pass software in Palo Alto firewalls performs all operations once per packet. When a packet enters the firewall, the software does networking functions, policy lookups, application identification (App-ID), user identification (User-ID), and threat signature matching all in one go.
This approach uses stream-based scanning. Traffic is checked as it flows, not after being stored. There is no need to download entire files before scanning them. This removes the delays that plague traditional proxy-based firewalls.
The result? You get high throughput and low latency even when every security feature is turned on. Plus, you manage one unified policy instead of juggling separate configs for each security module.
Parallel Processing Hardware
One of the most important parts of Palo Alto firewall architecture is the separation between the management plane and the data plane.
What is a Management Plane?
The management plane handles the administrative side of the firewall. This includes configuration, management access, monitoring, logging, reporting, and many control functions.
What is a Data Plane?
The data plane handles the live traffic path. This is where sessions are created, packets are inspected, security policy is enforced, applications are identified, and threats are checked before allowed traffic is forwarded.

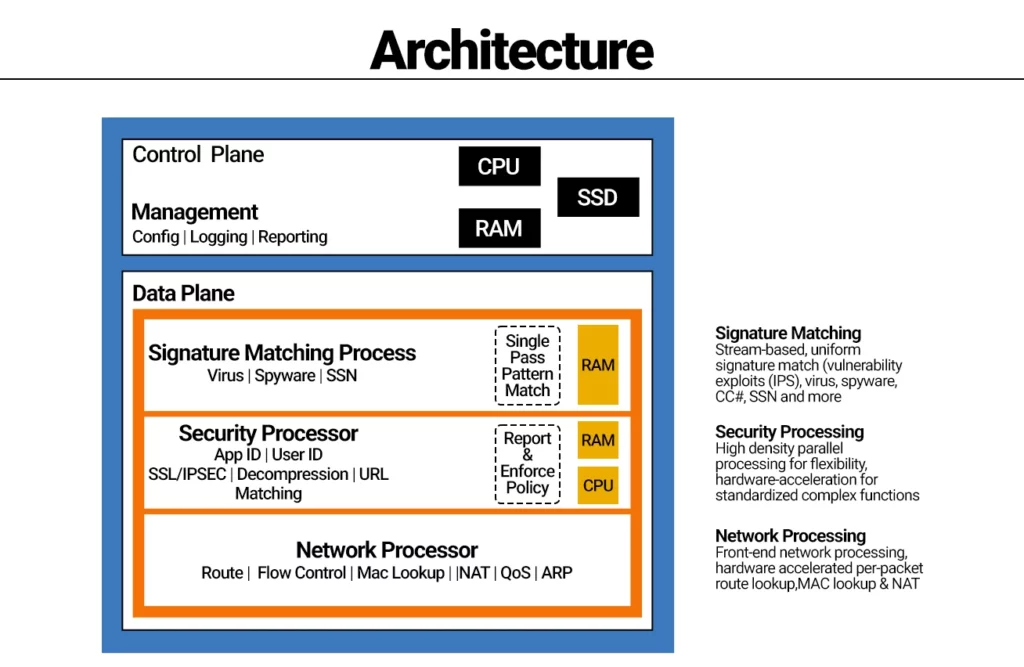

Palo Alto Firewall Control Plane and Data Plane Architecture
What Are the Three Specialized Processors in Palo Alto Firewall Architecture?
Palo Alto hardware uses three types of dedicated processors that work in parallel:
| Processor | Function |
| Security Matching Processor | Handles vulnerability detection and virus scanning using signature matching. |
| Security Processor | Provides hardware acceleration for SSL/IPsec decryption and encryption tasks. |
| Network Processor | Manages routing, NAT, QoS, route lookup, MAC lookup, and network layer tasks. |
How Palo Alto Firewall Architecture Identifies Traffic?
Palo Alto’s architecture supports three powerful identification technologies that set it apart from traditional firewalls.
App-ID
App-ID identifies applications regardless of port, protocol, or encryption. Traditional firewalls classify traffic by port numbers port 80 means web, port 443 means HTTPS. But modern apps can run on any port. App-ID looks deep into the traffic to identify what application is really running. It can spot Skype hiding on port 80 or detect encrypted apps tunneling through HTTPS.
User-ID
User-ID maps IP addresses into real user identities. Instead of writing rules for IP ranges, you can write rules for groups and users. For instance, you can let the marketing team to access social media during their work hours and block everyone else. User-ID integrates Active Directory and other directory services to ensure this mapping.
Content-ID
Content-ID analyzes the content that is flowing via the firewall. It identifies threats and removes URLs as well as blocks file transfer and also prevents data leakage. Content-ID is integrated with WildFire, Palo Alto’s cloud-based Malware analysis service, which identifies zero-day threats that signature-based systems don’t recognize.
Palo Alto Firewall Architecture Diagram
A Palo Alto firewall architecture diagram typically shows how traffic flows through the system.

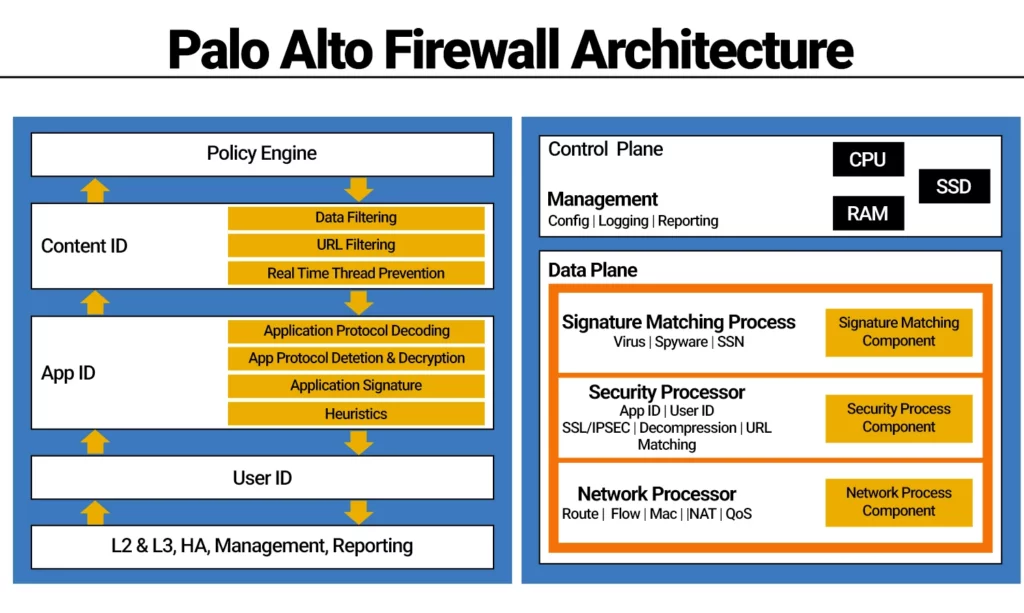

Palo Alto Firewall Architecture Overview with All Components
Here is a simple breakdown of the flow:
• Traffic enters the firewall through the network interface.
• The Network Processor handles routing, NAT, and flow lookup.
• The Security Processor performs SSL decryption and hardware acceleration.
• App-ID identifies the application, User-ID identifies the user, and Content-ID scans for threats.
• Policy lookup happens in a single pass.
• The traffic is allowed, blocked, or inspected further based on the policy.
On the side, the control plane runs management functions, handles logging, and generates reports; completely independent from the data plane traffic processing.
What Role Does PAN-OS Play in Palo Alto Firewall Architecture?
Palo Alto firewall architecture is incomplete without PAN-OS. It is an operating system running on each Palo Alto firewall. It is the powerhouse behind SP3s engine, handles the three IDs and offers the CLI and web interface that administrators utilize every day. PAN-OS handles all traffic equally. No matter if it’s encrypted SSL traffic or plain HTTP or a custom protocol, PAN-OS uses a similar inspection pipeline. This consistency will make the design reliable. There are no various tools for different types of traffic.
The latest versions of PAN-OS incorporate machine learning models that run directly on firewall hardware. These models can identify unknown threats without having to rely on cloud signatures. This gives you an additional layer of protection even in air-gapped environments.
Best Practices for Palo Alto Firewall Architecture Deployment
Getting the architecture right in your network is just as important as understanding it. Here are some practical tips:
- Place the firewall at strategic points that include the internet edge, data center perimeter, and between internal network segments.
- Enable SSL decryption to inspect encrypted traffic, but start with a small scope and expand gradually.
- Use App-ID based policies instead of port-based rules for better security.
- Integrate User-ID with your directory services from day one.
- Size your firewall properly, i.e., considering concurrent sessions, throughput, and SSL decryption load.
- Set up high availability (HA) pairs for critical segments to avoid single points of failure.
Understanding Palo Alto Firewall Architecture is only the first step. To confidently configure, manage, and troubleshoot Palo Alto Firewalls in real-world environments, practical hands-on experience is essential. If you’re looking to build job-ready firewall skills, explore PyNet Labs’ Palo Alto Firewall Training to learn through live instructor-led sessions, hands-on labs, and real-world deployment scenarios.
Palo Alto Next Generation Firewall vs Traditional Firewalls
To truly appreciate Palo Alto’s architecture, it is important to compare it with traditional firewall approaches. Let’s compare the both.
| Feature | Palo Alto NGFW | Traditional Firewall |
| Traffic Processing | Single pass that means all checks in one go | Multi-pass that means = separate scans per feature |
| App Detection | App-ID identifies apps by behavior | Port-based and with limited visibility |
| User Awareness | User-ID maps IPs to user names | IP-based policies only |
| Threat Inspection | Stream-based, no file download needed | Proxy-based, files downloaded first |
| Performance Impact | Minimal even with all features on | Degrades as more features activate |
Frequently Asked Questions
Q1 What is Palo Alto’s architectural style?
Palo Alto’s architectural style is commonly described as Single Pass Parallel Processing (SP3). It combines efficient single-pass inspection with parallel hardware processing and separates management responsibilities from live traffic inspection responsibilities.
Q2 What is the 3 tier architecture of a Check Point firewall?
Check Point’s common three-tier model includes Security Gateway, Security Management Server, and SmartConsole. The gateway enforces traffic security, the management server stores and pushes policy, and SmartConsole is the admin interface.
Q3 Is firewall a layer 2 or 3?
A firewall is not limited to only one layer. Traditional firewalls mainly work around Layer 3 and Layer 4 decisions, while next-generation firewalls inspect more deeply. Palo Alto can also be deployed in Layer 2, Layer 3, or virtual wire modes depending on the network design.
Q4 What is HA1 and HA2 in Palo Alto?
In Palo Alto high availability, HA1 is the control link used for hello messages, heartbeats, state information, and configuration-related communication. HA2 is the data synchronization link used to sync sessions, forwarding tables, IPsec associations, and ARP information between HA peers.
Conclusion
Palo Alto firewall architecture changed the game in network security. The SP3 design solves the performance problem that affects older firewalls. By inspecting traffic only once and utilizing several processors at the same time, Palo Alto delivers strong security and does not slow your network.
If you’re a beginner getting started or a professional preparing the deployment, understanding the architecture is an important skill in the current security landscape.
Start small. Learn the components. Build your knowledge step by step. Palo Alto’s architecture may seem complex at first, but once you grasp the core ideas, everything clicks into place.
