Introduction
Digital networking is the backbone of modern life, enabling our computers to communicate and share information quickly and efficiently. The foundation of every wired network is a single item: networking cables. Networking cables provide high-speed, secure, and reliable connections between computers and devices in homes, offices, data centres, and large companies.
In this blog, we will examine what networking cables are, how they can be used, the various types of networking cables, and how to determine which networking cable is best for your network infrastructure.
Before discussing the 4 types of networking cables, let’s first understand what networking cables really are.
What Are Networking Cables?
Networking cables refer to cable technologies such as fibre-optic and coaxial cable that are used to transmit data between computers, routers, switches, servers, and other forms of network-enabled devices. Networking cables transmit data via electrical, optical, or electromagnetic signals, depending on their cable type and technology.
Networking cables are required for:
- Establishing wired networks (LAN, WAN)
- Reliable internet connectivity
- Voice and video communication systems
- Data transfer and storage operations
Even in the era of Wi-Fi, wired networking remains crucial due to its unmatched performance and stability.
Why Networking Cables Are Still Important?
Wired networks deliver advantages that wireless technology cannot fully replicate:
- Higher bandwidth capacity
- Minimal signal loss and interference
- Advanced security and controlled access
- Lower latency and faster data transfer
- Consistent performance over long durations
This is why almost every sector, including IT, telecom, banking, cloud computing, research facilities, and industry automation, continues to rely heavily on networking cables.
Let us now move on to our next section, where we will discuss the 4 types of networking cables.
Types of Cables in Networking
There are mainly 4 types of cables in networking, each built to support specific speeds, applications, and environments.
The most commonly used include:
| Type of Networking Cable | Transmission Medium | Typical Speeds | Common Applications |
| Twisted Pair Cable | Electrical signals | Up to 10 Gbps | LANs, office internet, VoIP |
| Coaxial Cable | Electrical signals | Up to 1 Gbps | Cable internet, CCTV |
| Fiber Optic Cable | Light pulses | 100 Gbps and above | Data centers, long-distance networks |
| USB Cable (networking-enabled use cases) | Electrical signals | Up to 40 Gbps | Device-to-device connectivity |
While there are multiple variations, the most widely accepted 4 types of cables in networking are:
1. Twisted Pair Networking Cables
Ethernet cabling has become the most popular form of cable used currently. Ethernet cables consist of twisted pairs of copper wire, which provides resistance to electrical interference.
Two major variants:
- UTP or Unshielded Twisted Pair is cost-effective and suitable for use in offices and homes
- STP (shielded twisted pair) provides better protection against electrical interference and is typically used in industrial applications or noisy environments.
Categorization (based on performance):
Cat5, Cat5e, Cat6, Cat6a, Cat7, Cat8: Higher category equals stronger frequency support and higher data speed. Below, we have discussed each twisted-pair networking cable type in detail in a tabular form.
| Category | Bandwidth | Data Rate | Use-case |
| Cat1 | 1 MHz | 1 Mbps | Old phone lines and basic voice calls |
| Cat2 | 4 MHz | 4 Mbps | Token ring networks and old computer systems |
| Cat3 | 16 MHz | 10 Mbps | Phone systems and early Ethernet networks |
| Cat4 | 20 MHz | 16 Mbps | Token ring networks in offices |
| Cat5 | 100 MHz | 100 Mbps | Basic Ethernet and home internet |
| Cat5e | 100 MHz | 1 Gbps | Home and office networks, most common type |
| Cat6 | 250 MHz | 1 Gbps | Fast office networks and gaming setups |
| Cat6a | 500 MHz | 10 Gbps | High-speed business networks and data centers |
| Cat7 | 600 MHz | 10 Gbps | Professional data centers and server rooms |
| Cat8 | 2000 MHz | 25-40 Gbps | Ultra-fast data centers and cloud computing |
How Twisted Pair Cable Works?
- Transmitter sends equal and opposite signals on each wire pair.
- Twisting keeps wires close so external EMI induces nearly equal noise.
- Differential receiver subtracts the pair, cancelling common noise.
- Result: reduced crosstalk and interference, cleaner signals, reliable data transmission.
These cables primarily used for:
- Local area networks (LAN)
- IP Cameras
- VoIP Phones
- Computer and Server connectivity

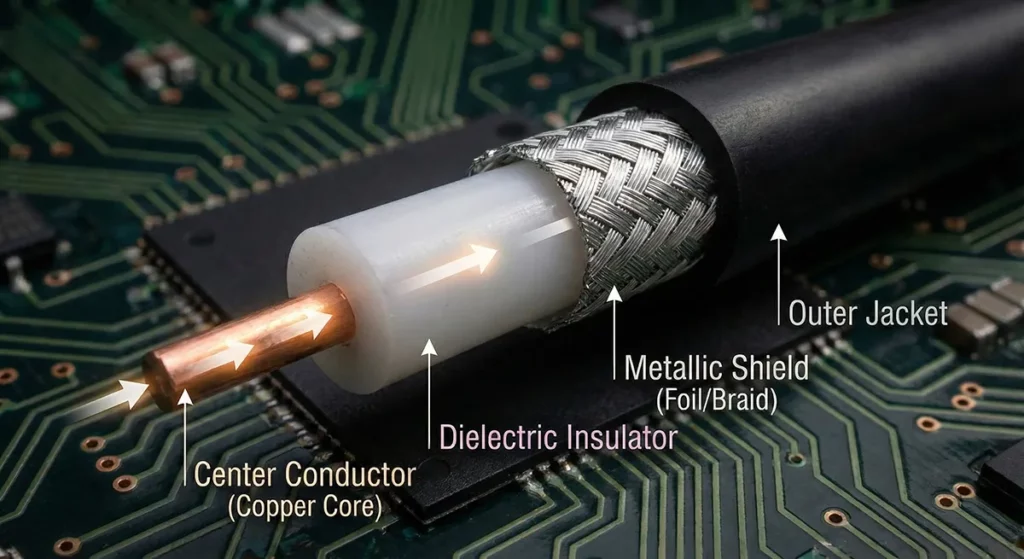

2. Coaxial Networking Cables
Coaxial cables wrap a copper wire with layers of protection and shielding. This design makes them strong and blocks outside signals from causing problems. Today, most networks use twisted pair cables instead of coaxial ones. But coaxial cables still connect cable TV and internet service to homes across the world.
But the question now arises is “How does Coaxial cable actually work?” Let us discuss its functioning in detail.

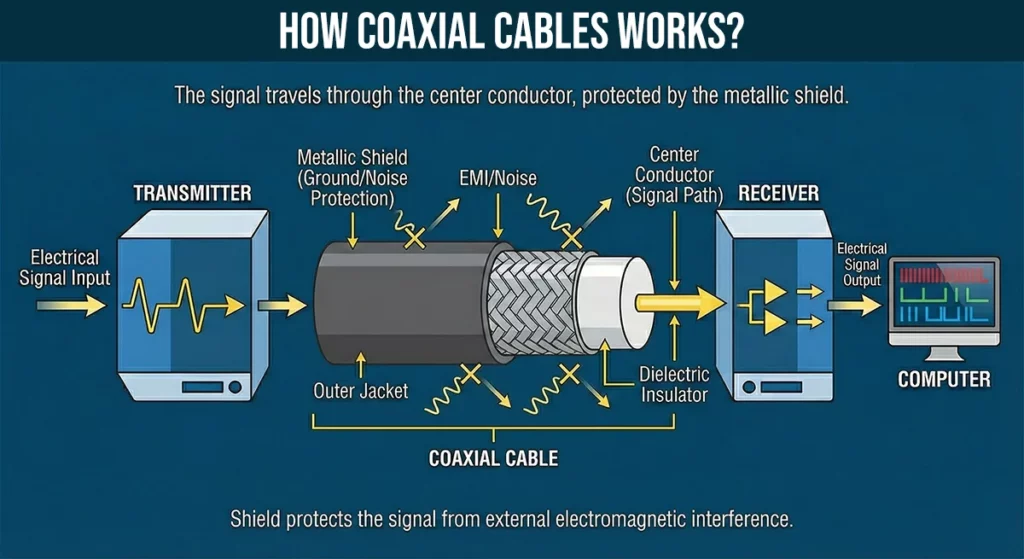

How Coaxial Cable Works?
Electrical signals travel down the center copper conductor from the transmitter to the receiver. The metal shield acts like a fence that blocks outside interference and noise. This keeps the signal clean and strong. The dielectric insulator separates the center wire from the shield. This design prevents signal loss during transmission.
Still used for:
- Broadband Cable service
- Television Distribution Network
- CCTV Security Monitoring System
Most modern networks now use twisted pair cables instead of coaxial cables. But coaxial cables are still helpful because they’re more durable and better at handling noise.

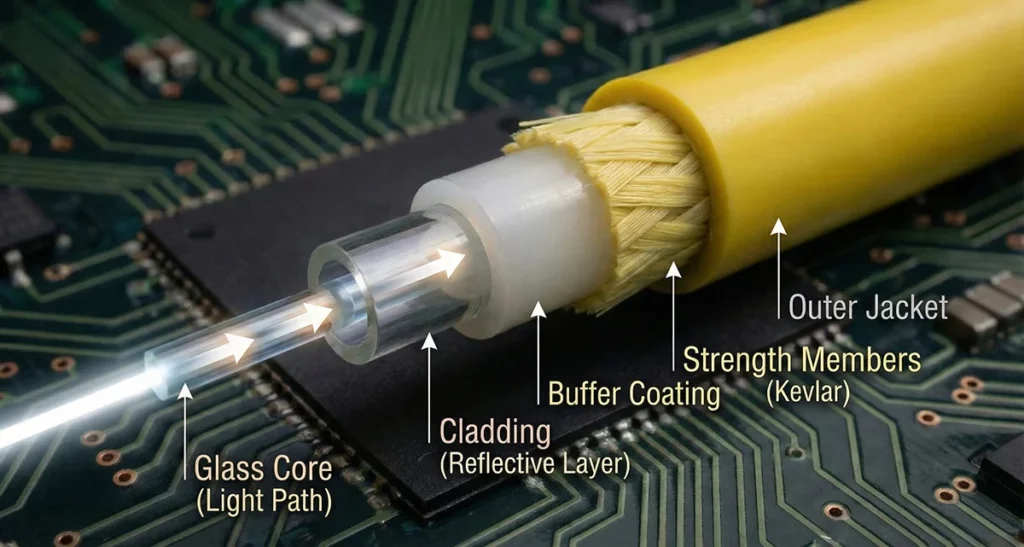

3. Fiber Optic Networking Cables
Fiber optic cables contain thin glass strands thinner than human hair. Each strand sits inside protective layers of plastic and rubber coating. The glass core stays pure and smooth. Manufacturers bundle hundreds of these strands together. Strong outer jackets protect the delicate glass fibers from damage during installation and use.
Below, we have discussed the working of fiber optics in detail.
How Fiber Optic Cable Works?
Light pulses carry data through the glass core at incredible speeds. The light bounces off the walls and travels straight down the fiber. Different light patterns represent different pieces of information. Transmitters convert electrical signals into light. Receivers convert light back into electrical signals that computers can understand.
Two main types:
- Single mode is typically used for long-distance communications by Internet Service Providers (ISPs) and telecommunications companies.
- Multi-mode is typically used for short-distance, high-speed communications within commercial buildings.
Ideal for:
- Internet Backbone Networks
- Data Center or Cloud Infrastructure
- High-Performance Enterprise Networks
Fiber optic cables provide unparalleled performance; however, they require specialized equipment and a specialized labor force to install.
4. USB Cables for Networking Purposes
These cables mainly connect devices like printers and hard drives to your computer. You can also use them to link a few computers together or connect your phone to the internet.
Primarily used for:
- Connecting computer peripherals (i.e., printer, external hard drive)
- Device to Device data transfer
- Temporary bridging the network between Laptops and other Mobile Devices.
- Supports high speeds at short distances.
Networking Cables vs Wireless Networks
| Factor | Wired Network (via Cables) | Wireless Network (Wi-Fi) |
| Speed | Higher and continuous | Fluctuates based on interference |
| Security | Stronger control and encryption | More vulnerable to unauthorized access |
| Reliability | Very stable | Depends on signal surroundings |
| Coverage | Limited to cable length | Wide but signal degrades with walls/distance |
Both technologies co-exist, but wired networks dominate where maximum performance and security are mandatory.
How to Choose the Best Networking Cable?
The best choice depends on your environment and performance needs. Key decision factors:
- Required data speed (e.g., Gigabit or higher)
- Expected distance between devices
- Electromagnetic interference in the surroundings
- Budget and future scalability plans
Recommended modern setup:
- Fiber optic for backbone cabling
- Cat6 or Cat6a twisted pair for internal Ethernet connections
This combination supports excellent future-proofing.
Best Installation Practices for Networking Cables
- Maintain proper cable management using structured cabling methods
- Avoid sharply bending or stretching cables
- Ensure power and data cables are separated to reduce interference
- Secure and label all cable endpoints clearly
- Use certified connectors such as RJ-45 for Ethernet cabling
- Periodically test performance to detect faults early
Following these practices to ensures efficient data flow and minimizes downtime.
Future of Networking Cables
The demand for data continues to grow due to cloud adoption, 5G, artificial intelligence, and the expansion of IoT. This is driving advancements in networking cable technology, including:
- Greater use of fiber optics for mainstream networks
- Higher bandwidth categories in twisted pair cables
- Tougher shielding for industrial environments
- Better sustainability and energy-efficient manufacturing
Networking cables will remain essential as the global digital ecosystem expands.
Frequently Asked Questions
Q1. What are the most commonly used networking cables today?
Twisted pair Ethernet is still the most widely used type of network cabling, including Cat 5e, Cat 6, and Cat 6A cables.
Q2. What is the fastest type of networking cable?
Fiber-optic cable is the fastest networking cable available today. It uses light signals to send data and does this with extreme efficiency.
Q3. How many major types of cables exist in networking?
Twisted-pair (Cat), coaxial, and fiber-optic are the primary types of cable used to build networks. Each type of cable has advantages with respect to speed, durability, and how it can be used, as they relate to the number of devices connected within a given network.
Q4. Which cable is best for home networks?
The best networking cable to use in most homes is Cat6 cable. It provides gigabit throughput, is EMI-resistant, and offers a reasonable degree of protection against network interference.
Conclusion
Today’s communication needs many different networks to send data quickly, safely, and without problems. These networks support organisations with varying degrees of complexity, from home-based user environments to the corporate enterprise level. Understanding the various types of network cables used to transfer data between devices helps you build a scalable network that delivers optimal performance. Foundational training like a CCNA course helps highlight just how important it is to understand the different types of network cables and how they function. With this knowledge, you’re better equipped to design and build a scalable network that delivers strong, reliable performance.
