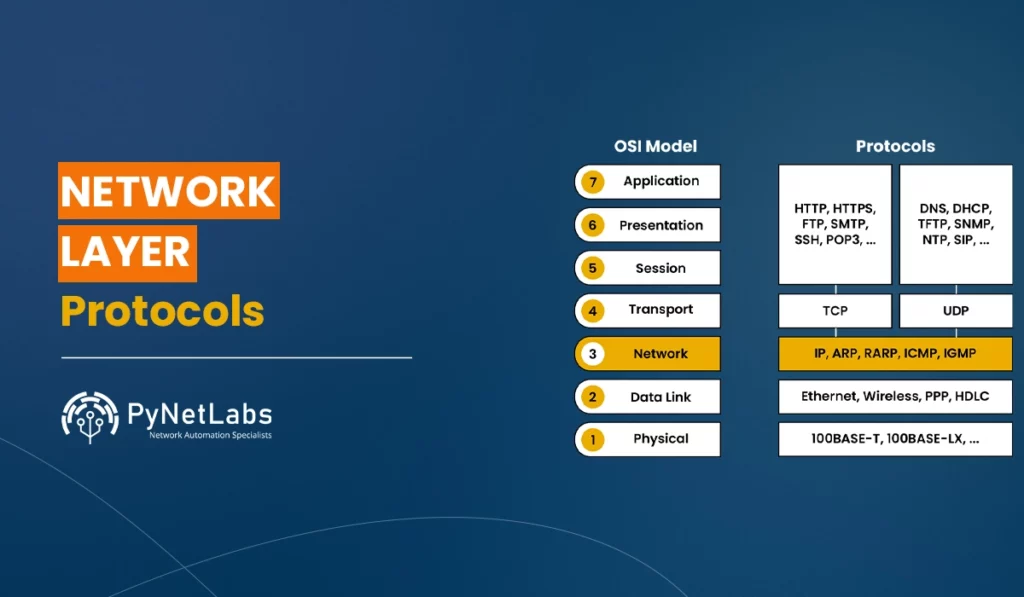

Network Layer Protocols: IP, ARP, RARP, ICMP, IGMP Guide

Introduction

In a network, data doesn’t always move between rooms or in one office. It usually travels through a variety of networks including routers and links before it finally reaches the right device. This is where the Network Layer comes into action. Network layer or Layer 3 of the OSI model handles the logical addressing and allows packets to travel from a source host to destination host across different networks. It also allows routing, which is selecting a route for packets.

In modern networking, we use cloud apps, video calls, online games, and IoT devices every day. All of these depend on fast and correct packet delivery. Network layer protocols make this possible. In this blog, we will discuss what network layer protocols are, along with their functioning.

Before getting into network layer protocols, let us first understand the functioning of the network layer.

Core Functions of the Network Layer

The Network Layer is not just “one protocol.” It is a set of duties that makes end-to-end delivery possible. Here are the core functions, explained in simple terms.

Logical Addressing (IP Addressing)

• The Network Layer gives devices logical addresses, mainly IP addresses.

Host-to-Host Delivery

• This layer supports delivery from one host to another host.

Routing (Path Selection)

• Routing decides which path a packet should take.

Forwarding (Next-Hop Movement)

• Forwarding is the actual action of sending packets out of a router interface. Routing decides the plan. Forwarding executes the plan.

Fragmentation

• Sometimes data is too large for a network link. The Network Layer may break large data into smaller packets (fragments).

Congestion Control (Traffic Pressure Handling)

• Congestion happens when too many packets flood the network.

The Network Layer includes methods and signals to manage this.

Let us move on to our main section where we will discuss about network layer protocols.

Network Layer Protocols: What They Are and Why They Matter

Network layer protocols are the rules that help devices and routers deliver packets across networks. Each protocol has a specific job. Some carry user data (like IP). Others support delivery by resolving addresses or reporting problems.

In this blog, we will cover the most common network layer protocols taught in computer networks:

• IP (IPv4 and IPv6)
• ARP
• RARP
• ICMP
• IGMP

IP (Internet Protocol)

Internet Protocol is the star of network layer protocols. It gives every device a unique address. IP handles packet routing across networks. IP handles packet routing across networks. Reliability is provided by higher-layer protocols such as TCP.

IP is a connectionless protocol. This means it does not set up a dedicated path before sending data. Each packet travels independently. They might even take different routes to reach the same destination.

Let me explain the two versions of the IP.

IPv4: The Classic Version

IPv4 has been in use since the beginning of the Internet. It is an address system with 32 bits. This is about 4.3 million unique addresses. Sounds like a lot, right? But with smartphones, laptops, and smart devices everywhere, we ran out of addresses.

IPv4 addresses look like this: 192.168.1.1. Four numbers are separated by dots. Each number ranges from 0 to 255. This format is easy for humans to read and remember.

IPv4 divides addresses into five classes:

• Class A: Large networks with millions of hosts
• Class B: Medium-sized networks
• Class C: Small networks with up to 254 hosts
• Class D: Reserved for multicasting
• Class E: Reserved for experimental use

You can configure IPv4 manually or through DHCP servers. However, IPv4 lacks built-in security features. It does not support encryption or authentication natively.

IPv6: The Future of Internet

IPv6 solves the address shortage problem. It uses 128-bit addresses. This creates a practically unlimited number of unique addresses. We are talking about 340 undecillion addresses. That is a number with 36 zeros!

IPv6 addresses look different. They use hexadecimal format: 2001:0db8:85a3:0000:0000:8a2e:0370:7334.

Longer, yes. But it is necessary for our growing digital world.

Key features of IPv6 include:

• Built-in security with encryption and authentication
• Auto-configuration without DHCP servers
• Better support for mobile devices
• No more broadcasting; uses anycast instead
• End-to-end connection integrity

Most new networks now support IPv6. Older networks are slowly transitioning.

ARP (Address Resolution Protocol)

ARP acts as a bridge between physical and logical addresses. The device you are using has two addresses. The first is the IP address that the software assigns to your device. It is also the MAC address that is burned into your device.

When you transmit data on a local network, ARP helps find the MAC address. As part of network layer protocols, it transforms the IP address into the corresponding MAC address. If this isn’t done, information can’t be transferred to the physical device.

How ARP Works

Imagine you want to send data to 192.168.1.5 on your local network. Your device knows the IP but not the MAC address. Here is what happens:

1. Your device broadcasts an ARP request to all devices
2. The request says, “Who has 192.168.1.5? Tell me your MAC address”
3. All devices receive this broadcast
4. Only the device with 192.168.1.5 responds
5. It sends back its MAC address
6. Your device stores this info in its ARP cache
7. Data transmission begins

The ARP cache saves time. Your device remembers MAC addresses for a while. Next time you send data to the same IP, it skips the broadcast step.

Types of ARP Entries

• Static Entry: You manually add IP-to-MAC mappings. These do not expire. Network admins use them for critical devices.
• Dynamic Entry: The ARP protocol creates these automatically. They expire after some time. Most entries in your ARP table are dynamic.

RARP (Reverse Address Resolution Protocol)

RARP does the opposite of ARP. It converts MAC addresses to IP addresses. Some devices know their hardware address but not their IP address. RARP helps them find out.

Diskless workstations commonly use RARP. These machines boot from the network. They have MAC addresses but need IP addresses to communicate. As one of the Network layer protocols, RARP ensures these devices can properly initialize their network connection.

How RARP Works

1. A device broadcasts its MAC address to the network
2. The RARP server receives this request
3. The server looks up the MAC address in its table
4. It finds the matching IP address
5. The server sends the IP address back to the device
6. The device configures itself with this IP

RARP servers contain a database of MAC-to-IP mappings. RARP requests can only be answered by these servers. Modern networks do not need RARP; they use DHCP. However, understanding RARP will help you understand how address resolution developed.

ICMP (Internet Control Message Protocol)

ICMP is one of the Network Layer Protocols which is known as the Network protocol troubleshooter. It records errors and gives diagnostic information. ICMP notifies you when something goes wrong. ICMP works within the IP protocol suite. It uses IP to carry its messages. However, ICMP itself does not guarantee delivery. It is a best-effort protocol like IP.

What ICMP Does

Network feedback reaches the original sender through ICMP. If a router cannot forward your packet, it sends an ICMP message back. This helps identify problems quickly.

Common ICMP error types include:

• Destination Unreachable: The packet cannot reach its target
• Time Exceeded: The packet took too long and was discarded
• Source Quench: The sender should slow down
• Parameter Problems: Something is wrong with the packet header
• Redirection: Use a different route next time

How ICMP Works

You probably use ICMP daily without knowing. The ping command runs on ICMP. When you ping a website, here is what happens:

1. Your device sends an ICMP echo request
2. The target device receives it
3. If active, it sends back an ICMP echo reply
4. Your device calculates the round-trip time

Network admins love ping. It quickly shows if a device is reachable. Traceroute also uses ICMP. It maps the path packets to take across networks.

ICMP Message Types

ICMP messages fall into two categories:

• Error Messages: Report problems in packet processing. Routers or hosts generate these when something fails.
• Query Messages: Gather information from other devices. Ping uses query messages to test connectivity.

IGMP (Internet Group Message Protocol)

IGMP is also one of the network layer protocols that handle multicast communication. Sometimes you need to send data to many devices at once. Streaming videos for thousands of viewers are a good example. Sending individual copies to each viewer wastes bandwidth.

Multicasts solve this problem. The sender transmits it once. Routers copy and distribute the data to group members. IGMP manages these multicast groups.

What IGMP Does

IGMP works between hosts and multicast routers. It allows devices to join or leave multicast groups. The router keeps track of which devices want which streams.

Common uses of IGMP include:

• Live video streaming
• Online gaming
• Web conferencing
• Stock market updates
• IP television

How IGMP Works

1. A host wants to receive a multicast stream
2. It sends an IGMP join message to the local router
3. The router adds the host to the group
4. Multicast traffic flows to that host
5. When done, the host sends a leave message
6. The router removes the host from the group

IGMP uses Class D IP addresses for multicast groups. These range from 224.0.0.0 to 239.255.255.255. Each group has a unique address within this range.

Without IGMP, multicast routers would flood networks with unnecessary traffic. IGMP ensures only interested devices receive multicast data. This efficient resource usage makes large-scale streaming possible.

Turn Networking Knowledge Into a Real Job Opportunity

Understanding network layer protocols like IP, ARP, and ICMP is just the beginning. At Pynet Labs, our CCNA training includes hands-on labs, real troubleshooting practice, and dedicated placement support to help you land networking roles.

Comparison of Key Network Layer Protocols

Frequently Asked Questions

Q1. What is the network layer of protocols?

This layer is responsible for the routing of data between various networks. It utilizes the logical address, typically IP to find which is the most effective route for the packets.

Q2. What are the 7 layers of protocol?

The OSI models layers include

• Physical
• Data Link
• Network
• Transport
• Session
• Presentation
• Application

Q3. What is L1, L2, L3, and L4 in networking?

L1 is physical signals and cables. L2 is frames and MAC. L3 is routing with IP. L4 is end to end delivery, TCP or UDP.

Q4. What are the 7 network protocols in a computer network?

The most important examples of the stack comprise Ethernet, IP, TCP, UDP, HTTP, DNS, and FTP. These standards cover all aspects of physical connectivity all the way to internet browsing.

Conclusion

The network layer protocols are crucial to modern networking as they allow the delivery of packets over the networks. IP (IPv4 and IPv6) offers logical addressing and routing to enable packets to traverse from one network to another. ARP addresses local delivery through the mapping of IP addresses to MAC addresses. RARP presents the opposite concept, in which a host can acquire an IP address by using a server-assisted MAC address. ICMP is similar to the reporting system of the network, and it transmits diagnostic and error messages (including echo request/reply used by ping). IGMP multicast assists in managing group membership, enabling networks to transmit a single stream to numerous receivers in an efficient manner.
