Introduction
The Open Systems Interconnection (OSI) model consists of seven different layers that together form a framework for understanding communication between devices on a network; each layer of this model has its own specific function, thus providing standardization and predictability for communications across different systems within an organization. A key example of this is the Network Layer in OSI model (Layer 3); it is one of the most critical layers of the OSI Model because it facilitates the delivery of data to the destination across multiple networks through an end-to-end delivery process.
In this blog, we will learn what the OSI model Network Layer does, why it is so important, what are the various ways it works, and what functions and responsibilities it is responsible for when working on an actual network.
Before getting into more details, let us first understand the most asked question “What is Network Layer?”

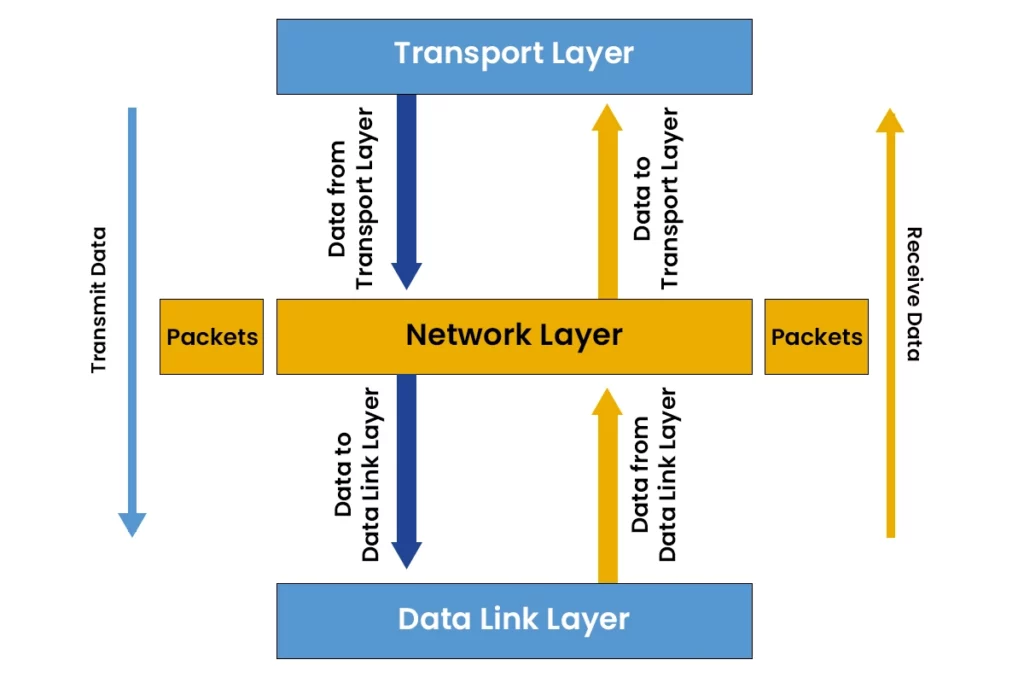

What is Network Layer?
The Network Layer in OSI Model is responsible for delivering data from a sender to a receiver across one or more different networks (not just within the same local network). For example, when data travels from one network to another, the Network Layer determines the routing path, including how far the destination is and which intermediate routers and networks the data must pass through to reach its destination.
The network layer is the 3rd layer of the OSI model, and it is responsible for:
- Provides logical addressing (IP)
- Selects the best route (routing)
- Forwards packets (next-hop delivery)
- Enables inter-network connectivity
- Performs fragmentation and reassembly
- Supports basic traffic handling through routing decisions
In simple terms, the network layer makes sure that data reaches the correct device across networks, not just within the same network, and the layer works with packets. In contrast, the data link layer focuses on delivering frames within a local network.
Want to Build Strong Networking Fundamentals? Learn OSI Model, VLANs, Routing, Subnetting, and Troubleshooting in a structured way with expert trainers at PyNet Labs.
Why the Network Layer is Important?
Without the network layer, communication would be limited to devices within a single local network. The modern internet exists because the network layer allows:
- communication between different networks and subnets
- scalable addressing (billions of devices)
- routing decisions using routers
- structured and efficient packet delivery
Any time a packet travels from your device to a destination outside your local network, it depends on routing and logical addressing, which are core network layer functions.
Core Functions of the Network Layer
1) Logical Addressing (IP Addressing)
The network layer assigns and uses logical addresses so devices can be uniquely identified across networks.
A MAC address works only within the local network, but an IP address works across the Internet.
Example:
- MAC address: used inside your Wi-Fi network
- IP address: used to reach a server on the Internet
Logical addressing ensures data reaches the correct destination network and device.
2) Routing (Path Selection)
Routing is the process of finding the best path for packets to travel from source to destination.
Since there can be multiple routes to the destination, routers use routing algorithms and routing tables to select a path based on factors like:
- shortest path
- least congested route
- fastest route
- policy rules
Routing is not just “finding any path.” It is about selecting a path that is practical and efficient at that time.
3) Packet Forwarding (Next-Hop Delivery)
After a router decides the route, it must move the packet to the next hop.
- Routing = deciding the path
- Forwarding = sending the packet along that path
This is done repeatedly by routers until the packet reaches its destination network.
4) Fragmentation and Reassembly
Different networks may support different maximum packet sizes (MTU: Maximum Transmission Unit). If a packet is too large to travel through a network segment, the network layer can break it into smaller fragments.
- Fragmentation: dividing a packet into smaller fragments
- Reassembly: combining fragments at the destination
This helps packets travel through networks with different MTU limits.
5) Inter-Network Communication
The network layer is the “bridge” layer that enables communication between different networks.
Example:
- Your laptop is on a home Wi-Fi subnet
- The server is on a data center subnet
- Multiple ISPs and backbone networks exist in between
The network layer makes sure packets can cross all these network boundaries.
6) Congestion Control
While congestion control mainly involves the transport layer topic, the network layer supports the traffic management system, which is implemented in practice through different routing choices and packet handling mechanisms.
Network Layer Devices
Routers
Routers are the primary devices working at Layer 3. They:
- read IP addresses
- choose routes
- forward packets between networks
Layer 3 Switches
Some enterprise switches also perform routing functions. They operate as high-speed routing devices inside large networks.
Network Layer Addressing vs Data Link Addressing
A common confusion is between MAC and IP addressing.
- physical address
- assigned to network interface card
- used for local delivery within the same network
- changes as packets move across routers (because each hop uses new frames)
- logical address
- used for delivery across networks
- remains the same from source to destination (in most basic cases)
Packet Structure in the Network Layer
A network layer packet typically includes:
- Source IP address
- Destination IP address
- TTL (Time to Live) or hop limit (prevents infinite loops)
- Protocol field (indicates transport protocol like TCP/UDP in IP)
- Fragmentation info (if fragmentation happens)
- Header checksum (in some protocol versions)
Services Provided by the Network Layer
The network layer can provide different kinds of services depending on the design:
Connectionless Service
- packets are sent independently
- no dedicated path setup
- best effort delivery
Connection-Oriented Service
- a path is established before sending data
- guarantees can be better depending on implementation
In real-world internet IP networking, connectionless service is the common base.
Types of Network Layer Protocols
Different types of Network Layer Protocols are:
- Internet protocol (IPv4 and IPv6)
- Address resolution protocol (ARP)
- Reverse address resolution protocol (RARP)
- Internet control message protocol (ICMP)
- Internet group management Protocol (IGMP)
- Internet Protocol Security (IPSec)
- Multiprotocol Label Switching (MPLS)
Routing Protocols:
Routing Protocols are mainly for determining the best path for data. It includes:
Common Problems the Network Layer Helps Solve
Below, we have discussed some problems and how the network layer in OSI model helps solve these problems.
Problem 1: Multiple Networks (Inter-network Communication)
Layer 2 works within a local network; the Network Layer enables communication between different IP networks using routers.
Problem 2: Choosing the Correct Path (Routing)
When multiple routes exist, routing selects a suitable/best path and routers forward packets hop-by-hop.
Problem 3: Packet Looping
TTL/Hop Limit prevents packets from circulating indefinitely if a routing loop occurs.
Problem 4: Network Growth and Scalability
Logical addressing and subnetting (CIDR) make large networks manageable and scalable.
Problem 5: Addressing Devices Globally (End-to-End Identification)
IP addressing provides a logical, hierarchical way to identify hosts across networks (unlike MACs, which are local-link focused).
Problem 6: Different Link Types / Interoperability
The Network Layer allows communication across heterogeneous networks (Ethernet, Wi‑Fi, fiber, etc.) by providing a common Layer 3 packet format (IP).
Problem 7: MTU Differences (Packet Size Limits)
Different networks have different MTUs. Network Layer handling includes fragmentation (IPv4) and Path MTU Discovery (commonly used, especially with IPv6, where routers don’t fragment).
Problem 8: Diagnosing Delivery Failures
Control messages like ICMP help with troubleshooting and error reporting (e.g., destination unreachable, time exceeded—used by ping/traceroute).
Network Layer Design Issues
Network Layer design issues include how packets are switched and what service model is exposed upward. In store-and-forward packet switching, each router buffers a full packet, verifies it (e.g., checksum), then forwards it hop-by-hop. The layer must define services for the transport layer that are independent of router technology and that hide the number/topology of routers while using consistent addressing. It may provide connectionless (datagram) service, where packets are routed independently, or connection-oriented service, where a connection is established, used, and released via circuit switching or virtual circuits with in-order delivery.
Frequently Asked Questions
Q1. What are 7 network layers
The 7 Layers in this model are:
- Application
- Presentation
- Session
- Transport
- Network
- Data Link
- Physical
Each layer operates with its unique function while transferring data between devices.
Q2. What is the role of the network layers?
The Purpose of the Networking Layer is to provide Routing and Transmission of Data between the Different Networks. Most of the Protocols Used at this layer is Internet Protocol (IP) and Internet Control Message Protocol (ICMP).
Q3. Which layer is layer 2 on OSI networking model?
Layer 2 of the OSI networking model is the Data Link Layer. It Provides Data Transport (Node to Node), Data Framing, Physical Addressing (MAC addresses), and error detection/Correction between two directly connected nodes.
Q4. What are the examples of OSI models?
An Example of an OSI Layer would be a Protocol or Hardware Associated with One of the Seven Layers of the OSI Model, Application Layer (HTTP, DNS, SMTP), Presentation Layer (SSL/TLS, JPEG), Session Layer (NetBIOS), Transport Layer (TCP, UDP), Network Layer (IP, Routers), Data Link Layer (MAC addresses, Switch, Ethernet), Physical Layer (Cables, Wi-Fi, hubs)
Conclusion
The network layer in OSI model is the backbone of communication across networks. It is the layer that makes the internet work by using logical addressing and routing to deliver packets from one network to another. When someone asks, “What is network layer”, the correct explanation is: it is the layer responsible for path selection and end-to-end packet delivery across different networks.
By managing IP addressing, routing decisions, packet forwarding, and fragmentation support, the network layer in OSI model ensures data can travel reliably from your device to any destination network in the world.
