Introduction
Network Layer Design Issues explains the key design decisions that shape how packets move across networks. These choices determine how the network balances scalability, reliability, and performance when routing traffic across multiple links and routers. The network layer sits between the data link layer and the transport layer. It supports end-to-end delivery across routers and different paths. A strong design improves scalability, stability, and predictable performance. It also reduces the impact of failures during outages and congestion events.
In this blog, we will cover the design issues of network layers with a clear structure and practical context.
Before getting into more details, let us first understand what the network layer is designed to do.
What is the network layer designed to do?
The network layer delivers packets from a source host to a destination host across different networks. It works across multiple physical and logical networks. Routers forward packets using network addresses and routing information. The layer must support different link types, bandwidths, and delays. It must also keep working when links fail or traffic changes suddenly. These goals influence every Network Layer Design Issues decision.
Core Network Layer responsibilities:
- Logical addressing and addressing plan support.
- Routing path selection and routing table updates.
- Forwarding packets at high speed inside routers.
- Congestion handling and queue management signals.
- Fragmentation handling when MTU sizes differ.
- Basic diagnostics and control message support.
Network Layer Design Issues
Below, we have discussed some of the design issues of network layer.
One of the biggest Network Layer Design Issues is the service offered to the transport layer. The two classic options are connectionless service and connection-oriented service. The choice affects router state, reliability assumptions, and performance behavior.

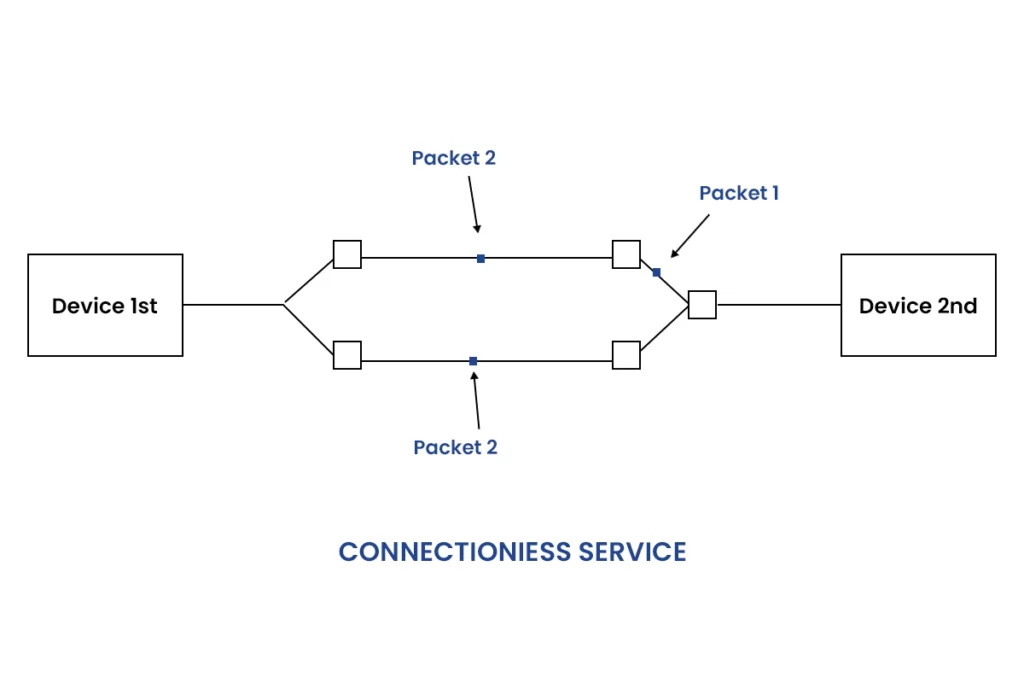

1) Implementation of Connectionless Service (datagram model)
In the datagram model, each packet is routed independently. Routers do not maintain per-flow circuit state. Packets can take different paths based on network conditions. This improves resilience when links fail or traffic shifts. It can also cause packet reordering and varying delays.
Characteristics:
- No setup phase is needed before sending.
- Each packet carries full destination addressing.
- Paths can change during a single transfer.
- Routers keep less per-flow information.

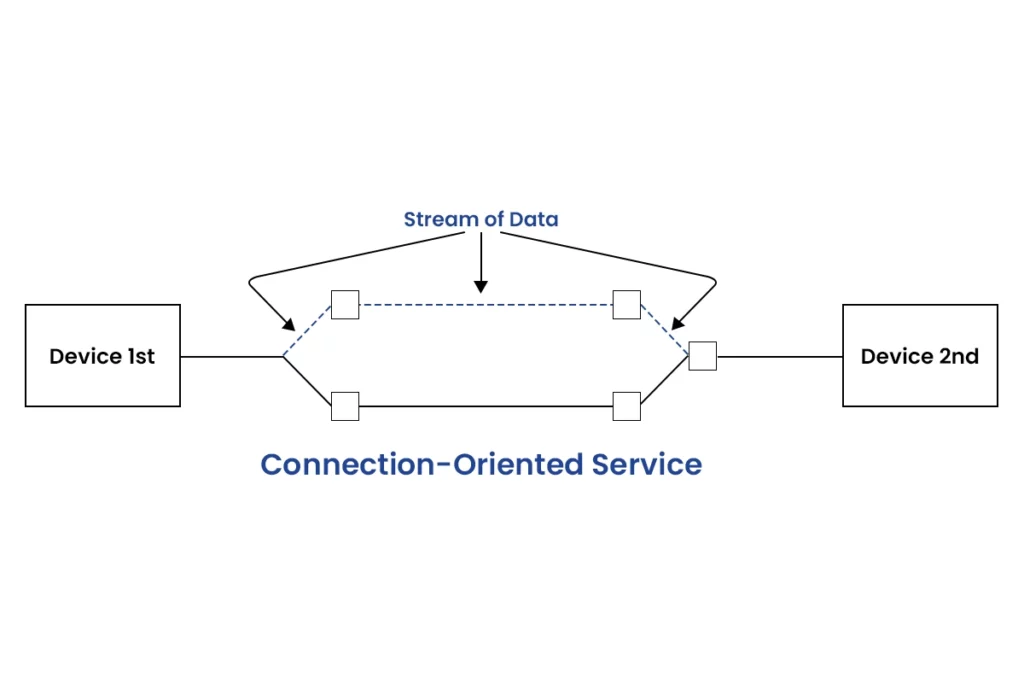

2) Implementation of Connection-Oriented Service (Virtual Circuit Model)
In the virtual circuit model, a setup phase creates a logical path. After setup, packets usually follow the same path. Routers may store state for the circuit. This can support predictable service and QoS control. It can also increase the scaling cost due to the stored state.
Characteristics:
- Setup and teardown phases exist.
- Packets may carry a short circuit identifier.
- Routers store circuit-related forwarding state.
- QoS controls can be easier to enforce.
Datagram vs Virtual Circuit: Quick Comparison
| Factor | Datagram service | Virtual circuit service |
| Setup requirement | No setup required | Setup required |
| Router state | Low per flow state | Per circuit state |
| Route flexibility | High | Lower |
| Ordering | May reorder | Often more stable ordering |
| Failure handling | Often more robust | Can require circuit repair |
| QoS enforcement | Harder | Often easier |
This table highlights why the design issues of network layers depend on business goals. Large scale public networks often favor datagrams. Networks needing strict service control may lean toward virtual circuits.
3) Internal Router Organization: Forwarding vs Routing
A practical Network Layer Design Issues is how routers split forwarding and routing. Forwarding is the fast action done per packet. Routing is the slower process that computes paths and updates tables. A clean separation keeps forwarding fast and stable. It also allows routing to adapt without breaking forwarding performance.
Forwarding plane concerns
Forwarding must be fast and consistent. It must look up a destination and select a next hop. It must apply basic policy checks and queue decisions. It must avoid long per packet processing paths. Hardware support often matters for large deployments.
Control plane concerns
Routing must converge to stable paths after failures. It must balance speed with stability. It must avoid routing loops and oscillations. It must scale with the number of routes and peers. It must also handle policy and administrative constraints.
4) Routing Strategy and Routing Metrics
Routing is central to Network Layer Design Issues because it defines reachability. Routing strategies vary by network size and control needs. Metrics decide what counts as a good path. Poor metrics can trigger unstable route changes.
Common routing algorithm families
- Distance vector style: Routers share distance information with neighbors. They update paths iteratively. This is simpler but can converge slowly in some cases.
- Link state style: Routers share link state and build a network map. They compute shortest paths locally. This can converge faster but uses more control traffic.
- Hierarchical routing: Networks are grouped to reduce table growth. Route aggregation becomes easier. This supports scaling across large networks.
Common Routing Metrics
| Metric | What it tries to optimize | Typical tradeoff |
| Hop count | Fewer routers per path | May ignore bandwidth or delay |
| Delay | Lower latency paths | Delay can vary with load |
| Bandwidth | Higher capacity paths | Can ignore congestion and jitter |
| Loss rate | More reliable links | Loss measurements can lag |
| Admin cost | Policy based preference | Not always shortest or fastest |
Routing is not only technical. Policy can override the best metric path. This often happens in inter-domain routing environments.
5) Congestion Control and Queue Behavior
Congestion happens when traffic demand exceeds network capacity over time. It causes rising delay, buffer growth, and packet loss. Congestion control is a major design issue in the network layer. The network can react using dropping, marking, or scheduling decisions.
What can the network layer do during congestion?
- Drop packets when buffers fill.
- Drop early to prevent a full buffer overflow.
- Mark packets to signal congestion to endpoints.
- Shape traffic at edges to reduce burst impact.
- Police flows that exceed agreed rates.
- Schedule packets to improve fairness and latency.
Buffer Sizing and Tradeoffs
| Choice | Benefit | Risk |
| Large buffers | Lower immediate loss | Higher delay and jitter |
| Small buffers | Lower delay spikes | Higher loss during bursts |
The correct choice depends on the application mix and network goals. Latency-sensitive traffic needs careful queue design.
6) Quality of Service (QoS) and Traffic Differentiation
Not all applications need the same treatment. Voice and video need low delay and stable jitter. File transfer needs throughput and can tolerate some delay. QoS is a key Network Layer Design Issues topic for enterprise and service networks.
QoS tools used in practice
- Classification of packets into traffic classes.
- Scheduling using multiple queues and priorities.
- Shaping to smooth bursty traffic.
- Policing to protect the network from abuse.
- Admission control in reserved resource systems.
QoS Approaches: Comparison
| Approach | How it works | Best for |
| Over provisioning | Add capacity so congestion is rare | Simpler operations |
| Prioritization | Prefer some queues over others | Real time traffic |
| Reservation | Allocate resources per flow | Strong service guarantees |
QoS adds operational complexity. It must be planned with clear objectives.
7) Addressing and Scalability Decisions
Addressing is not only about identifying devices. It impacts the routing table size and aggregation. A good plan supports growth and easier route summarization. This is one of the most practical Network Layer Design Issues topics.
Key addressing design points
- Keep addresses hierarchical where possible.
- Support route aggregation to reduce table size.
- Plan for multi-homing and redundancy.
- Avoid frequent renumbering requirements.
- Align addressing with administrative boundaries.
Poor addressing design increases control plane load. It can also slow convergence during failures.
8) Fragmentation and Reassembly Choices
Different links have different MTU sizes. A packet may fit on one link but not another. Fragmentation splits packets into smaller parts. Reassembly rebuilds the original packet at the destination. This is a classic design issue of network layers.
Why fragmentation is costly
- More headers increase overhead.
- Losing one fragment can drop the whole packet.
- More processing can reduce throughput.
- Fragmentation can increase jitter under load.
Many networks prefer avoiding fragmentation using MTU discovery. This reduces router workload and improves reliability.
9) Error Handling and Diagnostic Support
A network must provide feedback when delivery fails. It must also support troubleshooting. Control messages can report unreachable destinations or time-exceeded events. These messages help operators diagnose problems. They also help endpoints adapt to changes.
Good diagnostic design principles
- Provide useful signals with minimal overhead.
- Rate limit control messages during failures.
- Avoid generating control storms in outages.
- Protect against forged control message abuse.
Diagnostics should improve visibility without adding instability.
10) Security and Policy Enforcement
Security is now part of Network Layer Design Issues in real networks. Attackers can spoof addresses or flood traffic. Routing can be manipulated by bad announcements. Networks need filtering and strong policy enforcement.
Common network layer security controls
- Ingress filtering to reduce spoofed sources.
- Access control rules for segmentation.
- Rate limiting to reduce flood impact.
- Monitoring to detect route anomalies quickly.
- Secure routing practices and strict peering policies.
Security controls must be balanced with operational simplicity. Over-complex rules can cause outages and misroutes.
Frequently Asked Questions
Q1. What are the 4 design issues of data link layer?
Framing, error control, flow control, and medium access control. Together, they define how frames are formed, protected, paced, and shared on a link.
Q2. What are the layers of network design?
Network design commonly follows layered models like the OSI or TCP IP. Layers include Physical, Data Link, Network, Transport, Session, Presentation, and Application.
Q3. Is HTTP layer 4 or 7?
HTTP is a Layer 7 protocol in the OSI model. It runs above TCP at Layer 4, which provides reliable transport for HTTP messages.
Q4. What are the 4 components of a network?
Four basic components are end devices, intermediary devices, transmission media, and network services or protocols. Together, they enable communication, forwarding, signaling, and applications.
Conclusion
Network Layer Design Issues shape how well a network performs under real conditions. The layer must balance scalability, speed, stability, and service expectations. Routing and metrics must converge quickly without oscillations. Congestion and QoS decisions must protect latency and fairness. Addressing must support aggregation and long-term growth. Fragmentation choices must avoid unnecessary overhead and loss. Diagnostics and security must be strong but controlled. When these choices align, the network becomes reliable and easier to operate.
