Definition: Network automation architecture is the design structure that includes tools, data, workflows, and devices that you need to use for automation. It shows how network teams collect information, make decisions, execute changes, and validate results in a safe manner.
As networks become more complex, manual processes can slow teams down and increase the risk of errors. Network automation architecture provides the structure needed to automate everyday operations efficiently and keep network management more consistent.
A good way to understand network automation architecture is to start with the basics of network automation. To get that foundation, read our article on “What Is Network Automation?”
Let us now understand network automation architecture in detail and how different network automation tools work together within it.
What Is Network Automation Architecture?
Network automation architecture is the design behind the automation system itself. It defines how data, tools, workflows, and devices connect with each other. It also defines how changes are approved, executed, tracked, and validated. Without this design, automation often becomes difficult to scale or trust.
Many teams begin with scripts for small tasks and quick wins. That approach works first, but problems appear as the network grows larger. Different vendors, device types, policies, and teams increase overall complexity quickly. Soon, unmanaged scripts create confusion instead of solving operational problems.
That is why architecture matters more than tools in long-term automation success.
Core Layers of Network Automation Architecture

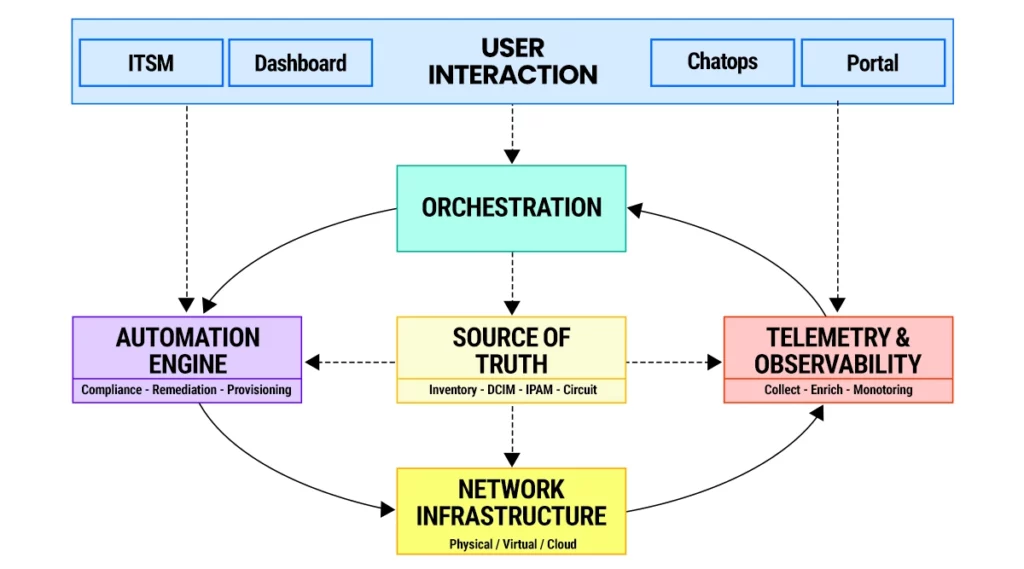

Below, we have discussed the main components along with network automation architecture diagram.
1. Source of Truth
The source of truth is the foundation of the whole architecture. It stores trusted network data in one accurate and structured place. This may include devices, interfaces, IP addresses, sites, VLANs, and policies. If this data is wrong, automation decisions will also be wrong.
2. Orchestration and workflow layer
The orchestration layer manages workflows from start to finish. It decides what runs, when it runs, and what checks happen first. This layer can also include approvals, scheduling, and task dependencies. It acts like the control center of the automation system.
For small teams, this may be simple playbooks. For larger teams, it may include workflow engines and service orchestration. The main goal stays the same. One system should coordinate change in a consistent way.
3. Network Automation Engine
The automation engine is the execution layer of the architecture. It handles provisioning, compliance, remediation, and change execution across the network. Inside this layer, abstraction and API capabilities hide vendor-specific differences and provide a consistent way to interact with devices, controllers, and cloud platforms. This makes the automation stack modular, scalable, and easier to maintain.
4. Telemetry and Validation Layer
Good automation does not end after a change is pushed. Teams must confirm that the network behaves correctly after the update. This is why telemetry and validation are very important layers. They check health, drift, performance, and policy alignment after execution.
This is how teams detect drift, faults, and policy violations. Advanced teams use this feedback for closed-loop automation. That means the system can detect issues and trigger actions automatically.
5. Network Infrastructure
This is the real network that the automation system works on. It includes physical, virtual, and cloud networks. It can include routers, switches, firewalls, load balancers, and cloud services. The automation engine sends changes to this layer. This is the environment where all actions happen.
6. Security and Governance Layer
Automation can move fast, so mistakes can spread fast, too. That is why security and governance must stay inside the architecture. Only the right people should approve or trigger critical changes. Every action should also be logged for auditing and review. This layer includes identity, access control, policy checks, and approval paths. It protects the network while still allowing automation to deliver speed.
7. User Interaction Layer
This is the top layer that users see. It can include ITSM tools, dashboards, chatops, and portals. Users start requests from this layer. They can also track status and view results here. This layer makes automation easier for operations teams and other users.
Types of Network Automation Architecture
1. Centralized Network Automation Architecture
In a centralized model, one main platform controls automation tasks. It stores data, runs workflows, and pushes changes from one place. This model is easier to manage and simpler to govern. It also gives teams better visibility into automated actions.
2. Distributed Network Automation Architecture
In a distributed model, automation runs across multiple systems or locations. Each domain or site may handle part of the automation work. This model supports scaling better in large and complex networks. It also reduces pressure on a single control system.
3. Hybrid Network Automation Architecture
A hybrid model combines centralized control with distributed execution. One core platform may define policy, workflows, and governance rules. Local systems or domain tools then handle execution closer to devices. This gives teams both control and operational flexibility.
4. Intent-Based Network Automation Architecture
Intent-based architecture is a more advanced automation model. Teams define the desired outcome instead of every technical step. The system then translates that intent into device-level actions. It also checks whether the network matches that desired state. This model is useful in mature and policy-driven environments.
Which architecture model should you choose?
- A centralized model is easier to control and manage.
- A distributed model scales better and reduces single-point pressure.
- A hybrid model mixes both and often fits real production networks best.
- Large teams may also add intent-driven controls over these layers.
- For beginners, hybrid thinking helps most. Keep control central, but allow execution close to the network edge.
- For professionals, the right choice depends on size, latency, resilience, and governance needs. There is no single model for every environment.
To understand how these architectures work in real networks, you can explore our Network Automation Course with hands-on labs and real use cases.
Best Practices for Building Network Automation Architecture
A strong architecture should grow in clear and practical stages. It should reduce risk first, and then improve scale, control, and speed. The goal is not more tools. The goal is better and safer network operations.
1. Start with low-risk automation first
Begin with read-only tasks before making live network changes. Start with backups, inventory collection, compliance checks, and health data. This gives early value and builds trust inside the team. It also creates a safer base for future automation steps.
2. Build a trusted source of truth early
Automation depends on accurate and structured network data. Store devices, IPs, interfaces, policies, and desired states in one place. If the data is wrong, the automation will also be wrong. Clean data makes every workflow safer and easier to scale.
3. Use orchestration and abstraction for better control
A good architecture needs one layer to manage workflow execution clearly. It should control timing, approvals, task order, and error handling. An abstraction layer also helps in multi-vendor environments. It makes automation more reusable and easier to maintain.
4. Add testing, validation, and monitoring from the start
Do not treat automation as a push-and-finish activity. Test changes before production and validate results after execution. Use logs, telemetry, and alerts to confirm the network state. This helps teams catch drift, faults, and failed outcomes quickly.
Real-World Example of Implementing Network Automation Architecture
Use Case: Daily Compliance and Drift Reporting
This automated workflow runs in read-only mode across routers, switches, and firewalls to collect live operational data such as software versions, interface status, inventory details, and running configurations.
How to Set Up Automation for Daily Compliance and Drift Reporting?
The workflow compares the live network state with the approved source of truth. This helps detect drift, policy failures, missing backups, and version mismatch before they become bigger issues.
Team Receives Important Data. After validation, the system creates a daily report or dashboard. It shows which devices passed, which failed, and what needs immediate attention. The workflow can also trigger alerts or create follow-up tasks for engineers.
For this workflow, keep the stack simple and reliable.
- Use NetBox as the source of truth for devices, IPs, interfaces, and intended state.
- Use Ansible Automation Platform or AWX for scheduling, orchestration, and running daily jobs.
- Use pyATS/Genie for collecting live device facts and validating state against expected results.
- Use Grafana for dashboards, alerting, and readable daily reports for the operations team.
Frequently Asked Questions
Q1. What is network automation architecture?
Network automation architecture is the blueprint behind network automation systems. It shows how data, tools, workflows, and devices work together safely.
Q2. Why is network automation architecture important?
It reduces manual work, improves consistency, and supports safer network changes. It also helps teams scale automation without losing control.
Q3. What are the main layers in network automation architecture?
The main layers include source of truth, orchestration, abstraction, execution, telemetry, and governance.
Q4. What is a network automation architecture diagram?
A network automation architecture diagram is a visual layout of the automation flow. It shows how data moves from planning to execution and validation.
Conclusion
Network automation architecture is the backbone of successful network automation programs. It connects together trusted data, workflows, execution, validation and governance. And without this structure, automation is harder to scale and harder to trust. With a good design, teams can work faster and with minimal risk.
