Introduction
Cloud computing has become an important part of business operations. It enables organizations to scale rapidly, innovate efficiently, and reduce infrastructure costs. If we talk about leading cloud computing platforms, then Microsoft Azure is one of them. It offers a strong suite of services that provide a wide array of computing needs. At the heart of Azure’s capabilities lies azure architecture, which encompasses the entire lifecycle of an application, from planning and design to deployment and management.
If you are looking to apply for Azure Architect jobs, then you need to have a good knowledge of Microsoft Azure Architecture. This is where Microsoft Azure combo training comes in. It provides a comprehensive learning path that equips you with the necessary skills and knowledge to excel in this in-demand field.
In this blog, we will understand the Azure architecture in detail with its diagram and components.
What is Azure Architecture?
Azure architecture refers to the process of planning, designing, deploying, and managing cloud-based applications on Microsoft Azure. It shows how services connect, how resources are organized, and how security is handled. A modern Azure setup is not just a collection of services. It is a planned structure for identity, networking, governance, operations, and workloads. Microsoft now treats Azure architecture as a broader foundation, built around landing zones and well-architected design principles.
The easiest way to understand Azure architecture is to think of it as a blueprint. It answers basic questions before workloads grow too large.
For example, it helps define:
- where workloads should live
- how networks should connect
- how users should get access
- how governance should work
- how teams should monitor and operate resources
Most Fortune 500 businesses use it, making it the most widely used cloud service. Businesses use Azure architecture due to its affordability, speed, and flexibility. It is made to handle a wide range of workloads, from straightforward web apps to complex business solutions.
Why Azure Architecture Matters?
A good cloud setup should be easy to secure, manage, and expand. That does not happen by accident. Without a proper design, cloud resources spread too fast and become hard to control. Permissions get out-of-control, networking becomes confusing, and costs become harder to manage.
That is why Azure architecture matters from the start, not only when problems appear later.
Azure Architects are among the highest-paid cloud professionals, and companies increasingly look for real-world deployment experience.
We now have a good understanding of Azure architecture; let us now move on to our next section where we will discuss Azure architecture diagram.

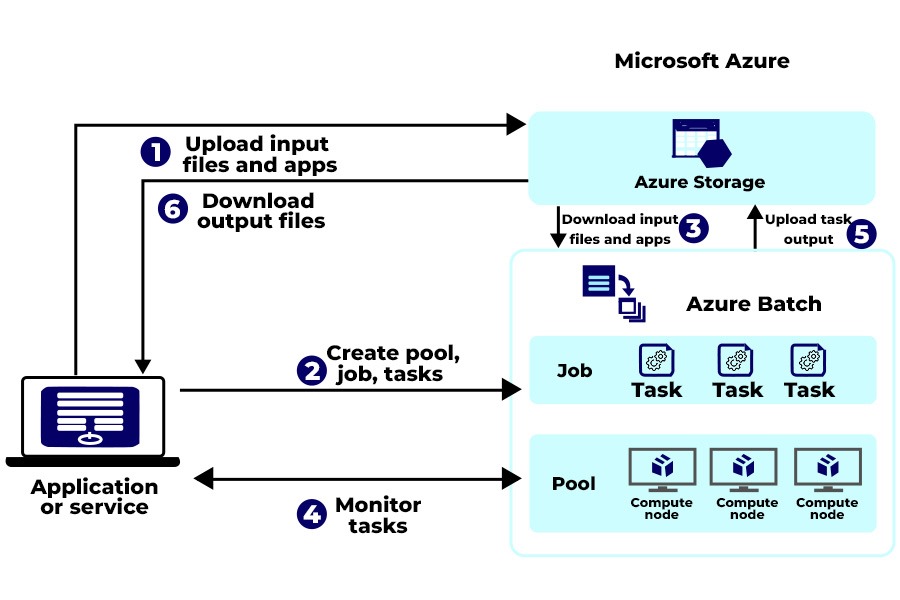

Azure Architecture Diagram Explained
For many individuals, small organizations, and large corporations, Microsoft Azure is the preferred cloud computing service. But frequently, some of the parties directly involved in setting up the cloud services may lack the skills required to comprehend the full framework and technical infrastructure. An Azure architectural diagram, which shows how any application would be hosted and deployed on Azure cloud services, can be used in this situation. It helps you understand your cloud architecture by displaying the databases and network topologies of your company.
Azure Architecture diagrams make it simple to document any cloud architecture and show desired additions or modifications. Azure diagrams show an organization’s cloud computing services. The complexity of an organization’s cloud service infrastructure makes cloud architecture creation challenging.
The easiest way to visualize your organization’s Azure architecture is to construct a diagram that will help you better understand the cloud environment, identify issue areas, look for updates, and develop solutions. You must create these diagrams if you intend to use the Azure architectural services.
What should an Azure Architecture Diagram Show?
A useful Azure architecture diagram should show more than service icons. It should show how the environment is designed and how layers connect.
A strong diagram usually includes:
- users and identity flow
- core networking structure
- shared services
- workload environments
- governance and security controls
- operations and monitoring
A diagram becomes much more useful when it explains purpose, not just placement. That is what many weaker cloud blogs miss. They show components, but not the design logic behind them.
Now, let us discuss the components of Azure architecture.
Main components of Azure Architecture (Detailed)
A full Azure architecture includes many services, but a few parts matter most.
Core Functional Components
- Compute
Compute is where applications and workloads run. This can include virtual machines, containers, app services, and other runtime services.
- Storage
Storage holds application files, backups, logs, and data.
- Networking
Networking connects services, users, and on-premises environments. It usually includes virtual networks, subnets, gateways, firewalls, and routing design.
- Identity
Identity controls who gets access and under what conditions. This is one of the most important parts of modern cloud design.
- Security
Security protects data, resources, and access paths. It should appear in the architecture from the start, not at the end.
- Operations and governance
Operations cover monitoring, policy, compliance, and cost control. Governance keeps the environment structured as it grows.
Core Physical and Logical Components

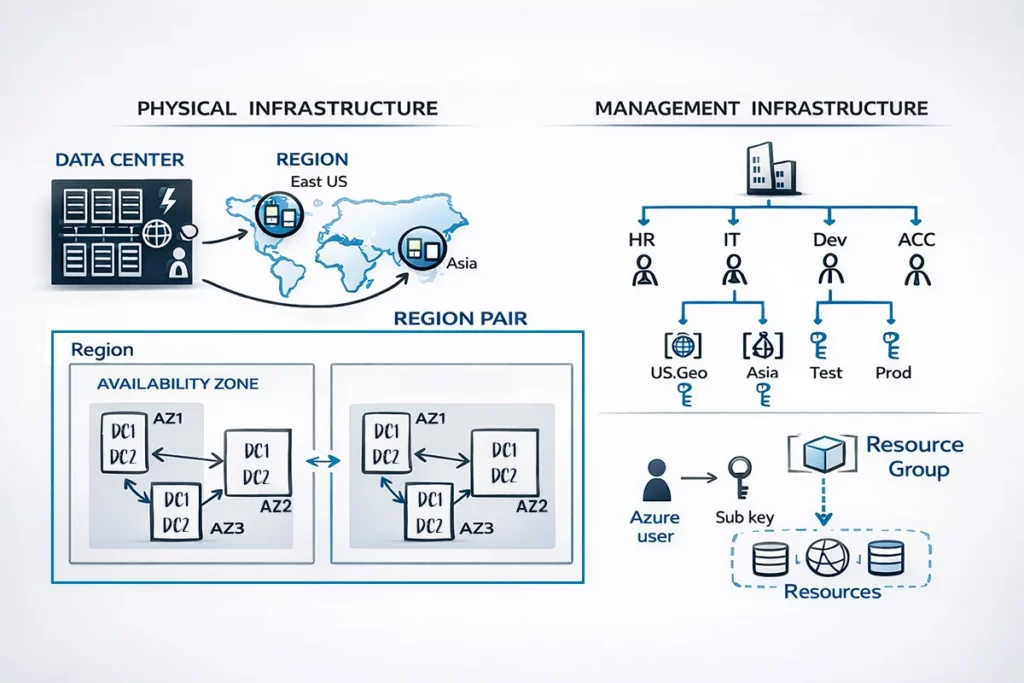

Physical Infrastructure
Physical infrastructure in Azure refers to the real-world foundation that supports its cloud services, including Microsoft data centers, regions, and availability zones. It is designed to deliver high availability, low latency, and reliable performance across different geographic locations. This physical setup helps Azure maintain business continuity and support modern cloud applications at scale.
Under Physical Infrastructure come Azure regions, Paired Regions (under Azure regions), Azure Availability Zones,
Azure Regions
These are geographically separated groups of Microsoft data centers offering low-latency connections within the region. There are currently 42 regions globally, with more planned.
- Paired regions
Most regions are paired with one another within the same geographic area to facilitate high availability. It allows for staggered updates and prioritizes recovery efforts in case of outages.
Azure Availability Zones
These are distinct physical locations within a region, each with independent power, cooling, and networking. Deploying resources across zones protects your applications from data center failures. Certain Azure services automatically replicate your data and applications across Availability Zones, eliminating single points of failure and offering a 99.99% VM uptime SLA.
Subscriptions and Management Groups
Azure subscriptions act as the billing and usage boundary for Azure services. They help organizations manage costs, control access, and organize resources under a specific account or project.
Management groups sit above subscriptions and help organize multiple subscriptions under one structure. They make it easier to apply policies, access rules, and governance controls across large Azure environments.
Resource Groups in Azure
These act like folders in Azure, logically grouping related resources that make up a solution. They simplify management, access control, and billing. Resources can be moved between groups if needed. When creating a resource group, consider the lifecycle of the resources it will contain. Resources with similar lifecycles (like a web app and its database) are often grouped.
Azure Resource Manager
Azure Resource Manager allows you to deploy, update, and delete all the resources within your Azure solution as a single unit. This simplifies the process and reduces errors. Standardize deployments across environments (development, staging, production) using pre-configured templates that ensure consistent resource creation. It offers a centralized view for managing all your Azure resources. Also, it provides security features, auditing capabilities, and tagging for better organization.
What is an Azure landing zone?
An Azure landing zone is the foundation for running workloads properly in Azure. Microsoft calls it the standardized and recommended approach for organizations using Azure. It gives teams a consistent way to set up and manage Azure at scale. It also aligns the environment with security, compliance, and operational efficiency goals. Modern Azure design starts with the landing zone, not with random service selection.
What is Hub-Spoke Topology in Azure?
One of the most common Azure network models is hub-spoke topology. In this design, the hub holds shared services and central connectivity. The spokes hold individual workloads or application environments. The spokes connect back to the hub instead of each team building everything separately.
Microsoft recommends hub-spoke as an important best-practice topology for many organizations. It helps central teams manage shared networking and security more clearly. It also helps workload teams stay separated while still using common services.
In simple words:
- the hub is the center
- the spokes are the connected workload networks
- That model makes architecture easier to scale and easier to govern.
What is the Azure Well-Architected Framework?
The Azure Well-Architected Framework is Microsoft’s design model for building better workloads. It helps teams improve architecture quality across important decision areas.
Microsoft organizes it around five pillars:
- Reliability
- Security
- Cost Optimization
- Operational Excellence
- Performance Efficiency
This matters because good architecture is not only about getting things working. It is also about making them secure, stable, efficient, and easier to operate.
Frequently Asked Questions
Q1 – What are the 5 pillars of Azure architecture?
The five pillars of the Azure Well-Architected Framework architecture are:
- Security
- Reliability
- Operational excellence
- Cost optimization
- Performance efficiency
These pillars can be prioritized according to your workload.
Q2 – What is Azure architecture diagram?
Azure architecture diagrams act as visual blueprints that represent how an application or solution is built and functions on Microsoft’s Azure cloud platform. They represent the various components involved, their organization, and how they interact with each other.
Q3 – What does an Azure Architect do?
Azure Architect is a cloud computing professional who specializes in developing scalable cloud solutions using Microsoft Azure.
Q4 – What is the 3 layer architecture of Microsoft?
Applications are arranged into three logical and physical computer tiers using the well-known three-tier architecture, which includes the following:
- the presentation tier or user interface
- the application tier
- and the data tier.
Q5 – What is the Azure architecture?
Azure architecture is the structured design of cloud resources, regions, and services.
Q6 – What is the salary of Azure architect in TCS?
Azure architect salary in TCS ranges between INR 13 Lakhs to INR 18 Lakhs annually.
Azure Architects are among the highest-paid cloud professionals, and companies actively look for candidates with real-world deployment experience. At PyNet Labs, we train professionals on real Azure deployments using industry tools, live labs, and real-world scenarios.
Conclusion
Microsoft Azure architecture is the complete design of an Azure environment. It includes components, but it also includes structure, governance, and long-term planning. In this blog, we discussed all about Azure architecture, which includes every aspect related to cloud architecture, such as planning, design, deployment, operation, and maintenance of your cloud-based applications.
By understanding Azure architecture diagrams and components, you can create a powerful and scalable cloud foundation for your organization’s success. Moreover, if you are a developer or architect then this will help you design and deploy scalable, secure, and cost-effective solutions that meet the needs of modern businesses.
