Mesh Topology in Computer Network: Diagram, Types & Uses

Introduction

A computer network is not only about devices and cables. It is also about how those devices are connected. This “interconnection structure” is called network topology. Topology decides how data moves, how failures are handled, and how easy the network is to manage.

One important and widely discussed topology is mesh topology in computer network. It is known for reliability because it provides multiple paths for data to travel. If one path fails, the network can still work using another path. That is why mesh topology is commonly used in critical systems where downtime is not acceptable.

In this blog, we will discuss what mesh topology is, its types, mesh topology diagram, and mesh topology advantages and disadvantages. You will also understand where mesh topology is used and when it makes sense to choose it over other topologies.

Before getting into more details, let us first discuss the basic question “What is Mesh Topology?”

What is Mesh Topology?

A mesh topology in computer network consists of interconnected nodes, where each node is connected to at least one other node. Direct or Point-to-Point connections can be made between nodes; however, the fundamental principle is the same – data is transmitted from one node to another using multiple routes instead of using only one route (if it is based upon a single point-of-failure).

There are two common ways mesh networks are designed:

• A network where every device connects to every other device
• A network where only some devices are highly connected, and others have fewer links

The more connections a network has, the more reliable it becomes. But it also becomes more expensive and more complex. That is the tradeoff you always see with mesh topology.

Want to Build Real Networking Skills?

Mesh topology is just one part of modern network design. If you want hands-on experience with routing, switching, VLANs, STP, WAN, and real device configuration, structured training makes all the difference.

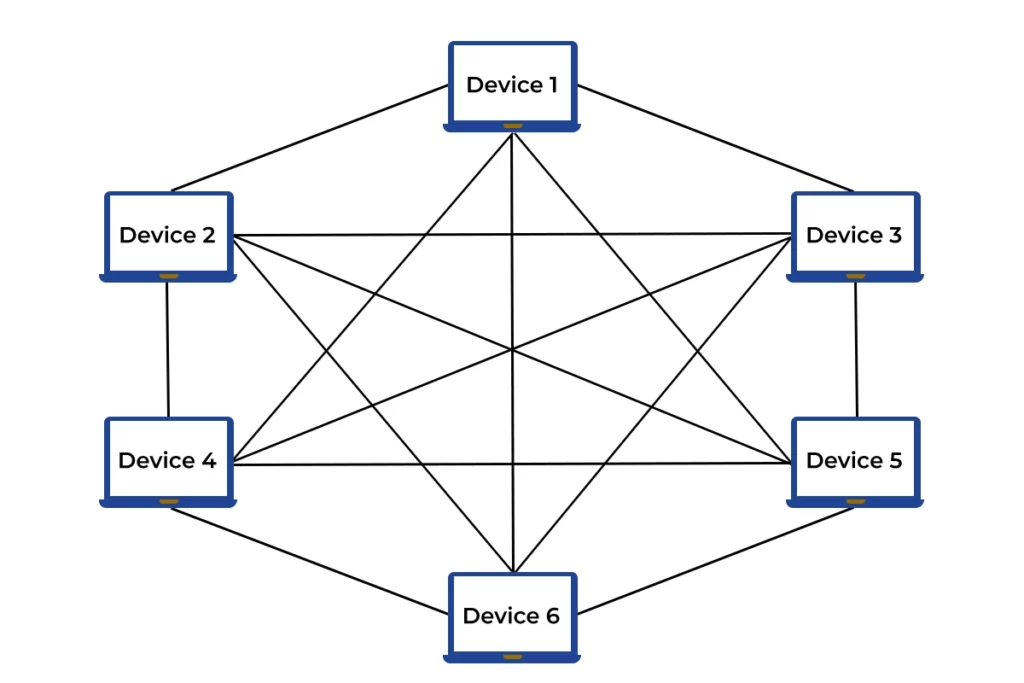

Mesh Topology Diagram

A mesh topology diagram looks different from star or bus topology diagrams. In a star topology, you usually see one central hub connected to all devices. In bus topology, you see a single main cable with all devices attached to it.

In a mesh topology, you see multiple connections between multiple devices. Each line represents a direct link. That is why mesh topology diagrams often look crowded.

How to read a mesh topology diagram?

• Each circle or box represents a device, such as a computer, router, or switch
• Each line represents a direct connection (link)
• In a full mesh, all devices have lines connecting them to all other devices
• In a partial mesh, only some devices have many lines, others have fewer

A diagram helps you quickly understand why mesh is reliable. If one link breaks, there are still other links available for communication.

Key Features of Mesh Topology

Here are the main features of mesh topology:

• Multiple routes for data transmission
• High reliability and fault tolerance
• Better network performance under heavy traffic
• No single point of failure (especially in a full mesh)
• Easier to isolate link problems
• Complex wiring and higher hardware requirements

How Mesh Topology Works?

To understand mesh topology in computer network, it helps to see how data moves.

In mesh topology:

• A device can send data to the destination using a direct link if available
• If a direct link is not available or fails, data can take another path
• Routing decisions are made based on available paths and best routes

This is why mesh networks are fault-tolerant. There is no single cable, hub, or device that can bring down the entire network.

What happens when a link fails

If one connection breaks:

• The network detects the failure
• Data is routed through other available links
• Communication continues with little or no interruption

In enterprise environments, routing protocols such as OSPF or BGP are commonly used in mesh-based designs to dynamically calculate the best path.

This feature is extremely useful in environments like defense systems, hospitals, financial systems, and data centers.

Types of Mesh Topology in Computer Network

There are mainly two types of mesh topology in computer networks.

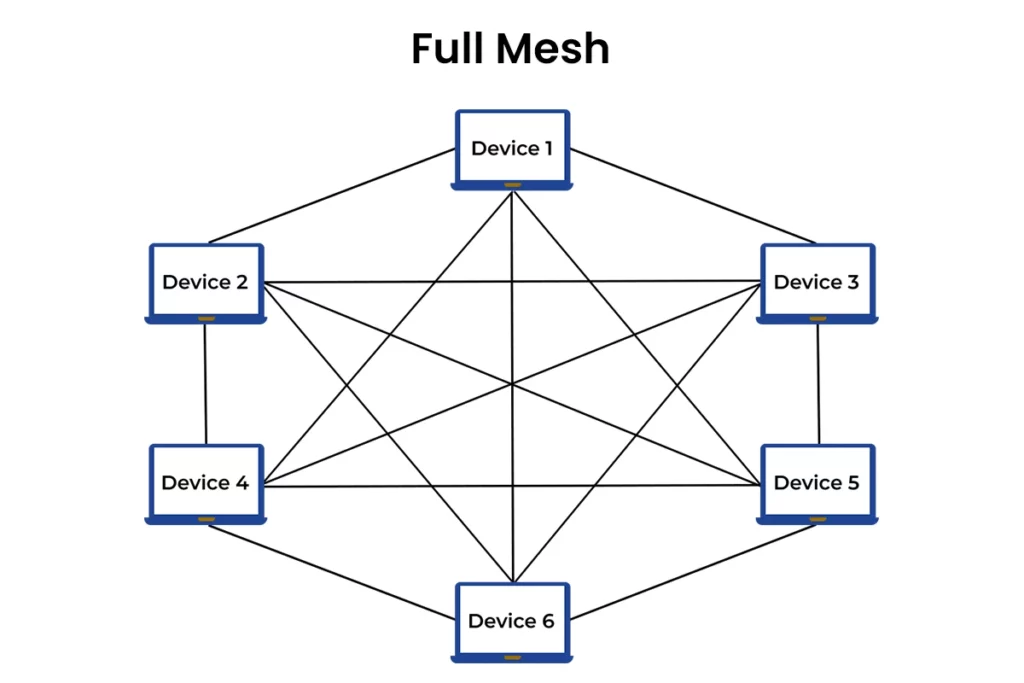

1. Full Mesh Topology

In full mesh topology, every device in the network is connected directly to every other device.

This means:

• Each device has a dedicated connection with all other devices
• Data can travel directly between any two devices
• Failure of one link does not impact communication between other devices

This is the most reliable mesh design. But it is also the most expensive and hardest to scale.

Full mesh link formula

If there are n devices, the total number of links required in a full mesh network is:

Total links = n(n − 1) / 2

Example:

• If n = 4 → total links = 4×3/2 = 6
• If n = 10 → total links = 10×9/2 = 45

You can see how quickly the number of connections increases.

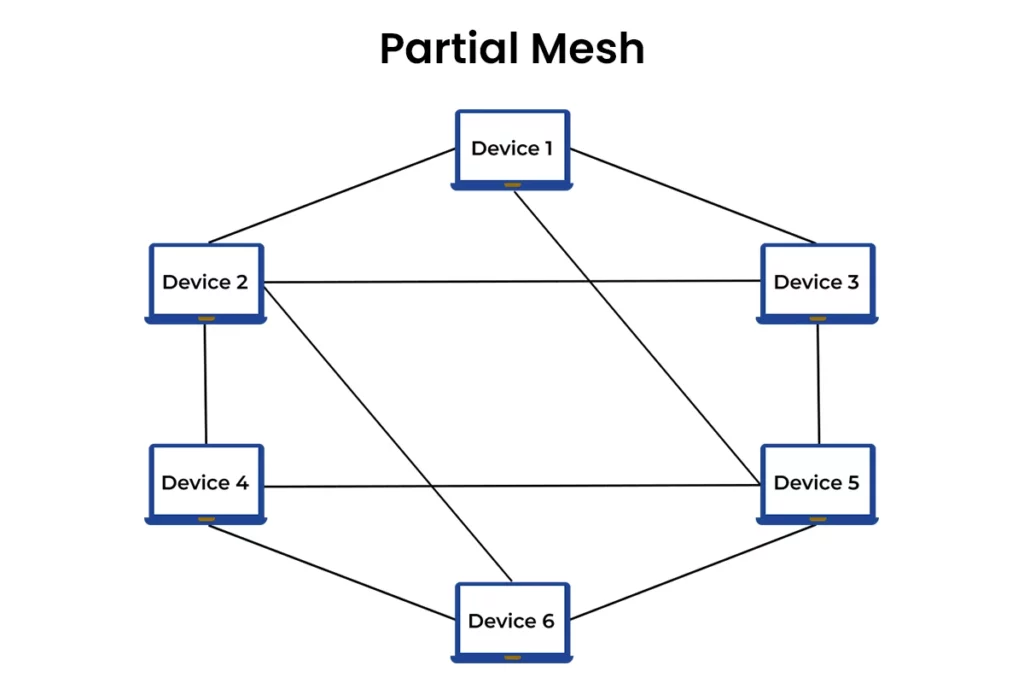

2. Partial Mesh Topology

In a partial mesh topology, not every device is connected to every other device. Instead:

• Important or central devices have multiple connections
• Less important devices have fewer direct links

A partial mesh is more practical in real networks because it balances reliability and cost.

For example, in a company network:

• Main routers might have connections to multiple routers
• Smaller branch devices might connect to only one or two nodes

Most real-world networks that are called “mesh” are actually partial mesh.

Mesh Topology Advantages and Disadvantages

Now, let’s cover the most searched topic: mesh topology advantages and disadvantages.

Advantages of Mesh Topology

Some of the advantages of mesh topology in computer network are:

• High Reliability: Mesh topology is one of the most reliable network designs. If one link fails, data can still travel through other links. This makes the network stable.
• Fault Tolerance: In a mesh topology, the failure of one device usually does not affect other devices. The network continues to operate because there are alternative paths.
• Better Security: Mesh networks can be more secure because devices often use dedicated point-to-point links. This reduces the chance of data being intercepted easily.
• Easy Fault Detection: Since each connection is separate, you can locate a faulty link faster. If a specific device is not reachable, you can test its links directly.
• No Congestion on Shared Medium: Unlike bus topology, where all devices share the same main cable, mesh topology uses separate links. So, data traffic is distributed, and performance remains strong.
• Supports High Data Traffic: Mesh networks are suitable when there are many users and heavy traffic. Multiple paths allow better load distribution.

Disadvantages of Mesh Topology

Apart from the advantages we have discussed, mesh topology also has some disadvantages. These are:

• High Cost: The biggest disadvantage is cost. More connections mean more cables, more ports, more network interfaces, and more installation effort.
• Complex Installation: Setting up a mesh topology is not simple. You need careful planning for wiring, port availability, and routing configuration.
• Difficult to Scale: When you add a new device to a full mesh, you may need to connect it to all existing devices. That increases complexity quickly.
• More Maintenance Effort: More links also mean more points to maintain. Testing, monitoring, and fixing issues can take time.
• Requires More Space: A wired mesh topology can become messy because of many cables. It may require more physical space and good cable management.

Applications of Mesh Topology in Real Life

Mesh topology is used in places where performance and reliability matter more than cost.

Common applications include

• Military communication networks where uptime is critical
• Banking and financial networks where data must never stop
• Airports and railway systems for secure and continuous communication
• Data centers for high availability and redundancy
• Wireless Mesh Networks (WMN) are used in smart cities and public Wi-Fi
• IoT networks where devices need flexible routing paths

Wireless mesh networks are becoming more popular because they reduce the need for heavy wiring. In a wireless mesh, each device can relay data to others, creating a flexible network.

Mesh vs Star vs Bus Topology

To understand mesh topology better, compare it with other common topologies.

Mesh topology wins on reliability and performance. Star and bus win on cost and simplicity.

When Should You Use Mesh Topology?

Mesh topology is a strong choice, but not for every situation.

Use mesh topology when

• You need maximum network uptime
• Data must flow even if links fail
• Security and reliability are high priorities
• You are connecting multiple important routers or branches
• Heavy traffic needs multiple paths

Avoid mesh topology when

• Budget is limited
• The network is too large and growing fast
• Simple installation is required
• Cable management is difficult in your setup

In many business cases, partial mesh topology becomes the best option because it offers reliability without the full cost of a full mesh.

Frequently Asked Questions

Q1. What is a mesh network in computer?

A mesh network is a network where each device can link to several others, sharing data along many paths if one link fails at all.

Q2. What is a mesh network system?

A mesh network system is a setup that uses mesh links, routers, or nodes to spread Wi‑Fi or data, so coverage stays strong everywhere inside.

Q3. What is mesh with an example?

Mesh means devices talk to each other directly, not only to one hub. Example: home Wi‑Fi pods passing your signal from room to room today.

Q4. What are the two types of mesh networks?

Two types are full mesh and partial mesh. Full mesh connects every device to every other. Partial mesh connects key devices, saving cost and effort.

Conclusion

Mesh topology in computer network is one of the most reliable and fault-tolerant network designs. It provides multiple direct and alternate paths, which helps the network stay active even if some links fail. That is why mesh topology is used in critical real-world systems like military communication, banking networks, and data centers.

At the same time, mesh topology is not cheap. It requires more cables, more ports, and more maintenance. It is also complex to set up, especially in full mesh networks.

Mesh topology is not just a theory topic. It directly connects to real-world concepts like routing redundancy, failover, and high availability — things network engineers deal with every day.

If you’re exploring networking seriously and want to understand how these concepts work in practical lab environments, you can take the next step below.
