Introduction
The Integrated Services Digital Network (ISDN) is an important step in the development of global telecommunications. It was created to replace the outdated analog Public Switched Telephone Network (PSTN); ISDN was the first standardization effort to offer complete digital connectivity. It was specifically created to improve the quality of calls as well as reduce noise and allow multiple services to be connected on a single line. Although VoIP and broadband have replaced it in many places, ISDN is still important to understand, especially in the case of legacy phone systems, PBX systems, broadcast audio, or backup connectivity.
In this blog, we will discuss what ISDN is, ISDN full form, its working principle, and real-world use cases. We will also look into the advantages and limitations of ISDN in computer network.
Let us first understand what ISDN really is.

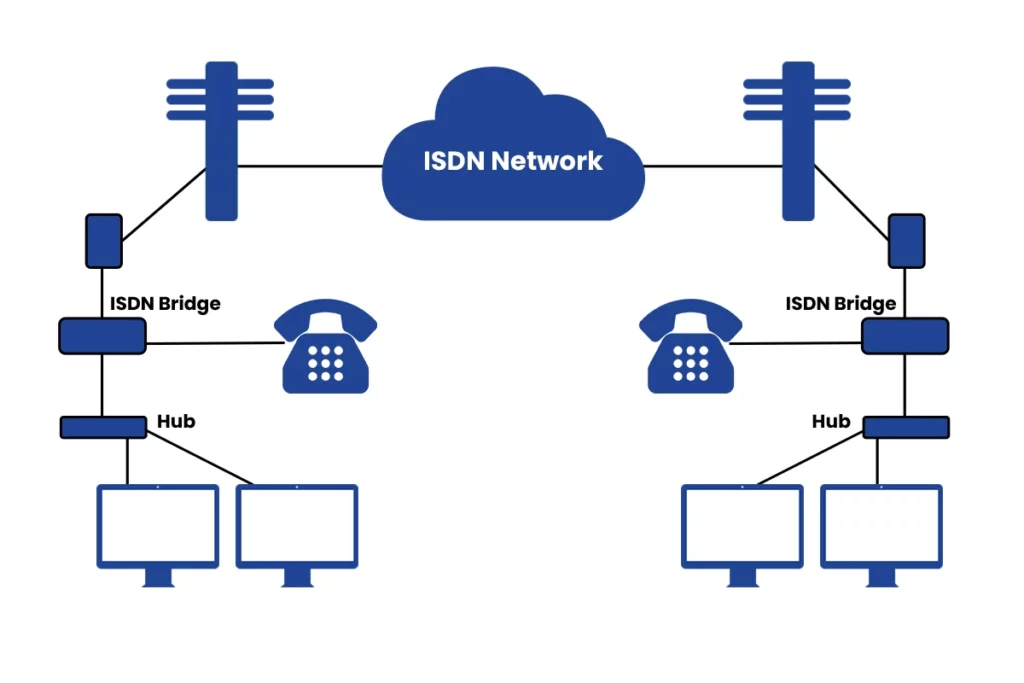

What is ISDN?
The ISDN full form is Integrated Services Digital Network. It is a set of standards that enable the digital transmission of video, voice, data, and fax over public telephone network. ISDN was developed on the principle of circuit switching; however, it also supports packet switching to meet specific data requirements.
The foundational architecture of ISDN is based on three main service types:
- Bearer Services: The services provide ability to transfer data (voice, data, video) between users, without modifying the contents.
- Teleservices: They rely upon bearer service, but also include upper-layer functions like Teletex, Videotex, or G4 Facsimile.
- Supplementary Service: These offer additional features such as call forwarding, three-way phone calling, and caller ID, that were groundbreaking when ISDN was first introduced.
The “Integrated” portion of the name is the most important. Prior to ISDN, companies had separate physical lines to connect their telephone systems as well as data modems. ISDN brought these two services into one digital “pipe,” managed by standards-based protocols defined by ITU-T (formerly CCITT).
Understanding ISDN in Computer Networks: Architecture and Integration
When examining ISDN in computer network environments, the best way to understand it by its relationship to the Open Systems Interconnection (OSI) model. ISDN is primarily used at layers 1, 2, and 3 and provides a solid system to support digital transmission.
The OSI Layer Perspective
- Physical Layer (Layer 1): Defines the electrical and mechanical properties that make up the interface. In the case of Basic Rate Access, I.430 standard is employed as well as I.431 is the primary rate access standard. This layer manages the bit-level multiplexing of B and D channels.
- Data Link Layer (Layer 2): Uses the Link Access Procedure on the D-channel (LAPD) protocol also known as Q.921. This makes sure that information about signaling transmitted without errors and also manages multiple logical connections over one physical link.
- Network Layer (Layer 3): Employs the Q.931 protocol. It represents the “brain” of the signaling process, which is responsible for the setup of calls and routing, teardown as well as the management of supplementary services.
Channel Logic: B, D, and H
The strength of ISDN is in the separation of user data and signaling information, a concept referred to out-of-band signals.
- B-Channels (Bearer): These are the “workhorses” of the network. Each B-channel runs at 64 kbps and transmits the payload in real time, for example, data or voice.
- D-Channels (Delta): These contain the signaling information (call setup calls, caller IDs, etc.). By shifting signaling information to a separate channel, B-channels remain completely free for user data that eliminates “in-band” interference common in older analog systems.
- H-Channels (Hybrid): Used to transfer data at high speed. These channels aggregate several B-channels for applications that require a substantial bandwidth, for example high-resolution video or massive transfer of files.
BRI vs. PRI: Breaking Down the Channels
ISDN is delivered through two primary interfaces tailored to different user needs. The choice between them depends on the required scale and the number of simultaneous connections.
| Feature | Basic Rate Interface (BRI) | Primary Rate Interface (PRI) |
| Standard Configuration | 2B + 1D | 23B + 1D (T1) / 30B + 1D (E1) |
| B-Channel Speed | 64 kbps per channel | 64 kbps per channel |
| D-Channel Speed | 16 kbps | 64 kbps |
| Total Bandwidth | Up to 128 kbps (bonded) | 1.544 Mbps (T1) / 2.048 Mbps (E1) |
| Primary Use Case | Small offices, residential, telecommuting | Enterprises, call centers, PBX trunks |
| Physical Medium | Single twisted-pair copper | T1 or E1 digital carrier lines |
Basic Rate Interface (BRI) was designed for the “edge” of the network. It offers two B-channels, which means that a user can browse the web on one channel while making calls using the other channel. If the user requires more speed, they can “bond” the two channels with protocols such as Multilink PPP, which could provide the 128-kbps speed required for data streaming.
Primary Rate Interface (PRI) is the industrial-strength version. It is used in North America and Japan, where it uses the T1 line (23 B-channels), and in the rest of Europe and Australia, where it uses the E1 line (30 B-channels). The PRI line is employed to connect a business’s Private Branch Exchange (PBX) to the telephone network, which allows a number of workers to connect external calls at the same time via the same physical connection.
Key Components: Reference Points (R, S, T, U) and Terminal Equipment
To ensure interoperability across different manufacturers, ISDN defines specific functional groups and the “reference points” (interfaces) between them. Understanding these is crucial for anyone managing ISDN in computer network hardware.
Functional Groups
- TE1 (Terminal Equipment Type 1): Specialized devices that are “ISDN-native,” such as digital phones or ISDN fax machines.
- TE2 (Terminal Equipment Type 2): Legacy non-ISDN devices, like standard analog phones or RS-232 serial computers.
- TA (Terminal Adapter): A device that allows TE2 equipment to communicate with the ISDN network (often called an “ISDN modem”).
- NT1 (Network Termination 1): The device that connects the customer’s internal wiring to the carrier’s local loop. It handles the physical layer conversion.
- NT2 (Network Termination 2): An intelligent device (like a PBX) that performs switching and concentration.
Reference Points
The connection points between these functional groups are standardized to allow mixed-vendor environments:
- R Reference Point: The interface between a non-ISDN device (TE2) and a Terminal Adapter (TA).
- S Reference Point: The interface between Terminal Equipment (TE1 or TA) and a Network Termination device (NT2).
- T Reference Point: The interface between an NT2 and an NT1. In many setups, the S and T points are electrically identical and referred to as the S/T interface.
- U Reference Point: The interface between the NT1 and the carrier’s central office. This is the “local loop” that typically runs over two-wire copper.
Common Real-World Uses of ISDN
ISDN is “old,” but it wasn’t weak. It survived because it was predictable.
Common uses included:
- PBX trunk lines for business phone systems
- Video conferencing when internet video was unreliable
- Broadcast and studio audio (stable links mattered more than raw speed)
- Backup connectivity, because dial-up circuits were often resilient
Advantages of ISDN
ISDN had strong benefits for its time, and a few still matter today:
1) Reliable call quality
Because it’s digital, ISDN usually delivers clear audio with less noise than analog lines.
2) Fast call setup and stable signaling
The dedicated signaling channel helped with quicker, cleaner call control.
3) Predictable performance
ISDN is circuit-switched. In practice, that often meant fewer surprises compared to congested packet networks.
4) Multiple services on one line
Two B channels on BRI made it flexible for small deployments.
Limitations of ISDN
ISDN also had problems that became impossible to ignore:
1) Limited speed by modern standards
Even bonded BRI maxes out around 128 kbps, which is tiny today.
2) Higher cost and specialized provisioning
ISDN service often requires telecom provisioning, dedicated hardware, and ongoing service fees.
3) Not built for modern internet usage patterns
Today’s traffic is bursty, cloud-based, and video-heavy. Packet networks handle that better.
4) Global phase-outs and end-of-life planning
Many carriers have moved to all-IP networks and retired older PSTN/ISDN services. This forces businesses to migrate even if their old system “still works.”
Frequently Asked Questions
Q1. What is ISDN used for?
ISDN is used to carry clear voice calls and data over phone lines, often for business PBX trunks, fax, conferencing, and secure backup connectivity too.
Q2. What is the ISDN drug used for?
ISDN isn’t a drug name. People sometimes mix it up with INH (isoniazid), a tuberculosis medicine. Check the exact label or ask a pharmacist first.
Q3. What is the difference between DSL and ISDN?
DSL is a broadband service that is always on and transfers data via higher frequencies over copper lines. ISDN is a circuit-switched system that is slow and is often designed to be call-based.
Q4. What is the difference between ISDN and PSTN?
PSTN is the public phone network. ISDN is a digital service that is run by it with channels that are defined for data, voice, and signaling control.
Conclusion
ISDN is a major milestone in telecom and networking history. It introduced practical digital channels for voice and data, improved signaling, and made multi-service communication simpler over the public telephone system. The ISDN full form is Integrated Services Digital Network.
Even if you don’t use it again, understanding ISDN in computer network terminology will help you maintain your legacy systems, make plans for the migration towards SIP or broadband, and resolve issues with older systems without fear.
