Introduction
Hybrid topology is one of the most useful concepts in modern computer networking. It helps combine flexibility, performance, and better control inside one network system. In simple words, hybrid topology is made by combining two or more network topologies together. This combination creates a stronger structure that suits real business and organizational needs.
In this blog, you will learn about hybrid topology, its structure, types, uses, advantages, and limitations. You will also understand where it works best in practical situations.
Before getting into more details, let us first understand the basic question “what is hybrid topology?”
What is Hybrid Topology?
A hybrid topology in computer network is a network layout formed by combining multiple network topologies into one. These topologies work together as part of a larger communication system.
For example, one department may use a star topology for local device connections. Another department may use ring or bus topology for its internal communication. When these different sections are connected into one complete network, the result becomes a hybrid topology. This design helps match the network structure with actual working needs.
Its structure depends on the size, purpose, and complexity of the organization. This is why hybrid topology looks different from one place to another. A company network and a university network may use different hybrid combinations.
Main Structure of Hybrid Topology
The structure of a hybrid topology depends on the topologies combined inside the network. There is no single universal layout for every hybrid design. Still, most hybrid networks contain a few common structural parts. These parts help the full system stay connected and work smoothly.
First, the network contains separate sections or segments. Each segment can follow a different topology based on its own purpose.
Second, connecting devices join these segments into one working network. These devices often include switches, routers, hubs, or bridges.
Third, there is usually a central path or backbone. This backbone carries communication between different network sections and departments.
Inside each section, devices communicate using that local topology structure. Between sections, the backbone or central devices handle larger communication movement. This structure gives freedom without turning the network into complete confusion. Each part has its role, while the full network remains connected. That is what makes hybrid network both flexible and powerful in large environments. It balances local simplicity with overall network integration.
Understanding a Hybrid Topology Diagram
A hybrid topology diagram is a visual representation of a combined network structure. It shows how multiple topologies are connected inside one system.
In most diagrams, you will see separate network sections clearly grouped together. Each group represents a different topology or network segment.
For example, one diagram may show several star-shaped sections. These sections may then connect through a bus line or ring path.
This helps viewers understand both the local structure and overall network design. It becomes easier to study the network without reading long technical descriptions.
A hybrid topology diagram is useful during planning and classroom learning. It also helps during troubleshooting because engineers can trace connections more easily.
Common Types of Hybrid Topology
Hybrid topology can take many forms based on the combination used. Some combinations are more common because they solve practical network needs.
Star Bus Hybrid Topology

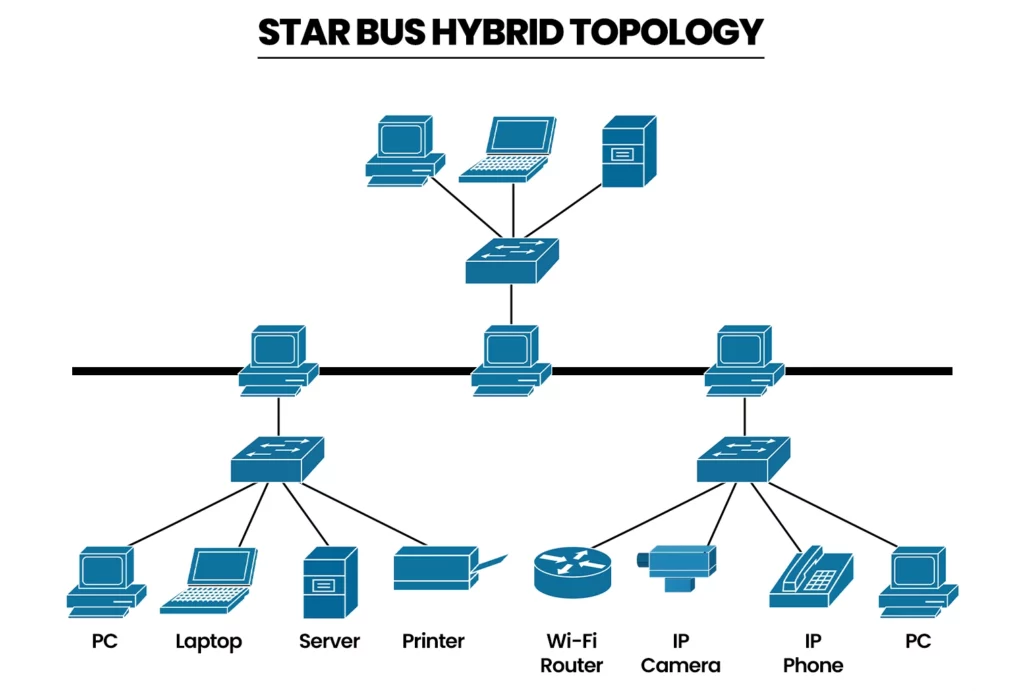

This type combines star topology and bus topology within one network design. Several star networks connect through a common bus backbone.
Each star section may represent a department or lab inside a building. The bus backbone then allows communication between those different sections. This design gives easy local management and wider overall connectivity at the same time. It is often seen in schools, offices, and training centres.
Star Ring Hybrid Topology

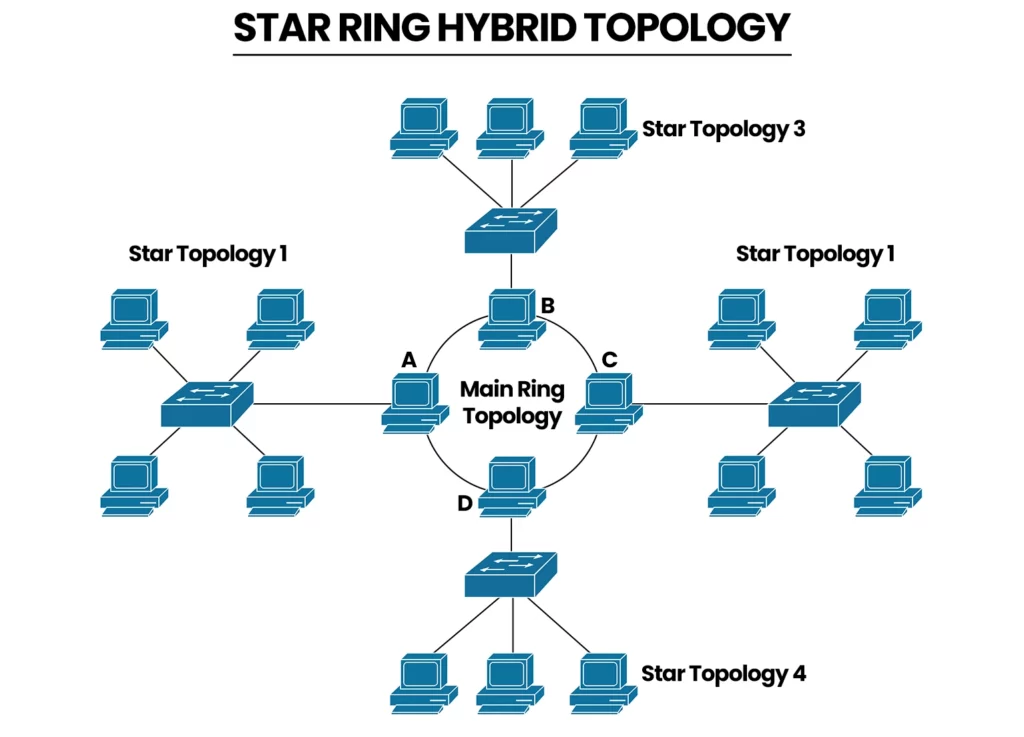

This form connects star segments through a ring structure for wider communication. Devices inside each segment connect through a central switch or hub.
The ring part helps connect larger sections in a circular communication pattern. The star part makes local device management simpler and more organised. This structure may appear in environments that want control and orderly data flow. It combines convenience with a more structured interconnection model.
Star Mesh Hybrid Topology

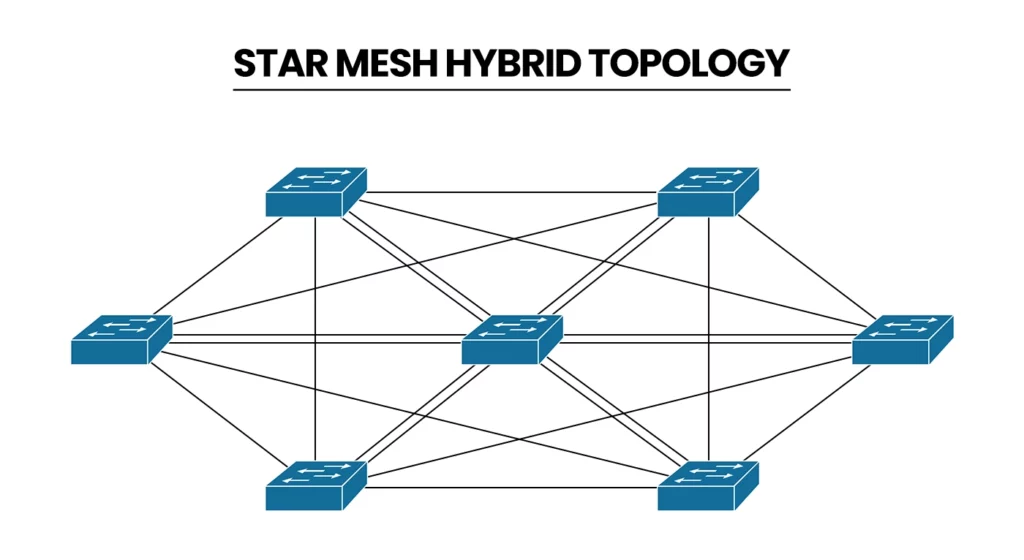

This hybrid mixes local star segments with a stronger mesh-style core connection. Core devices connect to multiple paths for better reliability.
If one connection fails, another path may still carry the communication traffic. This makes the network more dependable for important services. Large institutions and critical systems may prefer this kind of hybrid setup. It offers strong performance, though the cost becomes higher.
Tree-Based Hybrid Topology

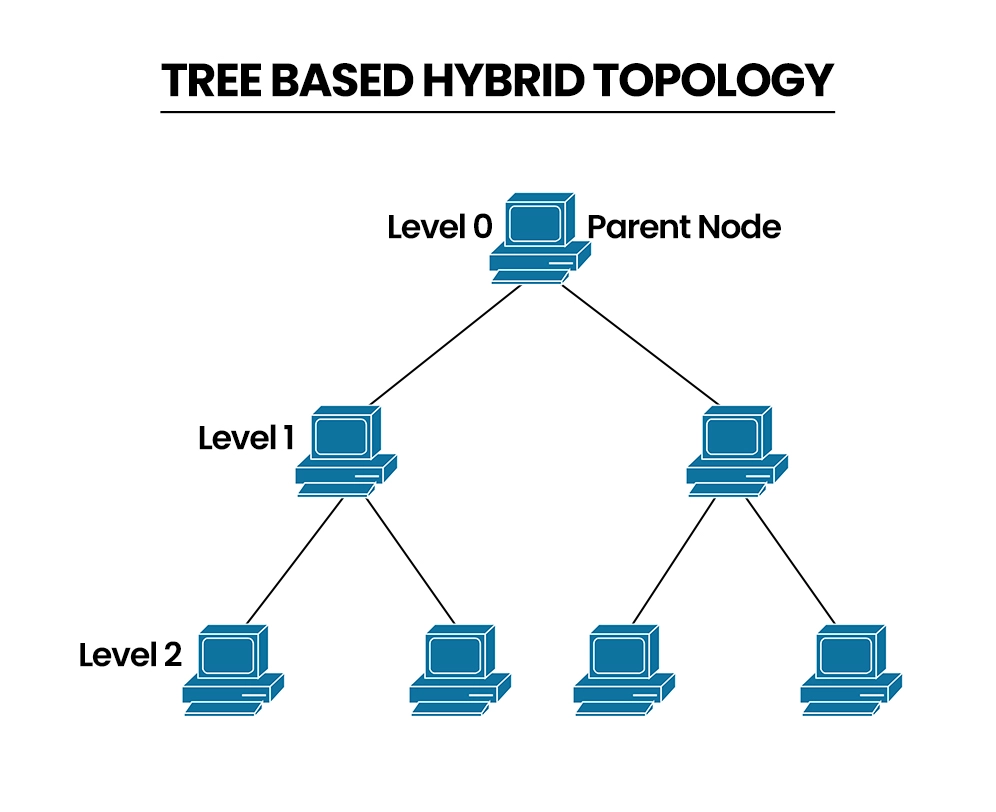

Tree structures can also become part of a hybrid design very easily. A tree layout already combines hierarchy with network branching. A tree-based hybrid topology is also known as a hierarchical topology.
When tree topology links with another structure, the result becomes a hybrid network. This suits organizations with many levels or multiple departments. Schools, universities, and corporate offices often benefit from this organized pattern. It supports control, growth, and a clear communication hierarchy.
Advantages of Hybrid Topology
Hybrid topology has many advantages in practical networking situations today. That is why it remains an important topic in computer network studies.
Flexibility
Different network parts can use the most suitable topology. This means engineers do not need one common design for everything. They can adjust the layout according to actual usage and needs.
Scalability
Hybrid networks can grow more easily than many single topology structures. New segments can be added without redesigning the whole network. This is very useful for growing businesses and institutions with future plans. Expansion becomes more practical and less disruptive over time.
Better Performance
Each section can be designed for its own specific workload and purpose. This improves communication speed and overall network performance. High-traffic departments can receive stronger layouts for better data movement. Smaller areas can use simpler structures without wasting resources.
Fault Isolation
A problem in one segment usually stays limited to that area. This prevents the whole network from failing because of one issue. That makes maintenance easier and reduces downtime in many real situations. Network teams can identify the faulty section more quickly.
Reliability
It can improve reliability when strong topologies are used in important areas. Critical systems can receive more secure connections.
Less critical areas can use simple and cost-effective structures instead. This creates a balance between reliability and budget.
Customization
Every organization has different network needs and working patterns. Hybrid topology allows a design that matches those needs closely. That level of customization is difficult with only one simple topology. A hybrid structure makes network planning more practical and realistic.
Disadvantages of Hybrid Topology
Even though hybrid topology has many strengths, it also has some limitations. These limits should be understood before choosing this structure.
Complex Design
Hybrid topology is harder to design than simple network topologies. Combining multiple structures requires careful planning and technical understanding. A poor design can create confusion, weak performance, or unnecessary cost. So, proper knowledge is very important during setup.
Higher Cost
This network structure often needs more cables and connecting devices. Extra switches, routers, and maintenance tools can increase the cost. When advanced reliability is required, the budget may rise even more. So, hybrid topology is not always ideal for very small networks.
Maintenance Challenges
A hybrid network can be more difficult to manage after installation. Different sections may need different troubleshooting methods and monitoring practices. This means skilled professionals are usually needed for proper maintenance. Simple issues may also take longer to analyze in larger systems.
Dependency on Key Devices
Some hybrid designs still depend on important central devices or backbones. If these devices fail, multiple sections may be affected. So, the design must include good planning for backup and safety. Otherwise, the flexibility benefit may become weaker during faults.
Hybrid vs Star vs Bus vs Mesh Topology: Basic Differences
Hybrid topology becomes clearer when compared with other common topologies. This comparison helps students understand why hybrid design is often preferred.
- Star topology is simple and easy to manage in small environments. However, it depends heavily on a central connecting device.
- Bus topology is cheaper and easier to install in basic setups. But it is less reliable and harder to manage during faults.
- Ring topology can provide orderly data movement in a fixed path. Still, faults may affect communication if the ring breaks.
- Mesh topology offers excellent reliability through multiple communication paths. Yet it becomes expensive and complex for many normal environments.
- Hybrid topology takes useful features from these different structures and combines them. That is why it often gives better practical results.
It does not fully replace every other topology in all situations. Instead, it becomes useful when a mixed solution is needed. So, hybrid topology is often chosen for balance rather than pure simplicity. It combines efficiency, adaptability, and stronger planning freedom.
Frequently Asked Questions
Q1. What is hybrid topology in computer network
A hybrid topology in a computer network is a combination of two or more network topologies. It helps create a flexible and practical network structure.
Q2. Why is hybrid topology used?
Hybrid topology is used because a single topology may not suit every network area. It gives better flexibility, scalability, and performance.
Q3. What does a hybrid topology diagram show
A hybrid topology diagram shows how different topologies are connected in one network. It helps students and engineers understand the structure clearly.
Q4. What are the main advantages of hybrid topology
The main advantages of hybrid topology are flexibility, easy expansion, better fault isolation, and improved network performance in large systems.
Conclusion
Hybrid topology is a smart and practical network structure for modern communication systems. It combines two or more topologies into one useful design. This combination allows better flexibility, scalability, performance, and fault isolation in many environments. That is why hybrid topology in computer network design matters greatly. A hybrid topology diagram helps explain this concept more clearly and visually. It shows how different segments connect inside one complete system.
