Introduction
If you’re learning about the basics of networking, one term that you’ll often hear is framing in the computer network. It might sound complicated initially, but the concept is easy to understand. Framing can help a network organize data prior to transmitting it from one device to another.
In computers, the data doesn’t move in random ways. It is moved in a structured manner. This structure allows communication to be faster as well as safer to manage. This is where framing plays an important part.
In this blog, you’ll learn what framing is, how it’s used, and how it functions, along with its different types that are used in networking.
Let us first understand what framing really is.
What Is Framing in Computer Network?
Framing in computer network is the process of dividing data into smaller units called frames and adding control information so the data can be sent correctly from one device to another. This process takes place in the data link layer of the OSI model.
A frame is like a box that carries data along with some extra information. This extra information may include:
- Source address
- Destination address
- Control information
- Error-checking details
In simple words, framing gives data a proper format before transmission.
Importance of Framing in Computer Networks
Framing is important because it makes communication clean and dependable. Here are the main reasons it matters.
1. It defines data boundaries
The receiver must know where a message begins and where it ends. Framing solves this problem by setting clear boundaries.
2. It supports error detection
Frames often include error detection fields such as CRC. This helps the receiver check whether the data arrived correctly.
3. It improves data management
Small units are easier to send, receive, store, and reassemble than one long stream of raw bits.
4. It helps with addressing
Frames carry source and destination information. This ensures the data reaches the right device.
5. It supports smooth communication
Framing keeps the sender and receiver in sync. It helps protocols work in an organized way.
Where Does Framing Happen in the OSI Model?
Framing occurs in the Data Link Layer, which is the 2nd layer of the OSI model. Physical Layer sends raw bits. The data link layer gives these bits a meaningful structure. It wraps the data in frames, allowing it to travel properly over the network connection.
If someone asks you, “At which layer does framing take place?” the answer is easy: framing takes place at the data link layer.
How Does Framing Work?

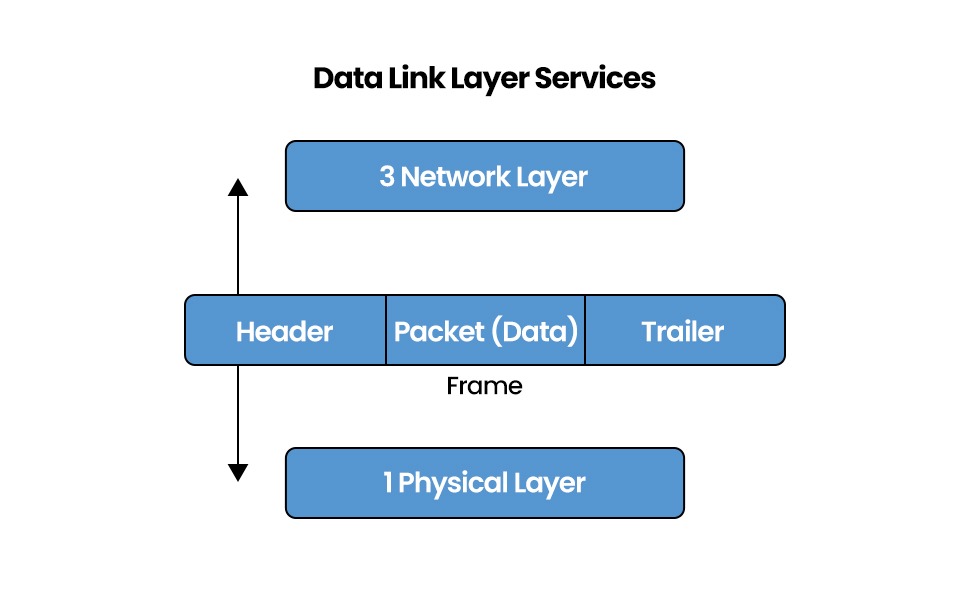

Framing in computer network works by taking data from the network layer and adding a header and trailer around it.
A typical frame may contain:
- Header: contains control details such as source and destination addresses
- Payload: the actual data
- Trailer: contains error detection values such as CRC
This structure helps the receiver process the data correctly.
The process of framing is simple to understand. Here is the basic flow:
- The sender creates data at a higher layer.
- The data link layer receives that data.
- It adds control information like header and trailer.
- The complete unit becomes a frame.
- The frame is sent over the physical medium.
- The receiver reads the frame, checks it, removes extra fields, and passes the data upward.
So, framing is not just about breaking data. It is also about packaging data correctly. That is the basic working of framing in computer network.

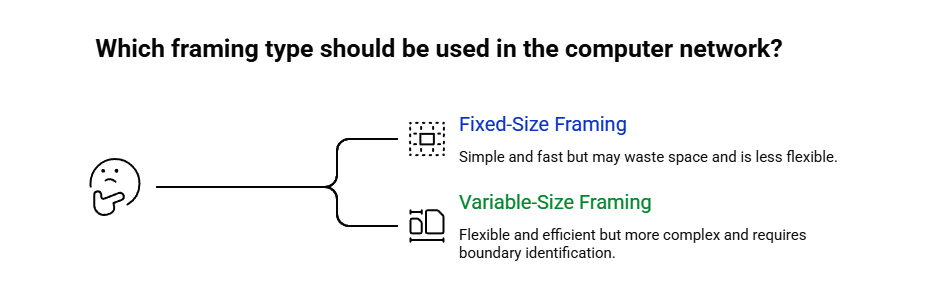

Types of Framing in Computer Network
Framing in computer network is mainly divided into two types:
1. Fixed-Size Framing
In fixed-size framing, every frame has the same size.
This method is simple because the receiver already knows how many bits or bytes belong to one frame. There is no need to mark the beginning and end each time.
Example: ATM cells
Advantages of Fixed-Size Framing
- Easy to process
- Simple design
- Fast handling
Disadvantages of Fixed-Size Framing
- May waste space if the data is smaller than the frame size
- Less flexible
A common example often discussed in networking is fixed-size framing used in some communication systems.
2. Variable-Size Framing
In variable-sized framing, frames can have different lengths based the amount of data. This method is more flexible but requires a method that indicates the exact location where each frame starts and ends.
Advantages of Variable-Size Framing
- Better use of space
- Flexible for different data sizes
Disadvantages of Variable-Size Framing
- More complex than fixed-size framing
- Needs extra methods to identify frame boundaries
Still Confused Between Concepts Like Framing, Switching, and Routing?
You’re not alone. These are core networking topics that require proper guidance and hands-on practice.
- Join our industry-focused networking courses
- Learn from certified trainers
- Build real-world skills, not just theory
Talk to our team on WhatsApp and get personalized guidance.
Methods of Framing
There are a few common methods used in variable-size framing.
1. Character Count
In this method, the frame header contains a field that tells the total size of the frame.
So, the receiver reads the count and knows how much data belongs to that frame.
Problem: If the count field gets corrupted, the receiver may lose track of the frame boundary.
2. Byte Stuffing
In byte stuffing, special bytes are used to mark the beginning and end of a frame.
But what if the same special byte appears inside the actual data?
To solve that, the sender adds an extra escape byte before it. This is called byte stuffing.
This method is useful in character-oriented protocols.
Problem: Extra bytes increase overhead
3. Bit Stuffing
Bit stuffing is used in bit-oriented protocols.
A special bit pattern marks the frame boundary. If the same bit pattern appears inside the data, the sender inserts an extra bit to prevent confusion.
At the receiver side, that extra bit is removed.
This method helps the receiver clearly identify the frame without mixing it up with the data itself.
Problem: Slight increase in processing
Example of Framing in Real Life
Let us take a simple example.
Suppose you want to send the message: “Hello”
The network does not just send the word as it is. It adds extra information around it, such as:
- Sender address
- Receiver address
- Length
- Error check
Now the message becomes a frame.
When the receiver gets it, the receiver checks:
- Who sent it
- Whether it is meant for this device
- Whether the data is complete
- Whether any error happened during transmission
Only then is the data accepted.
Benefits of Framing
Framing in computer network offers many benefits in networking. Some of the biggest ones are:
- Clear boundaries: It tells where one data unit starts and ends.
- Better reliability: It supports error detection.
- Easy delivery: It includes source and destination details.
- Control and management: It helps devices handle data in an organized way.
- Efficiency: Smaller units are easier to transmit and check.
That is why framing is a basic but very powerful concept in data communication.
Challenges in Framing
Even though framing is useful, it also has some challenges.
- Delimiter patterns may appear inside the data.
- Extra bits or bytes increase overhead.
- If framing information is damaged, the receiver may misread the data.
- Complex framing methods may need more processing.
Still, these challenges are handled well by modern networking protocols.
Framing vs Packet: Basic Difference between the Two
Many learners get confused between a packet and a frame.
They are related, but they are not the same.
- A packet is usually linked with the network layer.
- A frame is linked with the data link layer.
You can think of it this way: the packet is wrapped inside a frame before it moves across a local link.
So, packets travel through networks, while frames help deliver them over a specific link.
To learn more about the difference between packets and frames in computer networking, check out our detailed post here: Frame vs Packet.
Frequently Asked Questions
Q1. Which OSI layer is frame?
Frames function at Layer 2, i.e., the Data Link Layer. This layer handles node-to-node delivery and packages raw bits into frames.
Q2. What is an example of framing?
Ethernet is a perfect example of framing. It wraps data in frames with header and payload as well as a trailer before sending it to networks.
Q3. What are the two types of framing in computer network?
Two types of framing in computer network are fixed-size framing in which frames are of equal length as well as variable-size framing in which frames are different in length.
Q4. What is the difference between a packet and a frame?
A packet is part of the network layer, whereas frames are part of the data link layer.
Conclusion
Framing in computer network is one of the most important basics in networking. It gives structure to raw data and makes communication between devices possible in a clean and reliable way.
In simple terms, framing refers to the process of putting information into frames that can be delivered and received, examined and comprehended in a correct manner.
Remember one thing only: framing converts the raw data stream into an organized unit for secure transmission.
That is why framing is not just a theoretical topic. It is a practical foundation of modern computer communication.
