Definition: Docker architecture follows a client-server model where the Docker client sends commands to the Docker daemon, which manages images, containers, networks, and storage. It also connects with registries to pull or push images, making container operations efficient and controlled.
Before getting into more detail, let us first understand what Docker is.
What is Docker?
Docker is a software platform that lets developers run applications inside containers. A container includes the app, required libraries, and system tools in one package. This makes the application work consistently across environments while using operating system resources efficiently and keeping processes isolated from each other.
To learn more about Docker, check out our post, “What Is Docker?”
What is Docker Architecture?
Docker architecture explains how the process works between the daemon, client host, registry, and Docker object, which makes containers’ operations efficient and secure. The Docker architecture provides distinct roles to each component and makes application deployment easy.
Docker uses a client-server model. The Docker client will accept your request and forward it to the Docker daemon. The daemon is responsible for building, pulling, starting, stopping, and controlling Docker resources from a central location. These resources comprise of images, containers, network, storage, and other resources that are used by software.
Purpose of Docker Architecture
Many people learn Docker commands first and architecture much later, which creates confusion. They can run containers, but cannot explain what happens underneath. That gap becomes painful during debugging, scaling, storage issues, or networking failures. Understanding Docker architecture gives you a map before the road becomes crowded. It also helps teams choose better images, networks, storage, and security patterns.
Also, it is important to know if something breaks. With its help, you know which layer deserves your first attention. That saves time during development and production. Good architecture knowledge also improves communication between developers, DevOps teams, and platform engineers.
To apply Docker concepts effectively in real-world scenarios, hands-on training and practical exposure to automation and networking play an important role.
Now that we have a basic knowledge of Docker architecture, let us now understand the Docker architecture diagram

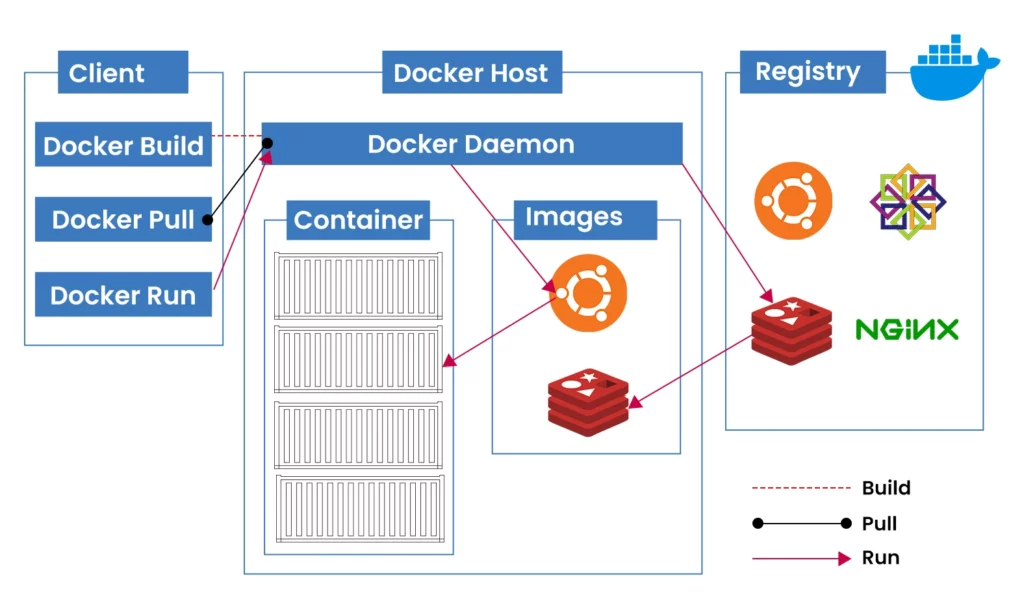

Docker Architecture Diagram
A simple Docker architecture diagram usually looks like the flow below. It shows who receives commands and who manages the work.
This diagram is simplified, but it reflects the real control flow clearly. The client talks through the API, the daemon coordinates tasks, containerd manages lifecycle work, and runc creates the isolated process. Images come from registries, while networks and volumes support connectivity and persistence.
Let us now move on to our next section, where we will discuss Docker components.
The Core Docker Components
Below, we have discussed all the main docker components in detail.
1. Docker Client
The first major part is the Docker client, usually the dockercommand. When you type docker run, docker build, or dockerpull, that client listens. It does not run the container alone and does not store everything. Instead, it sends requests to the daemon through the Docker API. The client and daemon may run together or on different systems. That flexibility makes remote management and automation easier for teams.
Command Commands:
- docker build is used to create a Docker image from a Dockerfile.
- docker pull is used to download a Docker image from a registry.
- docker run is used to create and start a container from an image.
2. Docker Host
Docker host is the machine where Docker actually runs. It is the system that holds the Docker daemon, as well as Dockerresources. The host could be your laptop, server, or even a cloud-based machine. In the majority of setups that are practical, containers run on this host under daemon control. The daemon and client may operate on the same machine or the client may connect to a remote daemon.
3. Docker daemon
Docker daemon, which is also known as Dockerd . This long-running process handles networks, images, containers volume, services, and images. It listens to API requests, executes the request, then returns responses. The system also saves Docker associated data on the host system using /var/lib/docker, which is the Linux default. Newer Docker Engine installations can keep image content in the directory /var/lib/containerd.
4. Docker Object
- Images: An image is a read only template used to create containers. It contains the application code, dependencies, and startup instructions. Images are reusable, lightweight, and built in layers, which makes Docker faster and more efficient during builds.
- Containers: A container is a running instance of an image. It is the live environment where your application actually runs. You can start, stop, move, or delete a container when needed. A container is isolated from other containers and from the host to a controlled degree.
- Networks: Networks enable containers to connect with one other and also with outside systems. Without networks, containers will be able to run on their own, but would not support real-time applications. Docker can create the default bridge network, and you can also make user-defined networks for more isolation and for better service discovery
- Volumes and Storage: Volumes are Docker managed storage used to keep data persistent. This means your important data can stay safe even after a container is removed. Docker storage also includes bind mounts, tmpfs mounts, and writable container layers.
5. Docker Registry
The third major part is the Docker registry, where images live, and Docker Hub is the default public registry for many developers. Teams can also use private registries for security, compliance, and internal control. When you run docker pull, Docker downloads the requested image from registry. When you run docker push, Docker uploads your built image there. Registries make image sharing possible across laptops, test servers, and production systems.

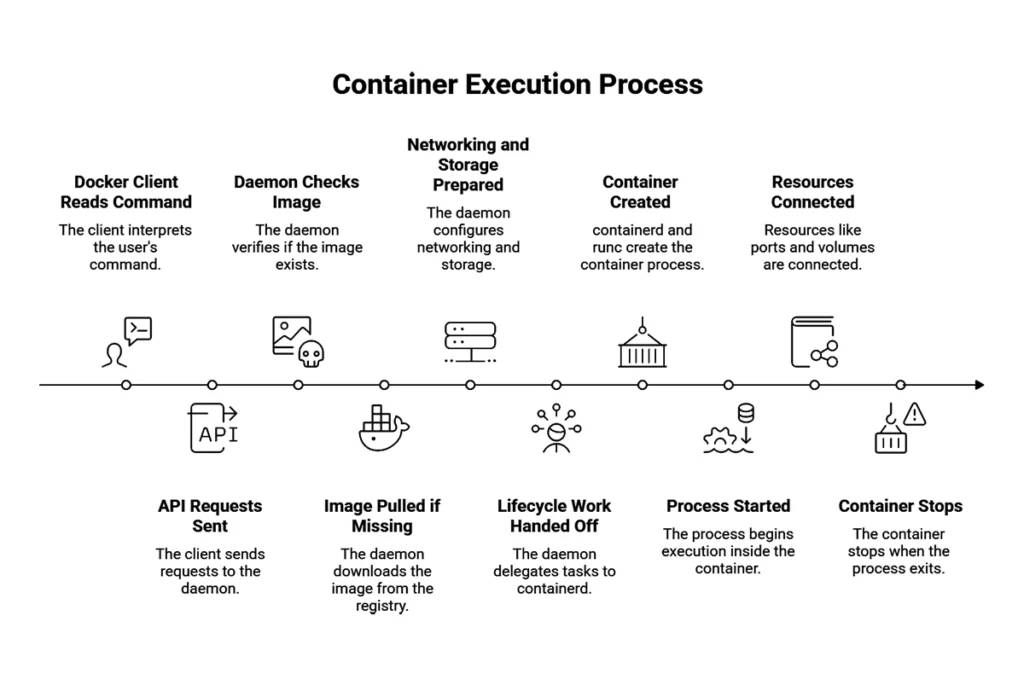

What Happens When You Run a Container?
Let us walk through a simple example using docker run nginx.
First, the Docker client reads your command and converts it into API requests. Those requests reach the daemon through a Unix socket or network interface. The daemon checks whether the nginx image already exists on the host. If it is missing, the daemon pulls that image from the configured registry. Only after that does Docker prepare networking, storage, and execution settings.
Next, the daemon hands lifecycle work to containerd, which manages container tasks. Containerd is designed as an embedded core runtime for larger systems. It handles important lifecycle duties like image transfer, storage, execution, and supervision. Then a low-level runtime, such as runc, creates the actual container process. OCI runtime specifications define details like executable, mounts, namespaces, and cgroups. Together, these layers turn a simple command into an isolated running application.
Finally, Docker starts the process inside the container and connects to the requested resources. That may include published ports, attached networks, mounted volumes, and environment variables. If the command exists, the container stops unless another process keeps running. If persistent data lives inside a volume, that data remains available afterward. Docker, therefore, feels fast, predictable, and repeatable across environments. The architecture separates concern cleanly while keeping the user experience straightforward.
The Linux Foundation under Docker
Docker containers rely heavily on Linux kernel features such as namespaces and cgroups. Containers are not lightweight virtual machines with separate guest operating systems inside. Instead, containers are regular processes isolated and controlled in special ways. Namespaces provide an isolated workspace for containers, while the OCI runtime material also shows namespaces and cgroups in container configuration. Namespaces affect what a process can see, while cgroups limit resource usage.
This matters because performance and density often improve compared with traditional virtual machines. Containers share the host kernel, so they avoid carrying full guest systems. That makes the startup faster and resource usage lighter in many workloads. However, shared kernel design also means isolation is different from virtualization. Professionals should remember this when planning security boundaries and privileged container usage. Beginners should remember that containers are isolated processes, not tiny computers.
Image Layers, Volumes, and Practical Design
Image layers are one reason Docker builds feel efficient during development. Each Dockerfile instruction creates a layer, and unchanged layers can be reused. That means smaller rebuilds, better caching, and more consistent application packaging. Professionals use this behavior to speed pipelines and reduce unnecessary registry traffic. Beginners benefit because a clean Dockerfile often feels easier to understand. Good layer ordering can save surprising amounts of build time later.
Volumes matter just as much when applications begin handling real user data. Writing directly into a container layer is slower and less durable. It is highly recommended to have volumes as the preferred persistence mechanism for containers. Volumes are managed by Docker, isolated from the core host structure, and portable. They work well when multiple containers need shared access to stable data. This design makes backups, migrations, and recovery far easier in production.
Networking Choices inside Docker
The default bridge network is convenient, but it is not ideal everywhere. Treat the default bridge as legacy for production scenarios. User-defined bridge networks provide better isolation and automatic name resolution. Containers on the same user-defined network can reach each other directly. Unrelated containers stay separated unless you publish ports or connect networks intentionally. That makes application stacks cleaner, safer, and easier to reason about.
For a beginner, that means your web container can talk to the database container. For a professional, it means controlled traffic boundaries, simpler service discovery, and cleaner debugging. Across hosts, you need another approach because bridge networks are host local. Docker points toward overlay networking or external routing for multi-host communication. So networking decisions should match your application shape, environment, and operational goals. Architecture is not only about components; it is also about sensible defaults.
Common Misunderstandings about Docker Architecture
One common mistake is thinking the Docker client runs containers by itself. The client mainly sends commands to the daemon, which performs work, and another mistake is confusing images with containers. Images are reusable templates, while containers are live instances of those templates. Mixing those ideas causes errors during builds, updates, and troubleshooting.
Another common misunderstanding about Docker architecture involves persistence and state management inside containers. Many new users save database files inside containers and lose them later. The correct pattern is to use volumes or external storage for important data. Some teams also keep everything on default bridge networks for convenience. That can create weak isolation and messy service communication over time. Strong Docker architecture habits usually begin with small everyday decisions like these.
Frequently Asked Questions
Q1. Which Docker to install, AMD64 or ARM64?
Install AMD64 on Intel or AMD x86-64 systems, and install ARM64 on Apple Silicon or other ARM-based systems.
Q2. What are the 5 Docker components?
A simple 5-part breakdown is Docker Client, DockerDaemon, Docker Host, Docker Registry, and Docker Objects like images, containers, networks, and volumes.
Q3. Is Docker for backend or frontend?
Docker is for both backend and frontend, because it packages and runs applications and their supporting services in containers.
Q4. What does 0.0.0.0 mean in Docker?
In Docker, 0.0.0.0 means the published port is listening on all network interfaces of the host, not just localhost.
Conclusion
Docker architecture looks simple from the outside, but it is thoughtfully layered underneath. The main Docker components include the client, daemon, registries, runtimes, networks, and volumes. The client accepts commands, the daemon manages objects, registries store images, and runtimes launch isolated processes. Networks connect services, while volumes protect data that must survive restarts. Inside Docker, Linux namespaces and cgroups provide isolation and resource control. That combination makes Docker practical for development and production platforms.
