Introduction
Every day, we send and receive data without even thinking about it. You send WhatsApp messages, join Zoom meetings, open web pages, and pay. You can also scan QR codes to make payments quickly and easily. These things happen because devices can share information with each other easily. This sharing of information between devices is called data communication. In simple words, it means sending information from one device to another. The medium it uses can be Wi-Fi, cables, or mobile networks to carry the data properly.
Data communication is also one of the core concepts in networking and is widely covered in foundational programs like the PyNet Labs CCNA training, where understanding how data moves across networks is essential.
In this article, we will discuss Data Communication, the components of data communication, the types of data communication, and how data communication in computer networks works in real life.
Before getting into more details, let us first understand what data communication is.
What is Data Communication?
Data Communications is the method of sharing data across two or more devices. This data can be video, audio, text, pictures, numbers, or commands. One device transmits the data. A different device receives it. Between them, there is a channel or path that is used to transfer the data. Additionally, there are rules that assist both devices in understanding each other.
An easy example would be an email. You type in a message from your laptop and then click send. Your device will become the sender. Email itself becomes the content. The internet becomes the route. The device of the other person becomes the recipient. Protocols ensure that the message is sorted, delivered, read, and routed in the correct format.
Why Data Communication is Important?
If it isn’t Data Communication, modern digital life would stop.
There would be no browsing, streaming, or online shopping. No cloud storage and no remote working or online courses. Devices need a way to exchange data fast and correctly. Networks allow this. It also cuts down on the time as well as the effort.
A business can transmit information from one department to the next in a matter of minutes. A hospital can move patient data between systems. Banks are able to process digital payments in real-time. The home user can stream a movie online without having to store it on the local device.
These are two different uses but the fundamental principle is the same: data travels from one location to another in a secure and user-friendly format.

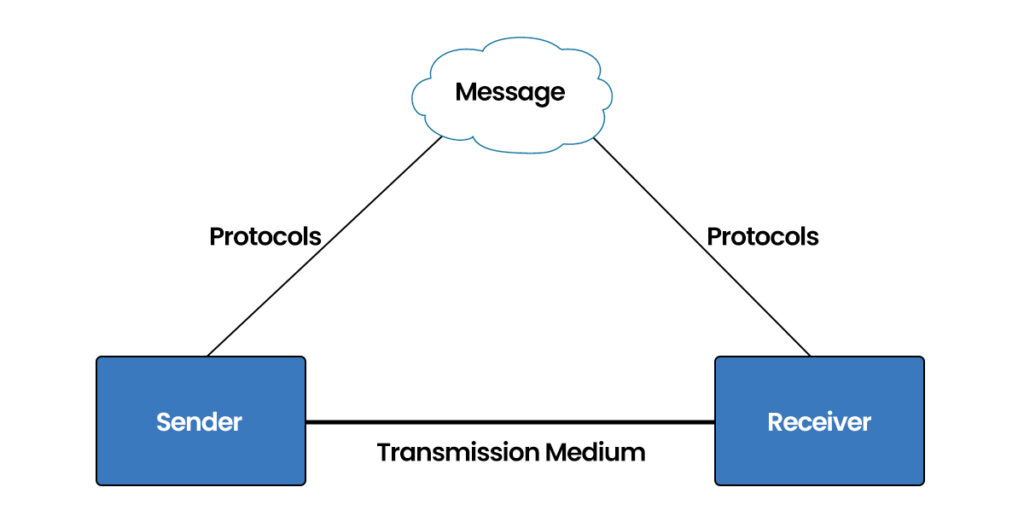

Components of Data Communication
To fully understand the topic, you must be aware of the Components of Data Communication. It includes:
Message
It is the actual information that is being transmitted. It could be video, text, audio, or any other type of data.
Sender
The device that generates and transmits the data. This could include a laptop, computer, cell phone, server, or ATM printer.
Receiver
Receivers are the devices that receive the information. It receives, stores, or processes the message when it is received.
Transmission Medium
This is the path that carries the information. It could be a cable or fiber line, a wireless signal, a radio wave, or a mobile network. The standard descriptions categorize them into wireless and wired media.
Protocol
A protocol is a set of rules that regulates the way information is structured, transmitted, or received, and how it is understood.
Imagine these five elements as an ordinary exchange between two persons.
- One person speaks.
- One person listens.
- There is a message.
- There is a path for the message.
- And there is a language both can understand.
Data Communication in Computer Network
Let’s now understand the concept of data communication in computer network in a way that is easy to understand.
The computer network refers to a collection of devices that are connected and share resources as well as data. These devices can be printers, computers, phones, servers, switches, routers, or some even use cloud-based systems. Computer networking connects devices so that they can share information via wireless or physical connections.
When data exchange occurs within a computer network, the process typically is as follows:
- A device creates data.
- The data is divided into small pieces.
- The network routes these units along a route.
- Switches and routers help to transfer data in the correct direction.
- Device that receives the data and converts it back into a usable format.
IP manages the routing and addresses of the packets to ensure they can move across networks and reach to the correct destination. TCP/IP specifies how information is transferred from sender to recipient across networks.
Let’s take a look at a real example.
When you browse a site using your smartphone, the phone transmits a request via wireless data or Wi-Fi. The request is sent to multiple networks. It then reaches the server of the website. The server then sends the data back. Your phone gets it and displays the information on the screen. It’s like it’s happening in a flash. In the background, this is data exchange via computer networks. The use of protocols and routing makes this journey possible.
Network professionals are concerned about things like speed, flow of packets, and protocol behavior, as well as latency and routing. The fundamental idea is simple. But the systems that underlie it could be extremely complex.
Types of Data Communication
Let’s now take a look at the different types of data communication.
The most common way to explain this is by the direction of data flow. In simple terms, how does data move between two devices?
There are three types of data communication, these are:
- Simplex,
- Half-duplex
- Full-duplex.

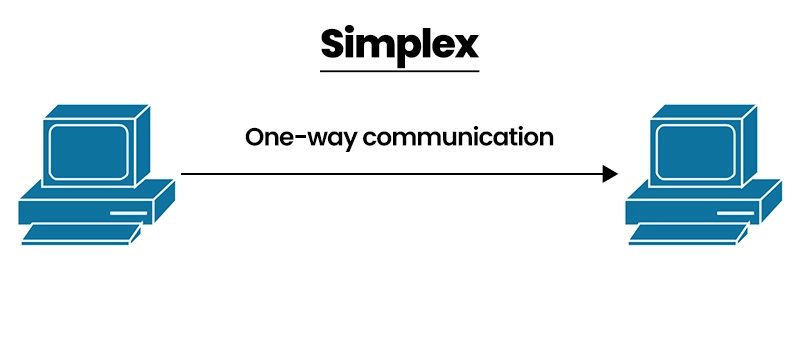

1. Simplex Communication
In simplex communication, information flows in a single direction. Simplex is a one-way communication.
- One device sends.
- The other device is receiving.
- There is no return route to the same communication flow.
A typical example is a keyboard that sends information to the computer or an older display system that receives output.
Simplex is a great option when just one-way data flow is required. It is simple with low-cost setup. However, it’s not the best option for interactive systems in which both parties need to communicate.

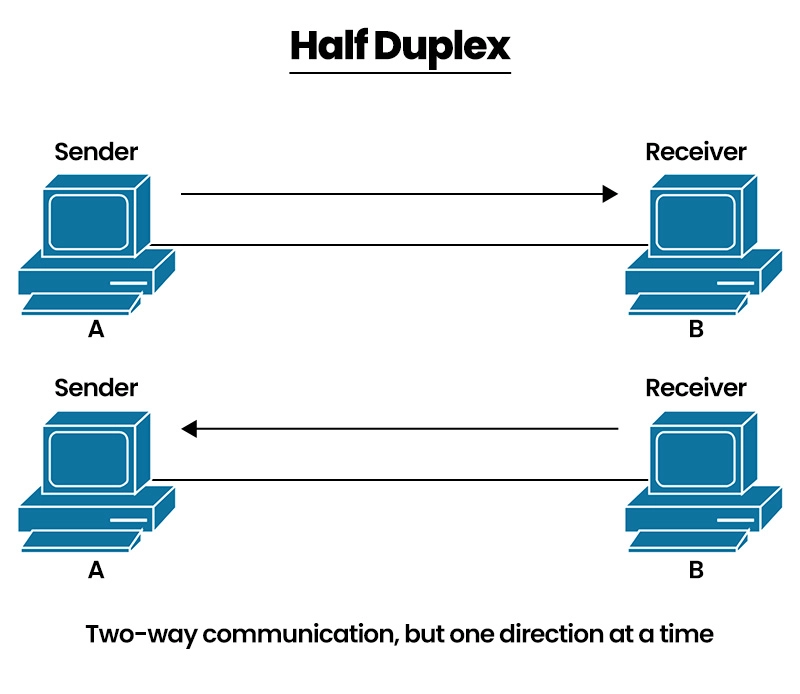

2. Half-Duplex Communication
In half-duplex communications, both devices are able to send data and receive it; however, not at the same time. They alternate, i.e., take turns while communicating.
The most common example is an electronic walkie-talkie. One person speaks first. The other person then responds. Both parties can send messages, and only one can communicate at once.
It is two-way communication, but one direction at a time.
Half-duplex is a good option in environments that have a low volume of traffic or when two-way communications do not have to occur simultaneously. It’s cheaper than full-duplex in certain situations, but it’s also slower.
3. Full-Duplex Communication
In full-duplex communications, two parties can transmit and receive data simultaneously.
An instant phone call can be a great scenario. You can talk and hear the other person. Full-duplex allows stations to transmit and receive data at the same time.
This kind of communication is more efficient and more fluid. This is the reason it is a common feature in the latest network and in real-time systems. It helps reduce waiting time and provides greater performance.
Wired and Wireless Data Communication
Another useful way to understand Data Communication is by the medium used.
Wired Communication
The wired communication system uses physical cables. They can include:
- Twisted pair cable
- Coaxial cable
- Fiber optic cable
Wired connections are commonly used when speed and stability are the most important factors. Offices, data centers, and enterprise networks utilize wired connections as they’re reliable, and can handle massive quantities of information.
Wireless Communication
Wireless communication transmits data over the air. It can use:
- Wi-Fi
- Radio waves
- Mobile networks
- Infrared
- Microwaves
Wireless communication is popular because it allows the freedom to move. You can use your mobile tablet or laptop without connecting it to an electrical cable. Networking works with both wireless and physical connections.
In reality, the majorities of devices use wireless and wired methods in conjunction. Your router could be connected to the Internet via wired connections, whereas the phone is connected to it via Wi-Fi.
Real-Life Examples of Data Communication
Sometimes, the most effective way to learn is through example.
Here are some common instances from Data Communication:
- Sending an email
- Video calls
- A movie you want to watch on Netflix
- Transferring files into Google Drive
- Printing using Wi-Fi
- Utilizing UPI apps, a UPI application or banking online
- Connecting a smart watch to an iPhone
- Cloud-based software can be used within an office
- Scanning QR codes for payment
- Sharing files among computers
All of these actions are dependent on one device transmitting data, and another receiving it over a network and an established set of rules. Networks and protocols are the foundation for services like remote access, file transfer and digital communications.
Common Problems in Data Communication
Data Communication sounds smooth in the abstract, but in reality, systems aren’t without their own challenges.
Common issues include:
- Slow speed
- Signal loss
- Network congestion
- The wrong settings
- Interference or noise
- Broken cables
- Weak Wi-Fi
- Protocol mismatch
- Delayed packet delivery
These issues could impact the speed at which data moves and whether it reaches its destination in the proper format. Protocols are in place to help make communication efficient, and routing and handling packets are crucial in ensuring that data is delivered to the right destination. If one component of the chain fails, the quality of communication decreases.
This is the reason why companies invest in better network designs and stronger hardware, as well as good routers and switches, in addition to secure and reliable systems.
Frequently Asked Questions
Q1. What do you mean by data communication?
Data communication is the sharing of data between devices through wires, signals, or networks safely.
Q2. What are the 5 basic components of data communication?
The five basic parts are sender, receiver, message, medium, and rules called protocols used.
Q3. What are the 4 types of communication networks?
The four network types are PAN, LAN, MAN, and WAN, based on size and area.
Q4. Why is data communication important?
Data communication is important because it helps people share information quickly and makes work easier.
Conclusion
So, what is Data Communication? It’s just the way devices exchange information.
But inside that simple idea, there is a full world of networks of cables, network signals, routers, protocols, and packets. The modern digital world is dependent on connected devices sharing information using common rules for wireless or wired networks.
