What is CSMA in Computer Network?

Introduction

CSMA in computer network is a channel access method to share a common medium. It helps many devices send data on the same link without a central controller. Before sending, a device listens to check if the channel is busy. If it is free, it transmits. If it is busy, it waits and tries again using a random backoff time. This lowers the chance of collisions, but it cannot remove them fully. CSMA is the base idea behind classic Ethernet (CSMA/CD) and Wi-Fi style access (CSMA/CA).

In this blog, we will discuss what CSMA in computer network is, CSMA full form, its purpose, functioning, types (CSMA/CD and CSMA/CA), and its advantages and disadvantages.

Before getting into more details, let us first understand what CSMA is.

What is CSMA in Computer Network?

CSMA in computer network is a Media Access Control (MAC) protocol. CSMA full form is Carrier Sense Multiple Access. In the OSI model, CSMA functions at Layer 2 (the Data Link Layer). This is the layer responsible for figuring out how data actually gets onto the physical “wire” or through the airwaves.

But why do we even need a controller? Think about how networks evolved. In the early days, we used “bus topologies” where every computer was literally plugged into one long, shared cable. Today, we share the wireless spectrum (Wi-Fi). Because the medium is shared, only one device can successfully “own” the frequency or the wire at any given microsecond.

CSMA in computer network designs provides the logic that allows dozens of devices to share one path without turning the network into a permanent traffic jam.

CSMA Full Form and Historical Context​

To understand where we’re going, we have to look at the CSMA full form: Carrier Sense Multiple Access. Let’s understand in detail.

1. Carrier Sense: This is the listening stage. The device senses the carrier (the signal on the cable or air) to determine whether or not the carrier is in use.
2. Multiple Access: This takes into consideration the fact that there are many nodes (phones, laptops, servers) that are competing to use the same medium at the same time.

Prior to CSMA’s invention, there was the protocol known as ALOHAnet, which was created by the University of Hawaii. ALOHA was basically an attempt to create the “Wild West” of networking, a device that simply sent data when it felt it was appropriate. In the event of a collision, the device would try again in the future. As you’d expect, this proved to be incredibly inefficient when more than a few users were added to the system.

CSMA was born in its evolution from ALOHA by adding the initial stage: checking to see whether the line is not busy before pressing the send button.

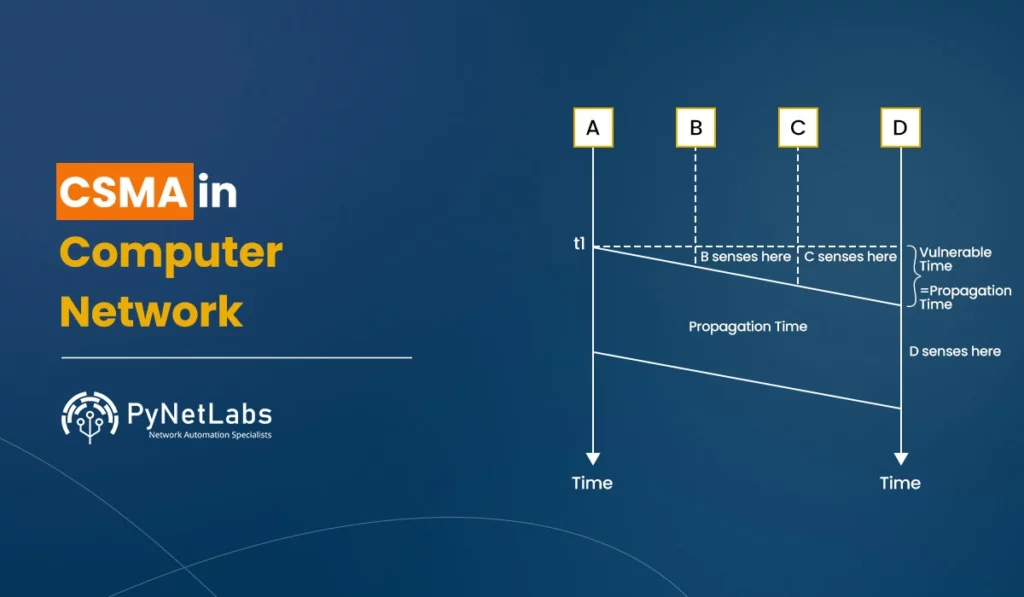

It’s an easy modification, but it has revolutionized the way we think about sharing resources. By sensing the carrier first, we drastically reduce the “vulnerable time”, the window where a collision is likely to occur.

How Does CSMA Work?

The operational logic of CSMA in a computer network is often called LBT (Listen Before Talk). It’s a simple, four-step logical chain that happens in the blink of an eye:

Step 1: The Urge to Send. A node (like your laptop) has a data packet ready to go.

Step 2: Sensing the Medium. Before sending, the laptop “listens” to the network. It’s looking for a carrier signal.

Step 3: The Decision.

• If the medium is Busy: The node waits. It might wait a set amount of time or use a “persistence strategy” (which we’ll cover in a moment) to decide when to check again.
• If the medium is Idle: The node thinks, “Great, it’s quiet,” and begins transmitting the data.

Step 4: The Reality Check. Even though the node listened, there’s still a tiny chance another node miles away (in network terms) started talking at the exact same time.

Persistence Methods in CSMA

When a device realizes that the medium is busy, it must make a choice about how to act and wait until its time comes. This is where the methods of persistence come in. The strategies determine how the node is being characterized- is it an aggressive node, a cautious one, or somewhere in the middle?

1. 1-Persistent CSMA

In this technique, the machine is extremely aggressive. When the line is busy, it does not walk away; it stares at the channel and stares. It sends the moment it feels that the medium is idle.

Imagine waiting to use a microwave in a shared office. You are standing before the door with your eyes stuck to the timer. You are throwing your plate in the very microsecond it beeps, and the last customer is clearing out. It is efficient in the sense that there is no dead time on the line, yet it is a nightmare when it comes to collisions. When two individuals are standing there waiting, then they both jump simultaneously and injure each other.

2. Non-Persistent CSMA

A non-persistent device is far more relaxed. When it feels that the line is busy, it does not sit and wait. Rather, it pulls back and waits randomly, after which it rechecks again.

This would be equivalent to finding a parking space in a crowded parking lot. When you notice that someone is already where you wanted, then you do not park your car in the middle of the road and wait till they move away. You run around the block and repeat your luck five minutes later. This minimizes collisions by a big margin, but is frustratingly slow since it may take you four minutes to get back to the spot where you left it.

3. p-Persistent CSMA

This is a middle-ground approach usually used in “slotted” networks where time is divided into specific intervals. If the channel is idle, the device doesn’t just go; it rolls a virtual die. With a probability of p, it sends the data. With a probability of q (which is 1 – p), it waits for the next time slot and rolls again.

Summary Table of Persistence Methods

Types of CSMA Protocol

Carrier Sense Multiple Access (CSMA) protocols coordinate access to a shared communication channel by sensing the medium before transmitting.
The main types are CSMA/CD (collision detection, commonly used in wired Ethernet) and CSMA/CA (collision avoidance, commonly used in wireless networks).

CSMA/CD: What Happens When Things Go Wrong?

We use CSMA/CD (Collision Detection) in wired Ethernet (in the case of legacy systems with hubs). We can listen and talk simultaneously because we are using copper wires.

1. The Detection Phase: When an Ethernet station is transmitting, it does not simply fire and forget. It even listens to the wire whilst speaking. When it receives a signal voltage greater than its own (some other signal has overlapped with it), it can tell that a collision has taken place.

2. The Jam Signal: Spreading the Bad News. The instant the collision is detected, the device does not simply stop. Think of this as a loud, digital whistle that tells everyone on the line: “Hey, there’s been a wreck! Stop whatever you’re doing and discard the garbage data currently on the wire.” This ensures that every node, even those far away, realizes the channel is currently compromised.

3. Binary Exponential Backoff: After the Jam Signal, the devices don’t just try again immediately. If they did, they’d just collide again. Instead, they use an algorithm called Binary Exponential Backoff.
After the first collision, the device picks a random wait time from a small range (0 to 1 slots).

• After the first collision, the device picks a random wait time from a small range (0 to 1 slots).
• If they collide again, the range doubles (0 to 3).
• Collision again? The range doubles again (0 to 7). By exponentially increasing the range, the odds of two devices picking the exact same microsecond to retry become statistically tiny.

CSMA/CA: Why Wireless Networks Play by Different Rules

In the world of wireless communication, we use CSMA/CA (Collision Avoidance). Why the change? Because wireless radios are generally half-duplex—they cannot “hear” a collision while they are busy transmitting. If you’ve ever tried to listen for a whisper while shouting through a megaphone, you understand why Detection (CD) is impossible here.

The Waiting Game: DIFS, SIFS, and the Contention Window

In a CSMA environment for Wi-Fi, silence is calculated through mandatory pauses:

• DIFS (Distributed Interframe Space): The mandatory “quiet period” before a device can even consider transmitting.
• The Contention Window: A random countdown that prevents five devices from all starting at the exact same moment the DIFS ends.
• SIFS (Short Interframe Space): A very short wait reserved for high-priority responses like Acknowledgments (ACKs). Because SIFS is shorter than DIFS, an ACK will always “cut in line” to confirm a successful receipt.

CSMA/CD vs. CSMA/CA: A Comprehensive Comparison

To learn more about the differences between CSMA/CD and CSMA/CA, check out our post: CSMA/CD vs CSMA/CA.

Advantages and Disadvantages of CSMA Protocols

Advantages of the CSMA protocol:

• Simplicity: CSMA does not involve a central master controller to provide authorization to all the devices. It is decentralized and simple to execute.
• Scalability: It is effective in networks with bursting traffic.
• Efficiency: It has extremely low latency under low to medium loads.

Disadvantages of the CSMA protocol:

• Performance Degradation: With the increase of devices, the likelihood of collision (and the overhead to prevent the same) grows exponentially.
• The Hidden Node Problem: As discussed, wireless environments struggle when nodes can’t see each other.
• Distance Limitations: Because of propagation delay, the efficiency of CSMA drops as the physical distance of the network increases.

Frequently Asked Questions

Q1. What is meant by CSMA?

CSMA means Carrier Sense Multiple Access. A device listens to the channel before sending. If the channel is busy, it waits and tries again later.

Q2. What are the 4 types of network based system technology?

The four types of network based system technology are LAN, PAN, MAN, and WAN.

Q3. What is Aloha and its types?

ALOHA is a random access method where nodes send when ready. Types are Pure ALOHA and Slotted ALOHA, which use time slots to reduce collisions.

Q4. What is CSMA CA vs CSMA CD?

The primary difference is their approach to collisions. CSMA/CD (Collision Detection) is used in wired networks to detect a collision while it is happening and stop. CSMA/CA (Collision Avoidance) is used in wireless networks to perform extra “handshakes” and wait times to prevent a collision from ever occurring in the first place.

Conclusion

CSMA has been the bedrock of networking for decades, but we are reaching its limits. In High-Density environments such as a full football stadium, the listen before talk strategy will result in a death spiral where devices will spend more time waiting and backing off than transmitting data.

This is why Wi-Fi 6 and Wi-Fi 7 are moving toward OFDMA (Orthogonal Frequency Division Multiple Access). Instead of one device owning the whole channel at a time, the channel is carved into small sub-channels, allowing the Access Point to talk to multiple devices simultaneously.

However, for the billions of IoT sensors, smart home devices, and legacy systems, the fundamental logic of CSMA in computer network remains as vital as ever.
